Features and Applications of the Shengyi S1000-2M PCB Material

Have you been searching for some reliable information about the Shengyi S1000-2M PCB material? You are in the right place.

In this article, we are going to discuss the features, properties, applications, etc of the Shengyi S1000-2M PCB material. Furthermore, we will be drawing some comparisons between the Shengyi S1000-2 and the Shengyi S1000-2M PCB material.

If you wish to be a pro in this area, why not join us as we take you through the important things you should know concerning the Shengyi S1000-2M PCB material.

Features of the Shengyi S1000-2M PCB Material

You must be extremely keen whenever you are identifying the Shengyi S1000-2M PCB material. This is to help you avoid any confusion.

Also, with these features in play, you will have more knowledge regarding the right material or laminate type. Below are the major features of the Shengyi S1000-2M PCB material.

High UV Resistance and Tg

Another great feature of the Shengyi S1000-2M PCB material is its high temperature for glass transition and UV resistance. This Tg value can reach highs of about 170 degrees centigrade.

Asides from this, there are special features, which aid in blocking UV ray effects on the PCB.

Lead Free Compatibility

The Shengyi S1000-2M PCB material works fine with lead-free laminate materials. This makes them much safer when using them.

This also means that you will make use of the Shengyi S1000-2M PCB material without having to worry about environmental pollution or hazardous substances.

High Heat Resistance

The Shengyi S1000-2M PCB material is useful in any high-temperature application. Using this material, you will have no worry of any destruction.

One reason for this is that the Shengyi S1000-2M PCB material possesses high heat resistance features, which helps in maintaining their stability.

Excellent anti-CAF Performance

The Shengyi S1000-2M PCB material also has excellent anti-CAF performance. This prevents any processes involved in electrochemical corrosion therefore increasing the general durability.

Low Water Absorption

Another great feature of the Shengyi S1000-2M PCB material is its low water absorption rate. With this feature, water will not penetrate it. What we mean is that the Shengyi S1000-2M PCB material is useful in moisture-laden applications with less worry.

Great Through-Hole Reliability

You will have lots of confidence that you can easily drill some through holes in the Shengyi S1000-2M PCB material during component mounting.

Furthermore, this feature makes it possible for you to drill different hole sizes and types into the Shengyi S1000-2M PCB material. This is what makes them very compatible.

Lower Z-axis CTE

In addition to other features, the Shengyi S1000-2M PCB material has a lower coefficient of thermal expansion at the Z-axis. The CTE for the Z-axis at 50 to 260 degrees centigrade stands at 2.4%.

After Tg, the CTE stands at 208 ppm per degrees centigrade, while before Tg, it stands at 41 ppm per degrees centigrade. This shows how much the Z axis of the Shengyi Q160 PCB will contract or expand when cooled or heated.

What are the Applications of the Shengyi S1000-2M?

In line with the features of the Shengyi S1000-2M PCB material, this material is useful in performing different functions on several applications. Below are some of the major applications of the Shengyi S1000-2M.

Computer Equipment

The Shengyi S1000-2M PCB material is very important in modern equipment for communication like cell phones and computers.

This is why it is possible to have cell phones that are waterproof, which will function effectively under wet or water conditions.

Automotive Industry

The Shengyi S1000-2M PCB material is also useful in automobiles, which you move through different places. This PCB material helps in improving the automobile features performance. It also protects them from any possible harm.

 Routers

Also, you can apply the Shengyi S1000-2M PCB material in router equipment like those for internet connection.

Special features are available like dust and water resistance. This makes them great materials for use in environments that are harsh.

 High Aspect Ratio

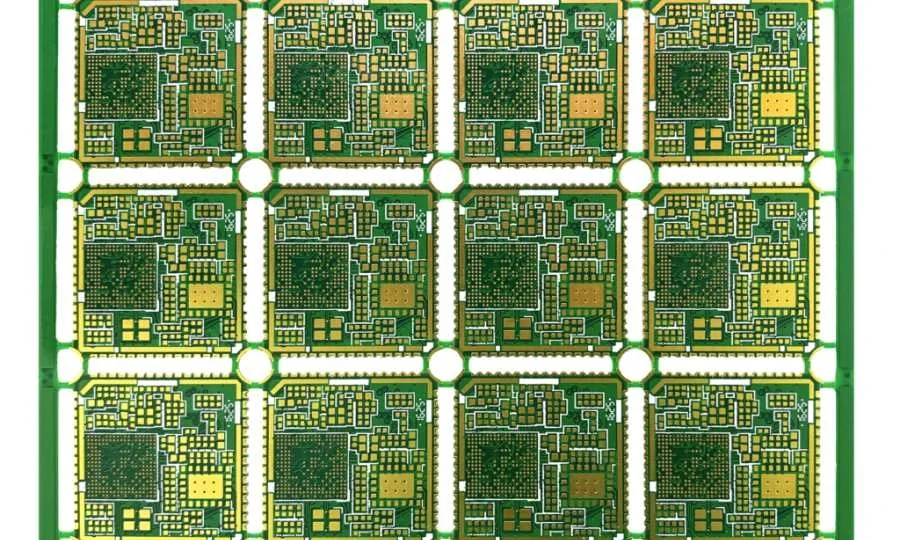

The Shengyi S1000-2M PCB materials are useful in high aspect ratio applications. This holds most especially in multi-layer printed circuit boards.

What Materials are best for Manufacturing the Shengyi S1000-2M PCB Material?

There are some materials necessary for the manufacturing of Shengyi S1000-2M laminates. Also, these materials have different properties, and this is why they perform differently as well.

These materials include

Comparing Shengyi S1000-2M Vs Shengyi S1000-2: What are the Similarities

The Shengyi S1000-2M PCB raw material and the Shengyi S1000-2 have some similarities. However, you can choose any of them. This depends on which of the two fits the requirements for your application.

Below is a comparison between the Shengyi S1000-2 and the Shengyi S1000-2M PCB material or laminates.

Anti CAF capability

Both the Shengyi S1000-2 and the Shengyi S1000-2M PCB material possess anti-CAF capabilities. This prevents any processes involved in electrochemical corrosion therefore increasing the general durability.

Lead Free Compatibility

It is obvious that both the Shengyi S1000-2 and the Shengyi S1000-2M PCB material are very compatible to applications that are lead free.

Through Hole Reliability

The Shengyi S1000-2 and the Shengyi S1000-2M PCB material possess excellent through-hole reliability capabilities. This ensures that the PCB components are mounted excellently.

Quality Certifications of the Shengyi S1000-2M PCB material

Also, there is a need for you to know the importance of making use of high-quality Shengyi S1000-2M PCB material.

For example, the Shengyi S1000-2M PCB material is very durable and will surely offer a better performance in contrast to the low quality ones.

When you look at its quality certification, determining the Shengyi S1000-2M PCB material’s quality will be easy. Below are some of the major quality certifications to consider

  • TS-16949
  • IPC
  • RoHS
  • UL
  • MIL-PRF-31032
  • ISO AS9100D and 9001:2015
  • IATF16949:2016
  • 31032 GI 8-layer

Conclusion

We hope we have done justice to explaining what the Shengyi S1000-2M PCB material offers. Also, we talked about the various properties, applications, and quality certifications. By now, you should be an expert on this topic.
