FPGA/SoC + DDR PCB Design Rules: Basic Guidelines You need to Know | RAYMING PCB


Field-Programmable Gate Arrays (FPGAs) and System-on-Chip (SoC) devices, combined with Double Data Rate (DDR) memory, form the backbone of many high-performance computing systems. Designing printed circuit boards (PCBs) for these complex components requires a deep understanding of various design rules and best practices. This article will explore the essential guidelines for FPGA/SoC and DDR PCB design, helping engineers create reliable and high-performance systems.

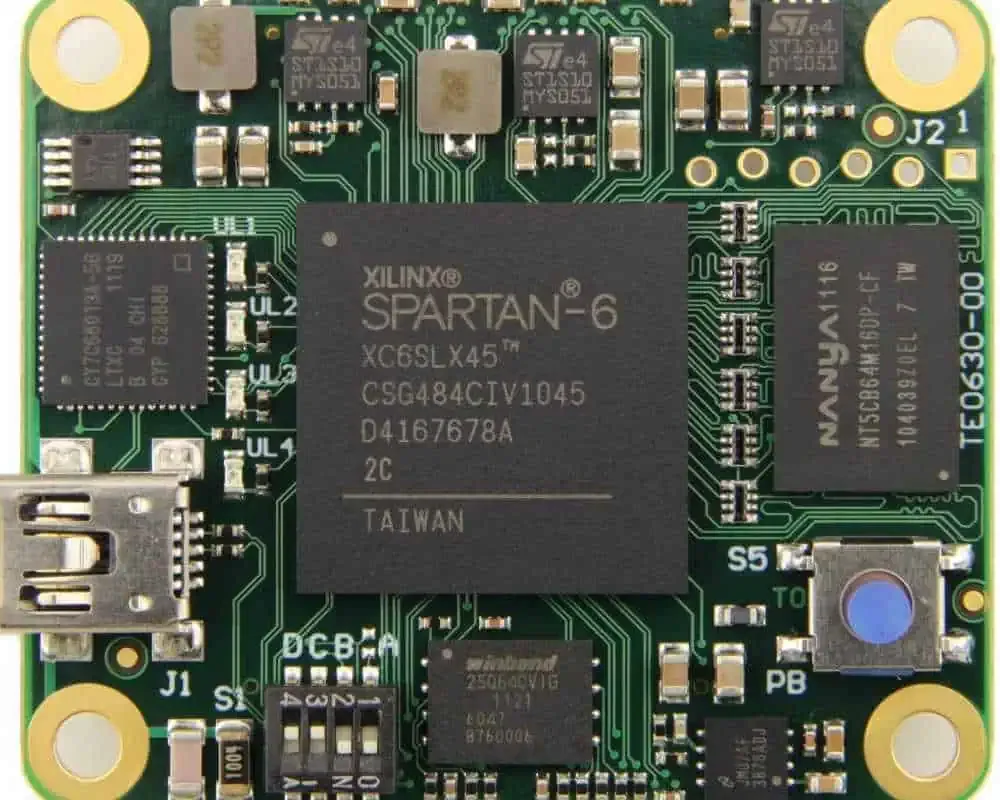

Understanding FPGA/SoC and DDR Memory

FPGA and SoC Basics

FPGAs are programmable logic devices that offer flexibility and high performance for a wide range of applications. SoCs integrate multiple components, including processors, memory, and peripherals, onto a single chip. Both FPGAs and SoCs are commonly used in applications requiring high-speed data processing and complex logic implementations.

DDR Memory Overview

DDR memory is a type of synchronous dynamic random-access memory (SDRAM) that transfers data twice per clock cycle, effectively doubling the data transfer rate compared to standard SDRAM. DDR memory is widely used in conjunction with FPGAs and SoCs due to its high bandwidth and relatively low latency.

PCB Stack-up Considerations

multilayer pcb stackup

Layer Stack-up Design

The PCB stack-up is crucial for signal integrity and overall performance. A typical high-speed FPGA/SoC design with DDR memory often requires a multi-layer board. Here’s a recommended stack-up:

1Signal (Top)
8Signal (Bottom)

This stack-up provides good signal integrity, power distribution, and EMI performance.

Impedance Control

Maintaining consistent impedance is critical for high-speed signals. Common impedance values for FPGA/SoC and DDR designs include:

Signal TypeTypical Impedance
Single-ended50 Ω
Differential100 Ω

Work closely with your PCB manufacturer to achieve the desired impedance values through proper trace width and dielectric thickness calculations.

Power Distribution Network (PDN) Design

Achronix FPGA

Power Plane Design

Proper power distribution is essential for FPGA/SoC and DDR designs. Follow these guidelines:

  1. Use dedicated power planes for different voltage levels.
  2. Implement split planes to isolate noisy and sensitive circuits.
  3. Place decoupling capacitors close to power pins.

Decoupling Strategy

Effective decoupling reduces power supply noise and improves signal integrity. Implement a multi-tiered decoupling approach:

Capacitor TypeValue RangePurpose
Bulk10 碌F – 100 碌FLow-frequency noise suppression
Mid-range0.1 碌F – 1 碌FMid-frequency noise suppression
High-frequency1 nF – 10 nFHigh-frequency noise suppression

Place smaller capacitors closer to the power pins and larger ones farther away.

Signal Routing Guidelines

General Routing Rules

Follow these general routing guidelines for FPGA/SoC and DDR designs:

  1. Maintain consistent trace widths for each signal type.
  2. Use 45-degree angles instead of 90-degree corners.
  3. Avoid vias on critical high-speed signals when possible.
  4. Route sensitive signals on inner layers between ground planes.

DDR Routing Considerations

DDR routing requires special attention due to its high-speed nature:

  1. Match trace lengths within signal groups (address, data, control).
  2. Implement fly-by topology for clock and control signals.
  3. Use serpentine routing for length matching when necessary.

Length Matching Requirements

Proper length matching is crucial for DDR signals. Here’s a typical length matching tolerance table:

Signal GroupMaximum Mismatch
Data Byte Lane±25 mils
Address/Control±100 mils
Clock Pairs±5 mils

Clock Distribution and Management

Clock Tree Design

Proper clock distribution is essential for synchronous operation:

  1. Use a balanced clock tree structure.
  2. Minimize the number of clock layers and vias.
  3. Implement controlled impedance for clock traces.

PLL and Clock Management

Utilize the FPGA/SoC’s built-in Phase-Locked Loops (PLLs) and clock management blocks:

  1. Generate multiple clock domains as needed.
  2. Use dedicated clock routing resources within the FPGA/SoC.
  3. Implement clock gating for power savings when possible.

RAYMING 1.3mm12 Layer 1-step HDI Rigid-Flex boards

(1 customer review)
Original price was: $1,890.00.Current price is: $1,860.00.

Product name: 12-layer 1-step HDI rigid-flex boards Board Material:IT-958G Thickness: 1.3mm Number of layers:12 layers PCB Minimum line width/spacing: 2.5/2.5mil Finished copper thickness: inner layer 1OZ, outer layer 1OZ Acceptance standard: IPC6012 CLASS 3 level Surface technology: immersion gold Dielectric constant: 3.8 Loss Factor: 0.0057 Application: New energy

Signal Integrity Considerations

Termination Strategies

Proper termination reduces signal reflections and improves signal quality:

Termination TypeUsage
SeriesSource termination for point-to-point connections
ParallelEnd termination for multi-drop buses
DifferentialMaintains signal integrity for differential pairs

Crosstalk Mitigation

Minimize crosstalk between adjacent signals:

  1. Increase spacing between critical signals.
  2. Use guard traces or ground planes between sensitive signals.
  3. Avoid parallel runs of high-speed signals on adjacent layers.

EMI/EMC Design Considerations

EMI Reduction Techniques

Implement these techniques to reduce electromagnetic interference:

  1. Use ground planes to provide a low-impedance return path.
  2. Implement proper shielding for sensitive circuits.
  3. Place ferrite beads on power inputs to filter high-frequency noise.

EMC Compliance

Design with EMC compliance in mind:

  1. Follow regulatory guidelines for your target market (e.g., FCC, CE).
  2. Implement proper grounding and shielding techniques.
  3. Consider EMC testing early in the design process.

Thermal Management

Thermal Considerations for FPGA/SoC

Proper thermal management is crucial for FPGA/SoC devices:

  1. Implement adequate copper pour for heat dissipation.
  2. Use thermal vias under high-power components.
  3. Consider adding heat sinks or forced-air cooling for high-performance designs.

DDR Memory Thermal Management

DDR memory also requires thermal consideration:

  1. Ensure proper airflow around memory modules.
  2. Use thermal simulations to identify potential hotspots.
  3. Consider using thermally enhanced packages for high-performance applications.

Design for Manufacturing and Testing

DFM Considerations

Implement Design for Manufacturing (DFM) principles:

  1. Follow your PCB manufacturer’s design rules.
  2. Use standard drill sizes and pad dimensions.
  3. Implement proper solder mask and silkscreen clearances.

Design for Testability

Incorporate testability features in your design:

  1. Add test points for critical signals.
  2. Implement boundary scan (JTAG) for FPGA/SoC programming and testing.
  3. Consider in-circuit test (ICT) requirements during component placement.


Designing PCBs for FPGA/SoC devices with DDR memory requires careful consideration of numerous factors, from stack-up design to signal integrity and thermal management. By following these basic guidelines, engineers can create robust and high-performance systems that meet the demanding requirements of modern applications.

Frequently Asked Questions (FAQ)

Q1: What is the recommended minimum number of layers for an FPGA/SoC design with DDR memory?

A1: For most FPGA/SoC designs with DDR memory, a minimum of 6 layers is recommended. However, complex designs often benefit from 8 or more layers to provide adequate signal routing, power distribution, and ground planes.

Q2: How critical is impedance matching for DDR signals?

A2: Impedance matching is crucial for DDR signals. Mismatched impedances can lead to signal reflections, degrading signal integrity and potentially causing data errors. It’s essential to work closely with your PCB manufacturer to achieve the target impedance values through proper trace width and dielectric thickness calculations.

Q3: What are the key differences in PCB design considerations between FPGA and SoC devices?

A3: While many design principles are similar, SoC devices often integrate more components (e.g., processors, memory controllers) on-chip, potentially simplifying some aspects of PCB design. However, SoCs may have more complex power requirements and thermal considerations compared to standalone FPGAs.

Q4: How do I determine the appropriate decoupling capacitor values and placement for my design?

A4: Decoupling capacitor selection depends on factors such as the power supply noise characteristics, target impedance, and frequency range of interest. Start with a multi-tiered approach using bulk, mid-range, and high-frequency capacitors. Use simulation tools and follow manufacturer guidelines for specific components. Place smaller capacitors closer to power pins and larger ones farther away.

Q5: What are some common pitfalls to avoid in FPGA/SoC and DDR PCB design?

A5: Common pitfalls include:

  1. Inadequate power distribution leading to voltage drops and noise.
  2. Poor signal integrity due to improper routing or termination.
  3. Insufficient thermal management causing overheating.
  4. Neglecting EMI/EMC considerations, resulting in compliance issues.
  5. Overlooking manufacturability and testability aspects, leading to production challenges.

Avoid these issues by carefully following design guidelines, using simulation tools, and consulting with experienced designers and manufacturers when needed.
