Panel Plating vs Hole Plating: Copper Location and Process Sequence
Panel plating and hole plating describe different aspects of copper deposition. Panel plating refers to processing exposed conductive areas across a panel; hole plating refers to the copper formed on hole walls. They are not mutually exclusive processes: a panel-plating operation can also deposit copper inside holes.
Separate the route from the measurement
Ask whether the discussion concerns full-panel versus selective pattern processing, or surface versus barrel copper. Those are two different comparisons. Pattern plating selectively builds exposed features through an imaging process, while a panel route treats the exposed conductive panel more broadly. Both can involve hole-wall copper.
The starting foil, seed layer, electrolytic deposits and subsequent etching all contribute to the finished structure. A process diagram should identify where each operation acts rather than implying that the entire board, including insulating areas, becomes permanently covered by finished copper.
Surface thickness does not prove barrel thickness
Current distribution and access to the hole affect deposition. The thickness measured on the surface can differ from that at the middle or other critical location in the barrel. A thick board with a small hole therefore needs more than a surface reading to support a hole-plating conclusion.
The worksheet calculates an entered barrel-to-surface thickness ratio. It is a descriptive comparison of two measurements, not a prediction of throwing power from chemistry or an acceptance limit. Keep the locations, sampling and measurement methods consistent.
Example: two numbers with different meanings
If illustrative measured copper is 25 micrometers at the selected surface location and 20 micrometers at the selected barrel location, their ratio is 80 percent. That does not mean every barrel location has 20 micrometers, nor that 80 percent is an approved criterion. A different sampling plan can produce a different ratio.
Record whether surface copper includes starting foil. Comparing total surface copper with only deposited barrel copper can answer a different question from comparing deposits alone. The tool labels its inputs as measured values and leaves that basis explicit in the review record.
Relate plating to fine-line design
Surface copper growth affects the material that later patterning and etching must control. The relationship between copper thickness, trace width and gap matters for dense designs. A change made to improve one hole structure can therefore influence outer-layer geometry elsewhere on the board.
Use track width and isolation gap tolerances for that dimensional review. For hole-depth constraints, use PCB aspect ratio. Neither page should be reduced to a single universal capability number.
Barrel-to-surface measurement ratio
Barrel-to-surface measurement ratio
Use the current inputs and keep the assumptions
Start with the example to understand the units and output, then use Clear for my inputs before entering your project. Example mode stays visibly labeled even if you edit its numbers. The form begins without a result so an illustrative value cannot be mistaken for an approved requirement. Every field must have a valid value; zero is accepted only where it has a meaningful role in the particular model.
Read the input notes before calculating. They identify the physical boundary and what is excluded. Keep the same unit convention across the drawing and worksheet. Changing an input invalidates the previous result and disables its download until you calculate again. This prevents an old number from appearing to describe a revised geometry.
The result is a screening record. A negative margin or an out-of-range condition identifies a question to resolve; a positive margin is not a manufacturing approval. Use the record with the actual drawing, material and project requirement. The model does not load CAD files, inspect images or retrieve private factory data.
Download the current result if it helps the discussion. The text includes the entered inputs, result and limitations. It stays on your device until you choose to attach or share it. Contact is a separate step; this page does not automatically populate the enquiry form or upload a file. Avoid confidential identifiers if you only need an exploratory calculation.
| Input | What to establish before using it |
|---|---|
| Review reference | Use a nonconfidential reference that lets you connect this calculation to the correct drawing revision. |
| Surface copper at defined location · micrometers | State whether this includes starting foil or only deposited copper. The choice changes the interpretation of the ratio. |
| Barrel copper at defined location · micrometers | Use a measurement at an identified hole-wall location. One value does not establish the minimum over every hole or every depth. |
Filling is a separate objective
Conformal copper on a wall leaves a cavity. Copper filling aims to occupy a defined cavity volume and may require a different process balance. A well-plated hollow barrel is not automatically a filled via. The blind-hole panel filling guide examines filling and surface growth together.
Similarly, final finishes such as immersion gold or tin are not the same operation as building the structural copper connection. State the required copper and finish separately so a quotation does not collapse them into one vague plating description.
What should the inspection plan say?
Identify the relevant hole types, surface and barrel measurement locations, required copper conditions and any thermal or electrical evidence. Distinguish minimum local requirements from averages. Ask how the selected samples represent the construction, especially when the panel contains several hole sizes and densities.
Can panel plating include hole plating? Yes. Does a surface copper target determine every barrel thickness? No. Can the ratio calculator approve the plating? No. Send the stackup, hole map and applicable copper requirements for a manufacturing review that addresses the actual locations, route and evidence rather than an oversimplified process label.
Measure the right copper in the right location
Copper descriptions should identify both location and origin. Starting foil, a seed layer, electrolytic surface copper, barrel copper, fill and cap can coexist in one structure. A thickness value is only interpretable when the measurement location and included layers are stated. Do not compare a total-surface reading with a deposit-only requirement without reconciling those definitions.
Distinguish averages from local requirements. A panel can have an acceptable average while a critical location differs. The relevant inspection plan should identify hole families, panel positions and section locations that represent the construction. The appropriate sampling and acceptance criteria come from the agreed specification and project scope; a calculator cannot select them from a layer count.
The process route connects hole integrity with surface patterning. Copper needed for one interconnect operation may also appear on exposed surfaces and change the later etching task. Review fine-line geometry when the route changes. Conversely, reducing surface copper to simplify etching must not silently compromise a required barrel, cap or wrap condition. A cross-section and process map make these dependencies visible.
For filled structures, assess the internal and external results separately. A smooth surface does not prove a complete internal fill. A filled cavity does not establish every surrounding trace dimension. Ask which observations demonstrate void-related conditions, surface shape, connection continuity and final dimensions. Keep each result linked to the structure and location it actually represents.
Supplier chemistry and equipment documentation can explain a mechanism or a process option. It does not establish that a particular factory uses that system or has qualified the same performance. Treat brochure examples as examples with conditions, and ask for relevant manufacturing evidence when a design depends on a demanding feature. Do not turn a third-party product specification into an unverified RAYPCB capability claim.
The quotation should identify the required construction, inspection and any separate qualification work. If alternatives are offered, compare their resulting copper geometry and acceptance scope before comparing price. Keep approved deviations with the release drawing. A well-defined plating review produces measurable copper requirements and an evidence plan, while leaving the qualified process controls with the responsible manufacturer.
Standards, source context and limits
Use the performance and acceptance documents named in the procurement agreement, including their revisions and any applicable addenda. A design guide explains choices; a product acceptance requirement defines what must be demonstrated. Neither a reference link nor a calculator result is a certification of the board or the supplier. Where a value is contractually important, check the controlled document and agree the measurement method with the responsible parties.

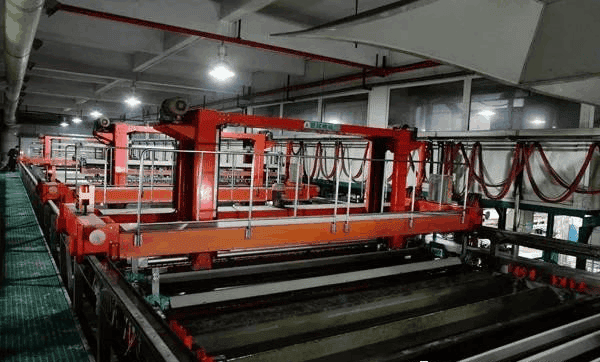

Examples on this page are deliberately labeled and are not advertised RAYPCB limits. Supplier documentation is linked for the specific material or process context it explains. Equipment photographs and cross-section examples show the subject; they are not current production, inspection or qualification records for your order.
