Original price was: $185.00.$182.00Current price is: $182.00.

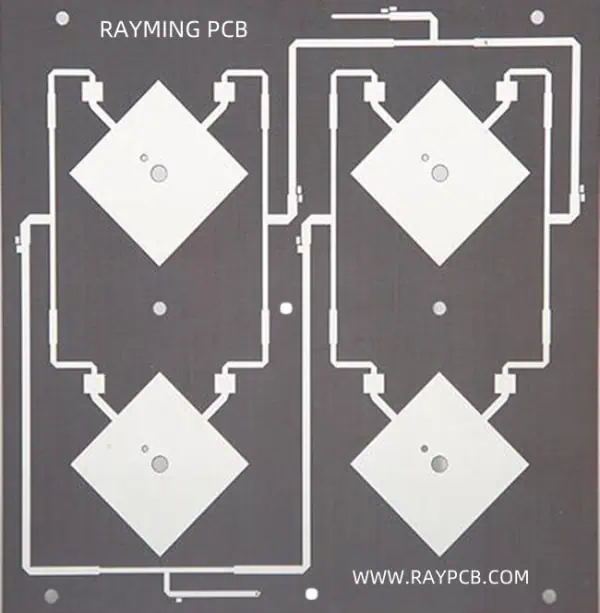

Product name：F4BM265 high-frequency PCB
Board Material：Wangling-F4BM265
Thickness: 0.65mm (media thickness 0.508mm)
Number of layers: 2 layers pcb
Minimum line width/spacing: 10/10mil
Finished Copper Thickness: Outer 1OZ
Acceptance standard: GJB9001C
Surface Finish: immersion silver
Dielectric constant: 2.65+/-0.05
Loss Factor: 0.0012
Usage: Confidential
