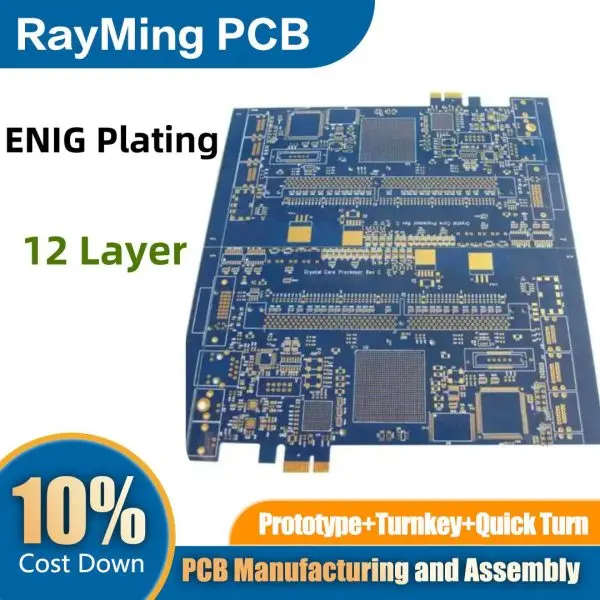

12 Layer ENIG (Electroless Nickel Immersion Gold) Plating PCBs represent the pinnacle of high-density, high-performance printed circuit board technology. These boards combine the extreme complexity of a twelve-layer design with the superior surface finish of ENIG plating.
Key features include:
- Twelve conductive layers enabling ultra-complex circuit designs and maximum component density
- ENIG finish providing excellent surface planarity, solderability, and extended shelf life
- Enhanced signal integrity and power distribution across multiple layers
- Superior EMI/RFI shielding capabilities
- Excellent thermal management properties
The ENIG plating offers a flat, uniform surface ideal for fine-pitch components and ball grid arrays (BGAs). It provides better corrosion resistance than bare copper and maintains solderability longer than other finishes.
These PCBs excel in applications requiring intricate circuitry, high-speed signal transmission, and stringent quality standards. They are commonly used in advanced telecommunications, high-end computing, aerospace, defense systems, and cutting-edge medical devices.
While more expensive than simpler alternatives, 12 Layer ENIG Plating PCBs offer unparalleled performance, reliability, and versatility, making them indispensable for the most demanding electronic designs pushing the boundaries of technology.
