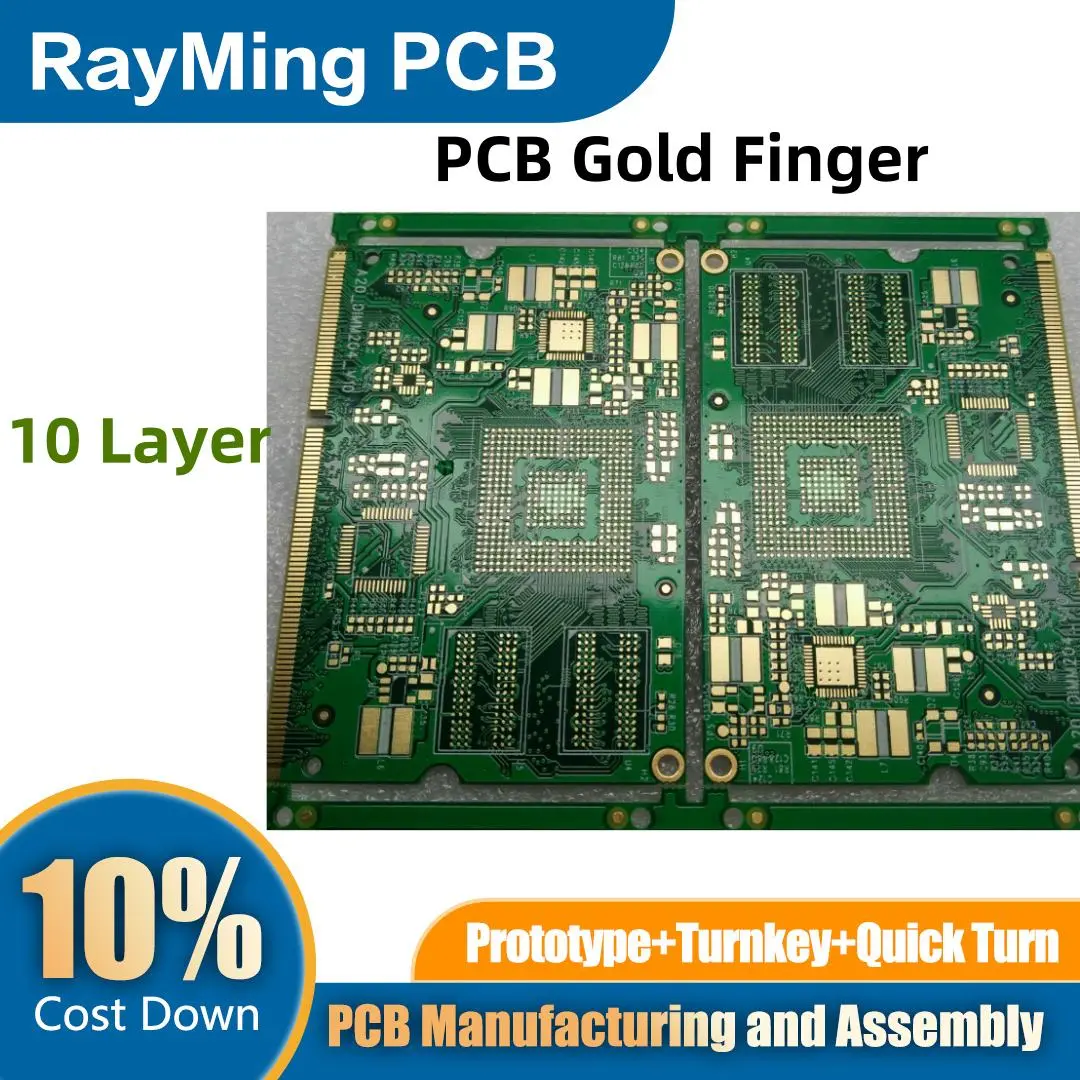

10 Layer Gold Finger pcb
10 Layer PCB Gold Finger technology represents the pinnacle of multilayer circuit board design, offering unparalleled complexity and performance. These boards feature ten distinct conductive layers, allowing for intricate circuit designs and high component density, while the gold-plated edge connectors ensure reliable, low-resistance connections.
Key advantages include:
- Increased circuit density, enabling more functionality in a compact form factor
- Improved signal integrity through optimized layer stackup and controlled impedance
- Enhanced power distribution and ground plane design
- Gold fingers for superior durability in high-insertion-count applications
- Excellent thermal management capabilities
The ten-layer structure facilitates advanced design techniques such as buried and blind vias, further increasing routing density. The gold-plated fingers, typically using ENIG (Electroless Nickel Immersion Gold) or hard gold plating, provide excellent wear resistance and oxidation protection.
These boards excel in high-speed digital applications, RF/microwave circuits, and complex mixed-signal designs. Common applications include high-end servers, telecommunications equipment, aerospace systems, and advanced medical devices. While costlier than simpler PCBs, 10 Layer PCB Gold Finger boards offer a compelling solution for cutting-edge electronic products requiring maximum performance and reliability.
