Printed Circuit Boards (PCBs) are the foundation of modern electronics, serving as the backbone for components in devices ranging from smartphones to industrial machinery. The selection of PCB materials is a critical decision that impacts both the cost and reliability of the final product. This comprehensive guide will explore the various factors to consider when choosing PCB materials, balancing cost-effectiveness with performance and longevity.

Understanding PCB Materials

Basic Structure of a PCB

Before delving into material selection, it’s essential to understand the basic structure of a PCB:

1. Substrate: The base material that provides mechanical support
2. Copper Foil: Conductive layers for electrical connections
3. Solder Mask: Insulating layer to prevent short circuits
4. Silkscreen: Labeling layer for component placement and identification

Common PCB Materials

Substrate Materials

1. FR-4 (Flame Retardant 4)
2. FR-2
3. CEM-1 and CEM-3
4. Polyimide
5. PTFE (Teflon)

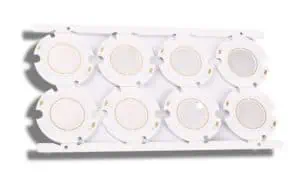

6. Aluminum
7. Ceramic

Copper Foil

1. Standard copper
2. High-Temperature Elongation (HTE) copper
3. Rolled Annealed (RA) copper

Solder Mask

1. Liquid Photoimageable (LPI) solder mask
2. Dry Film solder mask

Silkscreen

1. Epoxy-based inks
2. UV-curable inks

Factors Influencing PCB Material Selection

1. Application Requirements

The intended use of the PCB plays a crucial role in material selection:

• Consumer electronics
• Automotive applications
• Aerospace and defense
• Medical devices
• Industrial equipment

2. Environmental Considerations

• Operating temperature range
• Humidity resistance
• Chemical exposure
• UV resistance

3. Electrical Properties

• Dielectric constant
• Dissipation factor
• Insulation resistance
• Breakdown voltage

4. Mechanical Properties

• Flexural strength
• Dimensional stability
• Coefficient of Thermal Expansion (CTE)
• Moisture absorption

5. Thermal Management

• Thermal conductivity
• Glass transition temperature (Tg)
• Decomposition temperature (Td)

6. Manufacturing Process

• Ease of fabrication
• Drilling and routing characteristics
• Plating adhesion
• Solderability

7. Regulatory Compliance

• RoHS (Restriction of Hazardous Substances)
• REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)
• UL (Underwriters Laboratories) certification

8. Cost Considerations

• Raw material cost
• Processing cost
• Volume requirements

Comparative Analysis of Common PCB Materials

Here’s a table comparing the most common PCB substrate materials based on key properties and cost considerations:

Detailed Analysis of PCB Materials

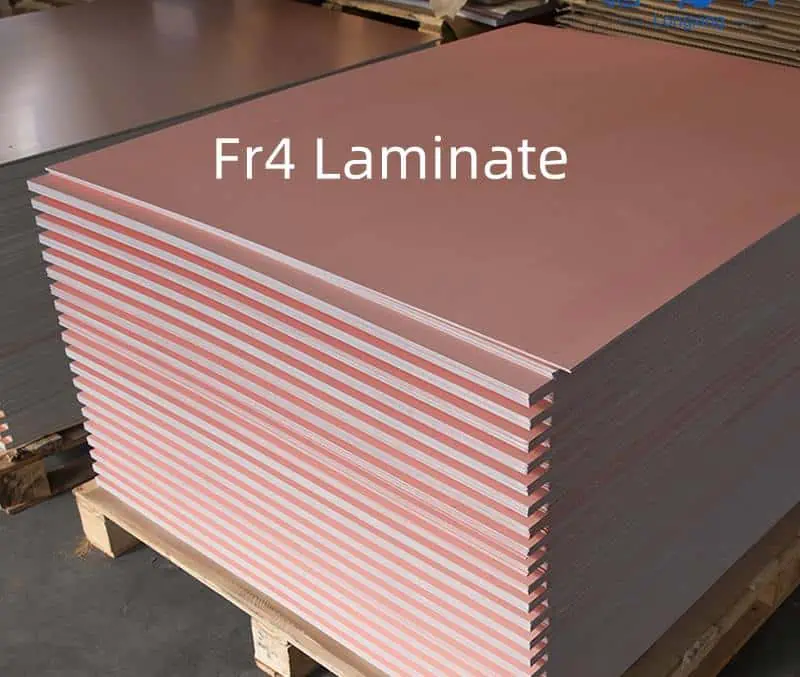

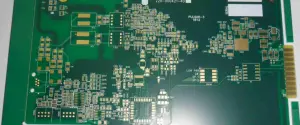

FR-4 (Flame Retardant 4)

FR-4 is the most commonly used PCB material due to its balance of performance and cost.

Advantages:

• Good electrical insulation properties
• Excellent mechanical strength
• Flame retardant
• Relatively low cost

Disadvantages:

• Limited high-frequency performance
• Not suitable for extreme temperatures

Cost Considerations:

FR-4 is generally the benchmark for PCB material costs. Its widespread availability and established manufacturing processes make it cost-effective for most applications.

Polyimide

Polyimide is known for its excellent thermal stability and flexibility.

Advantages:

• High temperature resistance
• Excellent dimensional stability
• Good flexibility
• Low outgassing in vacuum environments

Disadvantages:

• Higher cost compared to FR-4
• More challenging to process

Cost Considerations:

While more expensive than FR-4, polyimide’s unique properties can justify the cost in applications requiring high-temperature performance or flexibility.

PTFE (Teflon)

PTFE is primarily used in high-frequency and low-loss applications.

Advantages:

• Excellent high-frequency performance
• Very low moisture absorption
• Good chemical resistance

Disadvantages:

• High cost
• Challenging to process
• Lower mechanical strength compared to FR-4

Cost Considerations:

PTFE is significantly more expensive than FR-4, but its superior electrical properties at high frequencies can lead to better overall system performance, potentially offsetting the higher material cost.

Strategies for Balancing Cost and Reliability

1. Hybrid Material Designs

Combining different materials in a single PCB can optimize both cost and performance. For example:

• Using FR-4 for the core layers and PTFE for the outer layers in high-frequency applications
• Incorporating polyimide flex sections in an otherwise rigid FR-4 board

2. Material Grade Selection

Many materials, particularly FR-4, come in various grades with different performance characteristics. Selecting the appropriate grade can optimize cost without sacrificing necessary performance.

3. Thickness Optimization

Carefully considering the required board thickness can lead to cost savings without compromising reliability. Thinner boards may be sufficient for many applications, reducing material costs.

4. Volume Considerations

For high-volume production, investing in more expensive, high-performance materials may lead to long-term cost savings through improved yield and reliability.

5. Design for Manufacturability (DFM)

Optimizing the PCB design for the chosen material can improve manufacturing yield and reduce overall costs. This includes considerations such as:

• Appropriate trace widths and spacing
• Optimal via sizes and placement
• Efficient use of copper pours for thermal management

6. Supplier Relationships

Developing strong relationships with PCB manufacturers can lead to:

• Better pricing on materials
• Access to new and innovative materials
• Improved quality control and reliability

Emerging Trends in PCB Materials

1. High-Speed Digital Materials

As data rates continue to increase, new materials are being developed to support high-speed digital applications. These materials often feature:

• Lower dielectric constants
• Improved loss tangent characteristics
• Better impedance control

2. Environmentally Friendly Materials

With increasing focus on sustainability, new PCB materials are being developed that are:

• Halogen-free
• Biodegradable
• Made from renewable resources

3. Embedded Components

Materials that allow for embedding passive and active components within the PCB layers are gaining popularity, leading to:

• Reduced board size
• Improved signal integrity
• Enhanced thermal management

4. Additive Manufacturing Materials

As 3D printing technologies advance, new materials are being developed for additive PCB manufacturing, offering:

• Rapid prototyping capabilities
• Customization for small production runs
• Potential for novel geometries and designs

Case Studies: Material Selection in Different Industries

Consumer Electronics

In a smartphone design, a combination of FR-4 and high-speed laminates might be used:

• FR-4 for the main board
• High-speed laminates for the RF and high-speed digital sections

This approach balances cost with the high-performance requirements of modern mobile devices.

Automotive

For an engine control unit (ECU), material selection might include:

• High-Tg FR-4 for improved temperature resistance
• Polyimide flex sections for connecting to sensors in high-heat areas

This combination provides the necessary reliability in harsh underhood environments while managing costs.

Aerospace

A satellite communication system might use:

• PTFE-based materials for high-frequency sections
• Polyimide for its low outgassing properties in vacuum environments

The extreme reliability requirements and specialized performance needs justify the higher material costs in this application.

Frequently Asked Questions (FAQ)

Q1: How does the choice of PCB material affect the overall cost of my product?

A1: The choice of PCB material can significantly impact the overall cost of your product in several ways:

1. Raw material cost: High-performance materials like PTFE or polyimide are more expensive than standard FR-4.
2. Manufacturing cost: Some materials are more challenging to process, increasing fabrication costs.
3. Yield impact: Higher-quality materials may improve manufacturing yield, potentially reducing overall costs in high-volume production.
4. Long-term reliability: More durable materials can reduce warranty and replacement costs over the product lifecycle.

Consider the total cost of ownership, including potential failure rates and replacement costs, when evaluating material choices.

Q2: Can I use different materials for different layers in a multi-layer PCB?

A2: Yes, it’s possible and often beneficial to use different materials for different layers in a multi-layer PCB. This approach, known as hybrid construction, allows you to optimize performance and cost. For example:

• Using high-frequency materials like PTFE for outer layers where signal integrity is critical
• Employing standard FR-4 for inner layers to reduce overall cost
• Incorporating polyimide layers for areas requiring flexibility

However, be aware that mixing materials can introduce challenges in manufacturing, such as ensuring proper bonding between layers and managing different coefficients of thermal expansion.

Q3: How do environmental factors influence PCB material selection?

A3: Environmental factors play a crucial role in PCB material selection:

1. Temperature: High operating temperatures require materials with high glass transition (Tg) and decomposition (Td) temperatures.
2. Humidity: Environments with high humidity need materials with low moisture absorption to prevent performance degradation.
3. Chemical exposure: Some applications may require materials resistant to specific chemicals or solvents.
4. UV exposure: Outdoor applications might need materials with good UV resistance to prevent degradation.
5. Vibration and shock: Applications subject to mechanical stress require materials with good flexural strength and dimensional stability.

Always consider the worst-case environmental conditions your PCB might face when selecting materials.

Q4: What are the key electrical properties to consider when selecting PCB materials?

A4: The key electrical properties to consider include:

1. Dielectric constant (Dk): Affects signal propagation speed and impedance.
2. Dissipation factor (Df): Indicates the amount of signal loss in the material.
3. Insulation resistance: Measures the material’s ability to prevent current leakage.
4. Breakdown voltage: The voltage at which the material’s insulating properties fail.
5. Copper peel strength: Indicates how well the copper adheres to the substrate.

For high-speed or high-frequency applications, low and stable Dk and Df values across the frequency range of interest are crucial.

Q5: How can I ensure my PCB material choice complies with relevant regulations?

A5: To ensure regulatory compliance:

1. Stay informed about relevant regulations (e.g., RoHS, REACH, UL) for your target markets.
2. Work with reputable suppliers who provide documentation on material compliance.
3. Consider third-party testing and certification for critical applications.
4. Maintain detailed records of material selections and their compliance status.
5. Stay updated on changing regulations and plan for material transitions if needed.

Remember that regulations can vary by region and industry, so consider all markets where your product will be sold or used.

Conclusion

Selecting the right material for your PCB is a complex decision that requires balancing cost considerations with performance and reliability requirements. By understanding the properties of various PCB materials, considering the specific needs of your application, and staying informed about emerging trends and regulations, you can make informed choices that optimize your product’s performance, reliability, and cost-effectiveness.

Remember that material selection is just one part of the PCB design process. It should be considered in conjunction with other factors such as layout design, component selection, and manufacturing processes to create a truly optimized PCB solution.

As technology continues to advance, new materials and fabrication techniques will emerge, offering even greater opportunities for innovation in PCB design. Staying informed about these developments and maintaining strong relationships with suppliers and manufacturers will be key to leveraging these advancements for competitive advantage in your PCB designs.
