In the world of electronics manufacturing, quality control is paramount. One of the most crucial steps in ensuring the reliability and functionality of printed circuit boards (PCBs) is thorough testing. Among the various testing methods available, PCB Grid Testing, also known as Bed of Nails Testing, stands out as a highly efficient and widely used technique. This article will delve deep into the intricacies of PCB Grid Testing, exploring its principles, applications, advantages, and limitations.

Understanding PCB Grid Testing

Definition and Basic Principles

PCB Grid Testing, commonly referred to as Bed of Nails Testing, is an automated testing method used to verify the electrical integrity of printed circuit boards. The name “Bed of Nails” comes from the appearance of the test fixture, which consists of a plate with numerous spring-loaded pins (probes) arranged in a grid pattern that corresponds to specific test points on the PCB.

Key Components of a Bed of Nails Tester

  1. Test Fixture: The main structure that holds the PCB and test probes
  2. Spring-Loaded Probes: Pins that make contact with the PCB test points
  3. Test Points: Designated areas on the PCB for probe contact
  4. Control Unit: Manages the testing process and analyzes results
  5. Power Supply: Provides necessary voltage and current for testing
  6. Interface: Allows communication between the tester and operator

How PCB Grid Testing Works

  1. PCB Placement: The board is placed on the test fixture
  2. Probe Contact: Spring-loaded probes make contact with test points
  3. Test Execution: Electrical signals are applied and measured
  4. Data Analysis: Results are compared against expected values
  5. Pass/Fail Determination: The PCB is classified based on test results

Types of PCB Grid Testing

In-Circuit Test (ICT)

ICT is a comprehensive testing method that examines individual components on a populated PCB.

Characteristics of ICT:

  • Tests components in isolation
  • Detects manufacturing defects
  • Identifies incorrect component values
  • Verifies proper component placement

Manufacturing Defect Analyzer (MDA)

MDA focuses on identifying manufacturing defects rather than testing component functionality.

Key Features of MDA:

  • Faster than full ICT
  • Detects shorts, opens, and wrong components
  • Suitable for high-volume production
  • Less expensive than ICT

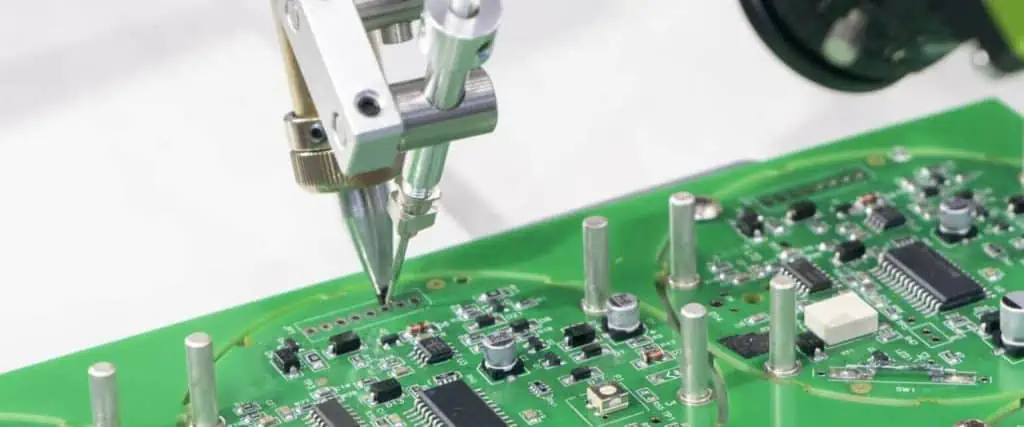

Flying Probe Test

A more flexible alternative to traditional bed of nails testing, using moving probes instead of a fixed fixture.

Advantages of Flying Probe Test:

  • Reduced fixture costs
  • Faster setup time
  • Suitable for prototypes assembly board and small production runs
  • Can test hard-to-reach points

Applications of PCB Grid Testing

Industries Utilizing Bed of Nails Testing

  1. Consumer Electronics
  2. Automotive
  3. Aerospace and Defense
  4. Medical Devices
  5. Telecommunications
  6. Industrial Automation

Specific Use Cases

  1. Smartphone PCB Testing
  2. Automotive Engine Control Unit Verification
  3. Avionics System Board Inspection
  4. Medical Implant Circuit Validation
  5. Telecommunications Equipment Quality Assurance
  6. Industrial Control Panel Testing

Advantages of PCB Grid Testing

Speed and Efficiency

Bed of Nails Testing allows for rapid testing of multiple points simultaneously, significantly reducing overall test time.

High Accuracy and Repeatability

The fixed nature of the test fixture ensures consistent probe placement and reliable results across multiple boards.

Cost-Effectiveness in High-Volume Production

While initial fixture costs can be high, the method becomes highly cost-effective for large production runs.

Comprehensive Testing Capabilities

PCB Grid Testing can perform a wide range of electrical tests, including continuity, short circuit detection, and component value verification.

Early Defect Detection

By identifying issues early in the production process, manufacturers can reduce waste and improve overall product quality.

Limitations and Challenges

Initial Setup Costs

The development and production of custom test fixtures can be expensive, especially for complex PCBs.

Limited Flexibility

Once a fixture is created, it’s specific to a particular PCB design, making changes costly.

Access to Test Points

Modern PCB designs with high-density components may limit access to necessary test points.

Potential for Probe Damage

Repeated use can lead to wear and tear on the spring-loaded probes, requiring regular maintenance.

Not Suitable for All PCB Types

Flexible PCBs or boards with sensitive components may not be compatible with the pressure applied during testing.

Best Practices for PCB Grid Testing

Design for Testability (DFT)

Incorporate test points and access features into PCB designs to facilitate easier testing.

Regular Fixture Maintenance

Implement a routine maintenance schedule to ensure probe alignment and functionality.

Proper Training for Operators

Ensure that personnel are well-trained in operating the test equipment and interpreting results.

Integration with Other Testing Methods

Combine Bed of Nails Testing with other techniques like optical inspection for comprehensive quality control.

Continuous Process Improvement

Regularly analyze test data to identify trends and optimize the testing process.

Future Trends in PCB Grid Testing

Integration with Industry 4.0

Incorporating IoT and data analytics for smarter, more connected testing processes.

Advanced Materials for Probe Technology

Development of more durable and precise probes to improve testing accuracy and longevity.

Artificial Intelligence in Test Analysis

Implementing AI algorithms to enhance defect detection and predictive maintenance.

Miniaturization of Test Equipment

Creating more compact and portable bed of nails testers for flexible manufacturing environments.

Environmental Considerations

Developing eco-friendly testing methods and materials to reduce environmental impact.

Comparison of PCB Testing Methods

To better understand the position of PCB Grid Testing in the larger context of PCB quality assurance, let’s compare it with other common testing methods:

Testing Method Speed Cost Flexibility Accuracy Suitability for High Volume
PCB Grid Testing (Bed of Nails) High Medium-High Low High Excellent
Flying Probe Medium Low-Medium High High Poor-Medium
Automated Optical Inspection (AOI) High Medium High Medium-High Excellent
X-ray Inspection Low-Medium High High High Poor-Medium
Functional Testing Low-Medium Medium-High Medium High Medium

Economic Impact of PCB Grid Testing

To illustrate the potential economic benefits of implementing PCB Grid Testing in a manufacturing environment, consider the following hypothetical scenario:

Factor Without Grid Testing With Grid Testing
Defect Detection Rate 85% 98%
Average Cost per Defect $50  $10
Production Volume (units/year) 1,000,000 1,000,000
Defective Units 150,000 20,000
Total Defect Cost $7,500,000  $200,000
Testing Equipment Cost $0  $500,000
Annual Savings $6,800,000

This simplified example demonstrates how the initial investment in PCB Grid Testing equipment can lead to significant cost savings through improved defect detection and reduced rework expenses.

Frequently Asked Questions (FAQ)

1. What is the difference between ICT and Functional Testing?

In-Circuit Testing (ICT) focuses on verifying individual components and connections on a PCB, while Functional Testing examines the overall performance of the assembled board under operating conditions. ICT is typically faster and more precise in identifying specific defects, whereas Functional Testing ensures the PCB works as intended in its final application.

2. How long does it take to set up a Bed of Nails test fixture?

The setup time for a Bed of Nails test fixture can vary significantly depending on the complexity of the PCB and the number of test points. For a moderately complex board, fixture design and production can take anywhere from a few days to several weeks. However, once the fixture is created, the actual testing process is very quick, often taking only seconds per board.

3. Can PCB Grid Testing detect all types of defects?

While PCB Grid Testing is highly effective at detecting many types of defects, including shorts, opens, incorrect components, and faulty connections, it may not catch all issues. Some defects, such as hairline cracks in PCB traces or intermittent faults, might be missed. This is why it’s often used in conjunction with other testing methods like optical inspection or functional testing for comprehensive quality assurance.

4. Is PCB Grid Testing suitable for small production runs or prototypes?

Traditional Bed of Nails Testing is generally more cost-effective for large production runs due to the initial investment in creating custom test fixtures. For small production runs or prototypes, alternative methods like Flying Probe Testing might be more economical. However, if a company anticipates scaling up production in the future, investing in a Bed of Nails fixture could be beneficial in the long term.

5. How often should Bed of Nails test fixtures be maintained?

The maintenance frequency for Bed of Nails test fixtures depends on factors such as usage volume, environmental conditions, and the complexity of the fixture. As a general guideline, probes should be inspected daily for visible damage or misalignment, with more thorough maintenance performed weekly or monthly. Many manufacturers recommend a complete fixture overhaul or replacement after a certain number of test cycles, typically ranging from 500,000 to 1,000,000 cycles.
