PCB prototype cost: budget the boards and the learning cycle

What should a PCB prototype budget include?

PCB prototype cost includes the bare boards needed for a defined validation task, the preparation and special requirements associated with that build, and the delivery arrangement. A useful project budget also identifies any planned additional fabrication round and the one-time engineering or verification costs outside the board invoice. The lowest advertised board price is not necessarily the lowest cost of answering the design question.

This page focuses on sample quantity and revision-round budgeting. The PCB Prototype service page owns construction selection, file preparation and the broader manufacturing enquiry. The distinction matters: a customer who already knows the required construction may need to work out how many physical boards support the test plan, rather than repeat the entire service-selection process.

The calculator uses costs entered by you and a transparent allocation model. It supplies no live factory rates, predicts no defect probability and does not decide that a second revision will be necessary. Use a current quote for the released construction where possible, and mark any unconfirmed allowance clearly when discussing the budget with the project owner.

Let the validation plan determine sample quantity

List the physical boards required by each activity. Some boards may be populated and used for system testing, others retained as references or reserved for destructive work. Decide whether a single board can serve several activities in sequence. If it can, count it once; if a test damages the board or changes its configuration irreversibly, plan a separate unit for the later activity.

Define the evidence required from each activity before increasing the order. Ten boards repeating the same incomplete experiment may provide less useful information than a smaller, properly allocated set. On the other hand, ordering too few boards can make an essential test impossible or force a second freight and setup charge. Quantity is part of the engineering plan, not simply a price-break decision.

Calculate a sample and revision allowance

Enter mutually exclusive sample allocations, the agreed purchase multiple and the number of fabrication rounds you intentionally want to budget. Add an entered bare-board unit price, preparation cost and freight per round, plus any separate one-time project allowance. The output shows required and rounded quantities, per-round cost and the combined scenario amount.

The budget uses rounds × (rounded quantity × unit price + per-round preparation + per-round freight) + one-time allowance. The same quantity and rates are assumed in every round. This is useful for a preliminary scenario, but a changed stackup, outline, finish or quantity can require a new quote. The tool does not automatically carry a first-build quotation into later production.

Example: eleven planned uses, fifteen purchased boards

An illustrative allocation contains five boards for assembly, three additional bare-board bench units, one destructive-test unit, one retained reference and one spare. These are eleven distinct physical boards. A purchase multiple of five rounds the order to fifteen, leaving four units beyond the stated allocation. Record how those additional boards will be used rather than counting them as evidence that more testing has been completed.

With example inputs of USD 12 per board, USD 60 preparation and USD 30 freight, each round costs USD 270. Two planned rounds plus a separate USD 80 project allowance give USD 620. These amounts illustrate the model and are not current supplier prices. The second round is a deliberately budgeted option, not a prediction that the first design will fail.

If later review concludes that the original revision is adequate, that allowance may not need to be spent. If the next revision requires a different process or more specimens, update the scenario with its actual assumptions. Keeping a visible decision between rounds is better than purchasing all future quantities before the first set of measurements has been interpreted.

Preserve the features the prototype must validate

Decide which features need to represent the intended product. A mechanical fit model, a routing experiment and a high-frequency performance prototype have different fidelity requirements. If dielectric construction, copper, finish or interconnect behavior affects the result, simplifying that feature can make the test cheaper while making its conclusion less transferable to production.

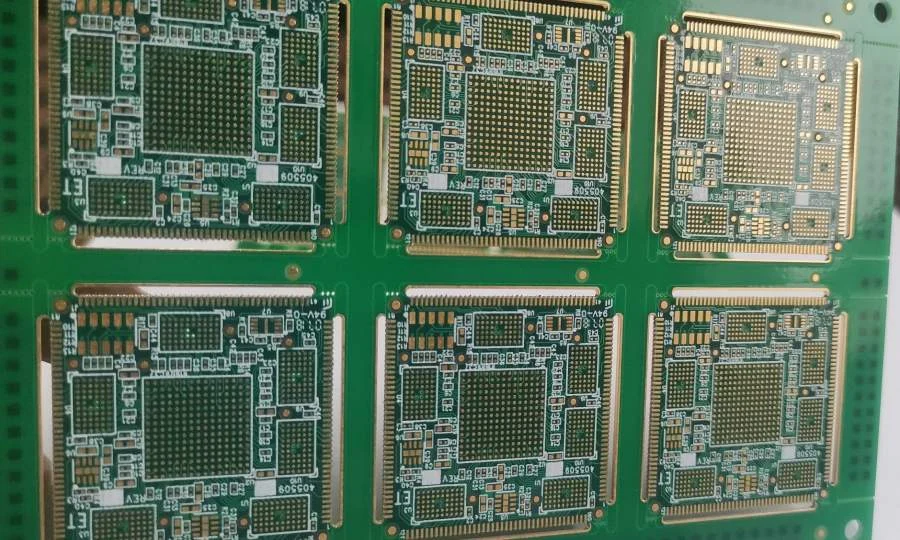

For an HDI or fine-pitch design, clarify what the prototype is intended to reveal about escape routing, interconnects and assembly interfaces. For a power board, conductor and thermal paths may be central to the experiment. Do not replace a required construction merely because a standard coupon price looks attractive. Request a controlled alternative and document which conclusions can still be drawn from it.

The PCB cost-versus-manufacturability guide helps evaluate these trade-offs. It asks whether an apparent unit saving survives engineering review and the cost of changing the design. A prototype that answers the wrong question can consume engineering time even when the board invoice itself is small.

Separate fabrication, preparation and engineering effort

Ask which charges are included in the bare-board quotation. Preparation, tooling, coupons, special measurements and reports may have different pricing treatment. A manufacturer’s engineering review of fabrication data is also different from designing your circuit, laying out the board or validating the product. Define the work you expect rather than assuming every engineering activity is included in a board order.

For repeated rounds, clarify whether earlier preparation can be reused and what a changed revision requires. A minor-looking drawing edit can affect routing, test data or panelization. Do not assume that a setup fee disappears because the new board retains the same project name. Likewise, avoid adding a fee twice when the quoted lot total already includes it.

The area-pricing explanation shows how included fixed charges change an effective per-board or per-area figure. The PCB quote-comparison worksheet helps align offers. Together they make the source of the prototype budget visible without turning the budget tool into an unsupported instant quotation engine.

Reduce avoidable repeat work before ordering

Export a coherent release and review it independently from the editable CAD project. Identify the outline, drill data, copper and mask layers, stackup, finish and drawing revision. Confirm units and the relationship between mechanical requirements and fabrication data. A complete file set still needs review for contradictions; its presence alone does not mean that the design is ready to manufacture.

Use PCB DFM to organize manufacturing questions before release. The official Gerber resources describe the exchange format; the appropriate export must still contain the right project information. Keep approved engineering answers with the release so that the board in the laboratory can be related to the requirements used to make it.

Assign an owner to unresolved decisions. A prototype purchased while a critical requirement is still changing may be a deliberate experiment, but it should be described that way. Separate provisional features from the requirements that must be manufactured exactly. That distinction helps the supplier quote the intended scope and helps the engineering team interpret the delivered sample correctly.

Budget the measurements as well as the boards

Define what will be inspected, measured or tested and which results will decide the next revision. Bare-board electrical testing addresses connectivity and isolation under its agreed method; it does not demonstrate every function of an assembled product. Special evidence such as a coupon measurement, dimensional report or destructive section needs to be requested before the manufacturing route is finalized.

Do not remove necessary evidence solely to fit a target board price. Instead, decide which question each activity answers and whether another appropriate method can answer it more efficiently. The manufacturing acceptance checklist helps state the required evidence in an order. Equipment photos and example reports do not establish that a particular prototype has passed its acceptance plan.

Capture the test configuration and revision with the result. If a board is modified in the laboratory, distinguish the original manufactured condition from the modified article. A successful test on a heavily reworked prototype may suggest a useful next design, but it does not approve an unchanged production order. That feedback belongs in the next released drawing and data set.

Keep populated-prototype costs in their own scope

Components, stencil preparation, placement, hand operations, programming and functional tests belong to the assembly deliverable. They may dominate the expense of a populated prototype even when the bare board is straightforward. A bare-board budget should not imply those items are included. Use Prototype PCB Assembly when your intended result is a working populated board.

Reconcile the physical allocation across fabrication and assembly. If five boards are reserved for assembly, do not also treat those same five as unused bare-board reserves. Identify boards consumed by setup or testing according to the agreed process rather than assuming an arbitrary loss rate. The purpose is to make quantity and cost assumptions traceable, not to claim that a simple spreadsheet can predict manufacturing yield.

Request prices around a useful experiment

Send the current release, sample allocation, requested quantity breaks and delivery milestone. State whether the construction must represent production and which measurements or records are required. Identify any optional second round as a planning scenario. Ask for separate treatment of preparation, fabrication, special evidence and freight where that separation supports your decision.

If urgency matters, consult Quick Turn PCB to distinguish build time from readiness and arrival. Keep schedule and cost assumptions associated with the same revision. A budget based on standard production timing cannot silently become an expedited commitment when the project date moves forward.
