Pyralux FR: Material Roles & Coverlay Design

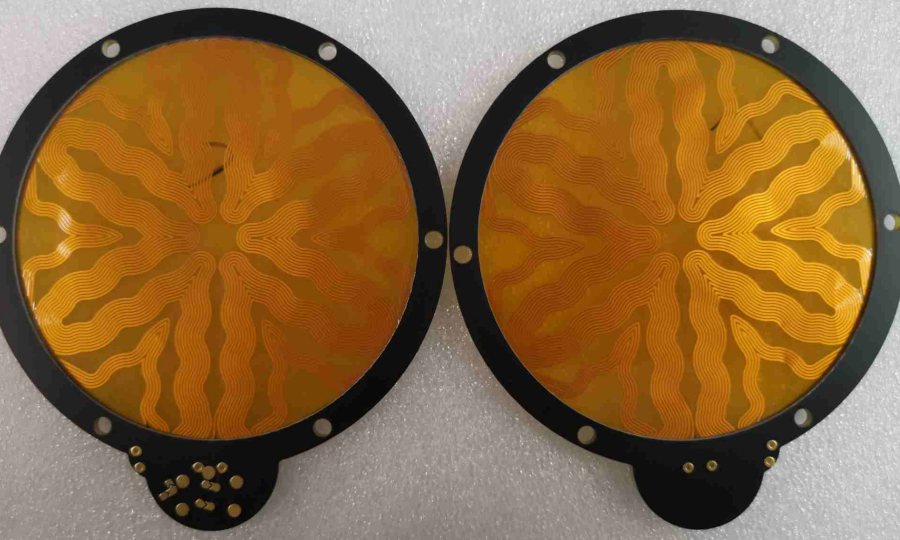

Pyralux FR is a family of material roles

Pyralux FR includes flame-retardant acrylic-based copper-clad laminate, coverlay, bond ply and sheet adhesive products. These are not interchangeable sheets. A laminate starts the circuit, coverlay protects selected exterior surfaces, bond ply joins layers while carrying a film, and unsupported adhesive bonds materials without supplying its own polyimide film. Select the physical job before choosing a thickness or requesting a price.

The Qnity FR laminate page identifies a polyimide film bonded to copper using a cured, modified acrylic adhesive. The current family directory separately describes the coverlay, bond ply and adhesive forms. Legacy DuPont names remain common on drawings, but the order should connect each required product to its current controlled specification.

“FR” in this family name must not be interpreted as FR-4, nor as automatic certification of the finished board or end product. Material recognition has an identified scope. The completed circuit includes other layers, conductor patterns, thicknesses and processing conditions that need their own review. Establish the required evidence with the responsible design and compliance parties rather than printing a broad certification claim on the fabrication drawing.

Identify what each sheet contributes

Count those components in a cross-section rather than relying on the family name. A coverlay film does not replace an omitted central dielectric, and unsupported adhesive does not become a film simply because it is delivered with a removable liner. Identify which packaging or release liners are removed before the material enters the finished stack.

The cured adhesive already present in the copper-clad base is also different from a bonding layer introduced in a later lamination. The former is part of the starting material; the latter must accommodate the actual surface being joined. Mixing those roles can create double counting in a thickness calculation and uncertainty in the manufacturing instruction.

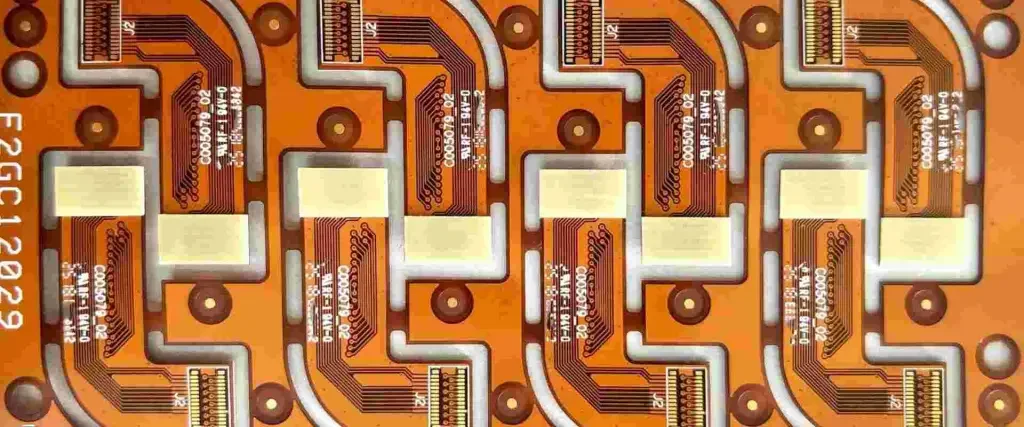

Coverlay openings are a geometry and process agreement

A pad opening must expose the intended soldering or contact region after registration error and adhesive movement are considered. A drawing that simply copies the copper pad outline into the coverlay layer leaves no explicit room for those effects. Conversely, an unnecessarily large opening may reduce the remaining coverlay web or expose adjacent conductors. The useful design task is to define and check the actual margin.

For a centered rectangular opening, the nominal side margin in X is half the difference between opening width and pad width. Subtract the maximum displacement allowed along that axis and the maximum inward adhesive intrusion assumed for one edge. The result is a conservative residual margin for this simple geometry. Repeat in Y; the smaller result identifies the limiting direction.

The source of each allowance matters. Registration may include several process stages, while opening size itself has a fabrication tolerance. Do not take a machine positioning figure and treat it as the total finished registration budget. Agree whether opening dimensional error has already been included, and state whether the flow allowance refers to one edge or the entire opening reduction.

Check a rectangular opening margin

Consider a 1.0 × 2.0 mm pad inside a 1.4 × 2.4 mm opening. The nominal margin is 0.2 mm per edge in both axes. With a 0.075 mm per-axis displacement bound and 0.05 mm inward flow bound, the residual is 0.2 − 0.075 − 0.05 = 0.075 mm. This example is not a RAYPCB process capability; replace every allowance with the reviewed construction’s values.

A negative result flags possible coverage of the intended exposed pad in this model. A nonnegative result does not prove that the minimum remaining web, soldering process or insulation requirements are satisfied. The worksheet ignores rotations, corner radii and irregular openings. These need a proper drawing review, particularly around closely spaced pads and narrow connector features.

Keep the coverlay opening and solder-paste aperture as different design objects. The opening defines exposed circuit geometry; the stencil controls deposited paste. One should not be automatically derived from the other without assembly input. The PCB stencil guide can help with that next task once the exposed pad geometry is defined.

Review the covered region and the exposed region separately

An exposed connector finger and the adjacent covered flex span may have different physical thicknesses. A local stiffener changes the insertion region again. Identify each section and record where its thickness is measured. If a connector accepts a narrow window, a nominal total alone may hide an unacceptable tolerance interval.

For an illustrative covered region, a 100 µm completed base plus two local cover contributions of 25 µm each gives 150 µm before any other additions. That is only a dimensional example; the two contributions must represent approved film-plus-cured-adhesive values for the relevant location. Raw adhesive supply thickness is not automatically the finished height over an etched pattern.

Use the flex PCB thickness guide for the full regional ledger. If the starting laminate is adhesive-based LF, the LF construction page shows why its base adhesive must already be counted before adding a coverlay. Material names alone cannot reveal whether that layer has been included.

From role selection to a reviewable production sequence

First identify the starting laminate, its copper requirements and the layers added later. Next release the copper pattern and opening definitions with common registration references. Review the intended bond interfaces and any keepout regions before agreeing how the selected covering or bonding product will be processed. This sequence resolves the design inputs before the fabrication route is finalized.

After bonding, inspect the features whose geometry could have changed: exposed pad areas, adhesive encroachment, registration to the outline and transitions into supported regions. The relevant inspection criteria belong in the drawing or agreed acceptance documentation. A material brochure does not define the acceptance of every possible fine-pitch opening.

Avoid prescribing a universal lamination recipe. The material grade, stack, pattern density, tooling and process history affect the conditions that must be controlled. The flex manufacturing process explains the broader route. For the current project, qualified supplier instructions and manufacturing records should govern the actual process parameters.

Ask for evidence at the correct level

A claim about the raw material and a claim about the completed circuit answer different questions. Record the exact material identifier, applicable recognition or classification reference, and the construction to which it applies. Then define the board-level and assembly-level evidence required for the customer’s product. Do not copy a laminate recognition into a statement that every RAYPCB FR build is certified.

Similarly, a finished board passing continuity and isolation testing does not demonstrate a specified bend life, coating durability or end-product flammability result. If such performance is required, define the configuration and evaluation method before the quotation is accepted. The qualification scope can affect both lead time and the number of samples needed.

During incoming material review, keep the supplier lot identification connected to the fabrication records. During a revision, track changes in film, adhesive, conductor thickness and process route. A small material change may deserve a focused assessment even when the electrical netlist remains identical. The useful outcome is a traceable decision, not a generic “approved” checkbox that conceals what was actually reviewed.

Cost depends on the selected FR role and geometry

Specify whether the enquiry concerns a finished PCB using FR material, a covering operation within a larger construction, or a material selection question. This page’s budget worksheet plans a finished-circuit scope using documented allowances. It does not sell raw film or assign a universal FR price. A quotation should identify which covering, bonding, reinforcement, test and setup operations are included.

Fine openings and multiple regional constructions can affect tooling, inspection and usable panel output. Compare quotations using the same opening file and drawing revision. Otherwise, a cheaper apparent material choice may simply omit a required process or use different assumptions about the panel. The flex cost guide provides the broader cost discussion without replacing the exact material callout.

For a first review, send the copper and coverlay files, layer construction, quantities, critical opening dimensions and the required qualification evidence. Include the rectangular worksheet only where its assumptions fit. Contact RAYPCB remains available without a calculation; unresolved allowances should be described as questions rather than filled with guessed factory limits.
