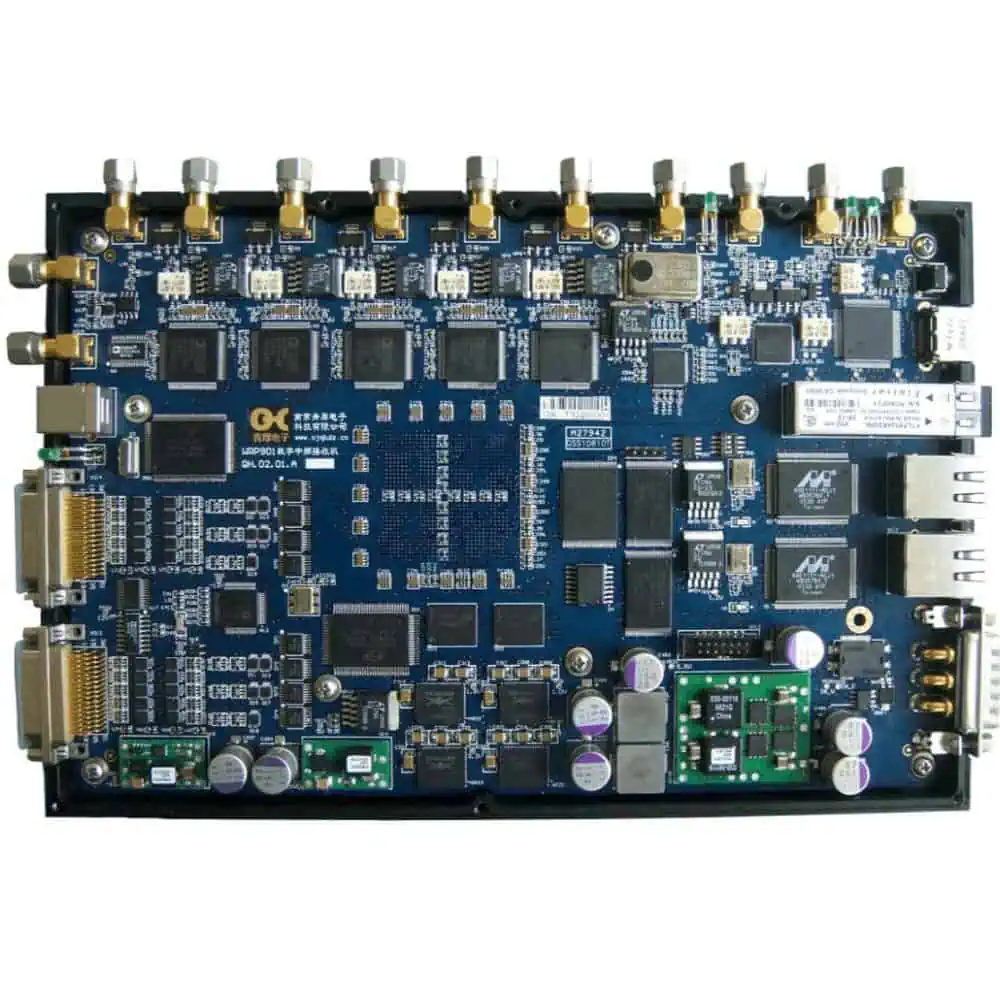

Weather radar systems play a crucial role in meteorology, providing real-time information about precipitation, wind patterns, and other atmospheric phenomena. At the heart of modern weather radar systems lies the Digital Receiver and Signal Processor Control Board, a sophisticated piece of technology that transforms raw radar signals into valuable meteorological data. This article delves into the working principles of this essential component.
Overview of the System
The Digital Receiver and Signal Processor Control Board is responsible for two primary functions:
- Receiving and digitizing the analog radar signals
- Processing these digital signals to extract meaningful weather information
This board acts as the interface between the radar’s antenna system and the data display and analysis software used by meteorologists.
Digital Receiver Function
The digital receiver portion of the board is the first stage in signal processing. Its main tasks include:
1. Signal Reception
The board receives the analog signals reflected back from various weather phenomena. These signals are typically weak and need careful handling.
2. Amplification
The received signals are amplified to bring them to a level suitable for further processing. This is done using Low Noise Amplifiers (LNAs) to minimize the introduction of additional noise.
3. Mixing
The amplified signals are mixed with a local oscillator signal to downconvert them to a lower intermediate frequency (IF). This step makes subsequent processing more manageable.
4. Analog-to-Digital Conversion (ADC)
The IF signals are then digitized using high-speed Analog-to-Digital Converters. Modern weather radars often use ADCs with sampling rates in the range of hundreds of megasamples per second and resolutions of 14 bits or more.
Signal Processor Function
Once the signals are digitized, the signal processor takes over. Its primary functions include:
1. Digital Filtering
The digitized signals are passed through various digital filters to remove noise and unwanted frequency components. This step improves the signal-to-noise ratio and helps in isolating the desired weather information.
2. Pulse Compression
Many modern weather radars use pulse compression techniques to improve range resolution and sensitivity. The signal processor implements matched filtering to compress the received pulses and enhance the radar’s ability to detect weak echoes.
3. Doppler Processing
To measure radial velocities of targets (such as rain droplets or wind-borne particles), the processor performs Doppler processing. This involves analyzing the phase changes between successive pulses to determine the velocity of the reflecting objects.
4. Spectral Analysis
The processor performs Fast Fourier Transforms (FFTs) on the received data to analyze the frequency content of the echoes. This spectral analysis helps in distinguishing between different types of precipitation and identifying phenomena like wind shear.
5. Clutter Removal
Ground clutter, caused by reflections from stationary objects like buildings or mountains, can interfere with weather observations. The signal processor uses various algorithms to identify and remove clutter from the radar data.
6. Moment Calculation
The processor calculates various radar moments, including reflectivity (related to precipitation intensity), radial velocity, and spectrum width (indicating turbulence).
Control Board Functions
The control board aspect of this system manages the overall operation of the digital receiver and signal processor. Its responsibilities include:
1. Timing and Synchronization
The control board ensures precise timing of the radar’s transmit and receive cycles, crucial for accurate range determination and Doppler measurements.
2. Parameter Control
It allows for dynamic adjustment of various radar parameters such as pulse repetition frequency, pulse width, and scanning patterns.
3. Data Management
The control board manages the flow of processed data, ensuring it’s properly formatted and transmitted to the radar’s display and analysis systems.
4. System Monitoring
It continuously monitors the health and performance of the digital receiver and signal processor, reporting any issues to the radar operators.
Integration with Other Radar Subsystems
The Digital Receiver and Signal Processor Control Board doesn’t work in isolation. It’s tightly integrated with other radar subsystems:
- It receives timing signals from the radar’s master clock.
- It coordinates with the transmitter control system to synchronize transmit and receive cycles.
- It interfaces with the antenna control system to correlate signal processing with the radar’s scanning pattern.
- It communicates with the data processing and display systems, providing them with the processed weather data.
Conclusion
The Weather Radar Digital Receiver and Signal Processor Control Board is a marvel of modern engineering, combining high-speed digital electronics with sophisticated signal processing algorithms. Its ability to rapidly and accurately process vast amounts of radar data is crucial for providing the timely and detailed weather information that we rely on daily. As technology continues to advance, we can expect these systems to become even more capable, leading to further improvements in weather forecasting and severe weather detection.
