How to Build PCB Kits

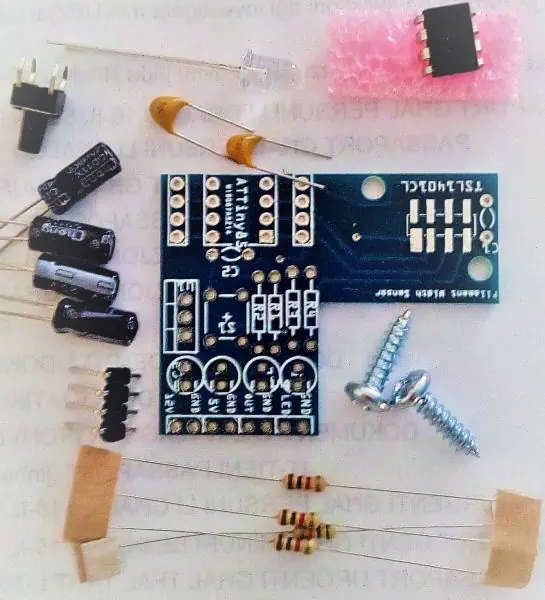

A PCB kit refers to an electronic project with a pre-made printed circuit board and collection of necessary components provided to the end user for assembly and testing. PCB kits offer an accessible starting point for electronics hobbyists and STEM students to gain hands-on learning without complex fabrication or sourcing tasks.

This guide covers key steps in the PCB kit build process including:

  • Understanding kit documentation
  • Identifying and organizing components
  • Preparing for assembly
  • Soldering techniques
  • Final assembly and troubleshooting

We’ll explore best practices to smoothly take your kit from box to finished circuit board. Let’s get started!

Kit Documentation

PCB kits include documentation detailing the board layout, schematic, bill of materials (BOM), assembly instructions, and often functional descriptions and operating theory. Thoroughly reviewing this content before starting provides the necessary context for the build.

Typical documentation items:

  • Board visual – component placement reference
  • Schematic – circuit diagram
  • BOM – list of all included components
  • Build guide – step-by-step assembly instructions
  • Theory overview – high level functional description

Ensure you read over all materials and understand at a high level how the circuit works along with specific build requirements before picking up the soldering iron!

Sorting and Identifying Components

The BOM lists every resistor, capacitor, IC, connector and other elements included in your PCB kit. Double check all items against the list:

  • Verify quantity of each component value
  • Some kits organize parts in separate marked bags
  • Larger components may be individually packaged

Next, arrange parts categorically to simplify locating specific items during assembly. Sort them into intuitive groupings:

Example grouped layout:

  • Resistors
  • Capacitors
  • Diodes
  • ICs
  • Transistors
  • Connectors
  • Hardware etc.

Consider using small containers to minimize risk of loss. This organization drastically speeds up component retrieval compared to digging through a pile of random parts!

Tools and Preparation

Before soldering ensure you have the necessary equipment setup:

Recommended items:

  • Soldering iron + stand
  • Thin gauge leaded solder
  • Flux pen + solder braid
  • Flush cutters + tweezers
  • Magnifying glass
  • Multimeter
  • Safety glasses

Also get any required peripherals like power adapters or programming cables to ultimately operate the board.

Clear sufficient workspace and eliminate clutter. Having an orderly soldering area prevents losing tiny components amidst piles of wires and tools!

Soldering Technique

We’ll quickly cover some key pointers before firing up the iron:

  • Carefully identify pad 1 and orientation markers
  • Double check component values before insertion
  • Load solder on one pad, heat and push component in
  • Reheat to flow solder to other pad
  • Inspect for shorts, leftover flux etc.
  • Seek 2nd opinion for complex assemblies

Additionally here are useful practices:

  • Position board vertically to avoid slipped parts
  • Start with physically larger components
  • Work methodically following assembly guide
  • Take breaks to rest your eyes

Patience and care pays dividends versus rushing assembly and causing avoidable mistakes or component damage.

Mounting Sensitive Components

Certain components require special handling:

ICs and Sockets

When soldering ICs directly to boards take care with heat levels. Use sockets if available to minimize thermal stress. Align notches and double check orientation.

Electrolytic Capacitors

Mind polarity! The longer lead and case stripe denotes positive. Mount vertically wherever possible.

Diodes

Align line on component body to printed orientation on PCB symbol.

Connectors

Ensure they site flush to the board prior to soldering all pins.

There are many other tips and tricks – consider SparkFun’s excellent guide covering proper technique.

Final Assembly

Once all components are soldered, perform the following checks before applying power:

🔍 Visual inspection – Confirm proper seating, orientation and neatly trimmed leads

🧲 Continuity check – Verify electrical connections between pads with no shorts

🧮 Compare with reference image(s) – Validate correct realization of board assembly

Assuming all looks good, connect programming cable or load batteries/power adapter, cross your fingers and flip the switch!

Troubleshooting

If your board doesn’t spring to life, some steps to isolate potential issues:

🔋 Power validation – Double check voltage at expected terminals

🌡️ Thermal checks – Feel for hot components signaling shorts

🔬 Resistance measurements – Take readings pin-to-pin verifying expected values

📐 Comparative analysis – Diff schematic vs assembled board connections

🤔 External factors – Try known working substitutes for peripherals

Methodically testing validated working sub-circuits can help identify faults down to the component level through a process of elimination.

Don’t be discouraged by build issues – solving them leads to greatly deepened knowledge, often beyond what smooth assembly alone provides!

Conclusion

Building PCB kits develops well-rounded electronics expertise spanning theory, assembly, debugging, and harmless failure recovery. These skills translate directly into testing and modifying commercial products or developing entirely new circuits.

With so many high quality kits available on fascinating topics from retro gaming to robotics vision and beyond, the educational possibilities are boundless. Constructing even basic blinky boards imparts device comprehension far beyond just buying something off the shelf.

Now that you’re equipped with a thorough foundation in DIY kit creation, it’s time to bring your electronic visions to life!

Frequently Asked Questions

Q: Do I need to be an electrical engineer or expert to build a PCB kit?

A: Not at all! Many kits come with extensive documentation walking you through all necessary steps with no assumptions of prior knowledge. Focus is more on following instructions, soldering and construction skills over pure circuit theory comprehension.

Q: Can damaged parts be replaced if I make a mistake?

A: Most kit sellers offer reasonably priced replacement components available on their website. Some even provide “Crash Kits” with extra ICs, connectors etc. anticipating common mishaps from the less experienced.

Q: What tools should I invest in if pursuing electronics kits as a hobby?

A: Start with a basic ~40W soldering iron, thin rosin core solder, flush cutters, needle nose pliers, a multimeter and magnifying glass. Down the road, handy additional tools would include solder sucker/solder wick, digital microscope, helping hands jigs, a larger 70W iron and more.

Q: Is it safe to allow kids to build kits with supervision?

A: Using child-friendly soldering iron variants with reduced operating temperatures, most children 10+ with close parental oversight can successfully assemble basic kits. Ensure to emphasize safety like wear eye protection, tie hair back, avoid touching the hot tip etc. Graduate approachable kits teach vital STEM principles.

Q: What resources are available if I get stuck on an issue with my kit?

A: Most major kit retailers like SparkFun and Adafruit operate active online user technical support forums where both company reps and other customers can provide troubleshooting assistance and advice. Additionally there is a huge hobbyist DIY community across blogs and YouTube. So multiple free avenues for help exist!
