The Essential Factors to Take into Account While Building Ultra-Thin PCB

An ultra-thin PCB is a form of printed circuit board that is thinner than conventional PCBs. They are perfect for situations where space is premium or weight reduction is essential because they are generally less than 0.8mm thick.

Smartphones, laptops, tablets, and other portable electronic gadgets frequently employ ultra-thin PCBs. These PCBs’ thinness makes it possible to create electrical devices that are lighter and smaller, which is crucial in today’s mobile environment.

Specialized techniques and materials, such as thinner copper foil, thinner substrate material, and smaller vias, are needed to manufacture an ultra-thin PCB. Therefore, producing ultra-thin PCBs may be more difficult and costly than conventional PCBs due to these procedures and materials.

Smaller, lighter, and more portable electronic gadgets rely heavily on ultra-thin PCBs.

Ultra-thin PCB manufacturing calls for particular thought and attention to detail. The following are some crucial factors that must be taken into mind while creating ultra-thin PCBs:

Substrate Material:

flex pcb capability

The PCB’s foundation layer, the substrate material, supports the copper foil and the electronic parts. The substrate material for ultra-thin PCBs must be as thin as is practical while offering sufficient stiffness to avoid bending or flexing. For ultra-thin PCBs, common substrate materials include polyimide, PET (polyethylene terephthalate), and FR-4.

Copper Foil:

Copper foil for ultra-thin PCBs must be thinner than a copper foil for conventional PCBs. Depending on the demands of the particular application, the copper foil’s thickness is generally between 9 and 18 m. The lighter and thinner copper foil contributes to a reduction in the PCB’s overall thickness and weight.


Vias are tiny holes punched into the PCB to facilitate power transfer and communications across its various layers. To prevent weakening the substrate or copper foil on ultra-thin PCBs, we must consider the size and positioning of the vias. The through’s diameter should be as small as feasible to reduce the distance the signal must travel. Additionally, the via should be as close to the component as possible.

Component Placement:

We must carefully consider component placement on the board to keep the ultra-thin PCB as small as feasible. Therefore, the components should be positioned near the PCB surface to reduce the overall thickness. Also, if possible, we should use surface-mount components or components with a low profile.

Solder Mask:

To prevent solder bridges from developing between neighboring pads and to shield copper traces and pads from oxidation, we apply a layer of material known as a solder mask on the PCB. To lower the overall thickness of ultra-thin Boards, the solder mask must be as thin as feasible.

Trace Width and Spacing:

We must carefully evaluate its width to ensure the PCB’s traces can transport the necessary current without overheating. Furthermore, the distance between the traces is essential to prevent cross-talk and signal interference.

Thermal Management:

All PCBs should consider heat dissipation, but ultra-thin PCBs require extra care. It is more difficult to disperse heat due to the thin substrate and copper foil. Therefore thermal management must be given additional consideration. This can involve the application of thermal vias, heat sinks, and other cooling strategies.


Ultra-thin PCBs are frequently essential in applications where flexibility is necessary, such as wearable technology or flexible displays. As a result, the PCB needs to be flexible without sacrificing its structural integrity. We may accomplish this through flex-rigid PCB design, flexible substrate materials, and careful component arrangement.


Because of their fragility and thinness, evaluating ultra-thin PCBs might be more difficult than testing regular ones. Therefore, we must prevent PCB damage during testing to guarantee reliable testing findings. Specialized testing equipment could also be necessary.

Manufacturing Processes:

Ultra-thin PCB fabrication procedures might be more complex and call for specialized tools. For instance, during manufacturing, the thin substrate and copper foil would need to be handled with more care, and the tiny vias could need more accurate drilling tools.

Which are the Quality Standards for Ultra-Thin PCB?


Ultra-thin PCBs must adhere to several quality requirements, and doing so will help guarantee that the boards are reliable and of the necessary quality. The following list of ultra-thin PCB quality requirements includes some of the most popular ones:


This is the requirement for Flexible Printed Board Qualification and Performance Specification. It includes the specifications for flexible printed circuit boards, including ultra-thin PCBs, in terms of design, components, manufacturing, testing, and performance.


The Qualification and Performance Standards for Rigid Printed Boards are available in this standard. It includes the specifications for rigid printed boards, including ultra-thin PCBs, in terms of design, components, manufacture, testing, and performance.


The Acceptability of Printed Circuit Boards standard is here. It gives visual criteria for examining and assessing the quality of the printed circuit boards and includes the standards for the craftsmanship of printed circuit boards, including ultra-thin PCBs.

ISO 9001:

The requirements for a quality management system are available in this quality management standard (QMS). This standard’s adherence aids in ensuring that ultra-thin PCBs come with a constant degree of quality.

UL Guidelines:

The independent safety science firm UL (Underwriters Laboratories) creates safety standards for various items, including PCBs. The ultra-thin PCBs assist in guaranteeing that performance and safety criteria are met by adhering to UL standards.


A directive from the European Union called “RoHS” forbids using several hazardous substances, including PCBs, in electrical and electronic equipment. The ultra-thin PCBs are devoid of dangerous substances like lead, mercury, and cadmium, thanks to compliance with RoHS.


The European Union’s REACH legislation, which stands for Registration, Evaluation, Authorization, and Restriction of Chemicals, strives to guarantee the safe incorporation of chemicals into goods. REACH compliance guarantees that ultra-thin PCBs are free of dangerous substances that might endanger human health or the environment.

What is the Purpose of Shielding in Ultra-Thin PCB?

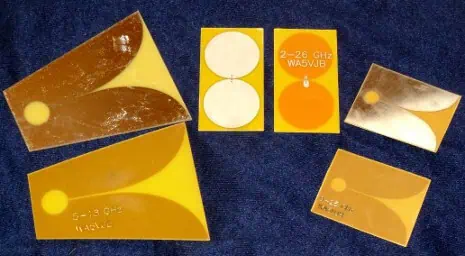

Ultra Wide Band (UWB) Antenna PCB
Ultra Wide Band (UWB) Antenna PCB

Shielding is helpful in ultra-thin Boards (EMI) to prevent electromagnetic interference from damaging electronic circuitry. However, when electromagnetic radiation from one source obstructs the operation of another electronic equipment, this unwelcome phenomenon known as EMI occurs. This interference in ultra-thin PCBs may originate from adjacent equipment, power supplies, or other electromagnetic sources.

Electronic circuits can experience various issues due to EMI, including noise, distortion, signal loss, and poor overall performance. By building a wall between the EMI source and the electrical circuit, shielding helps to stop this interference.

Shielding on ultra-thin PCBs often entails the placement of a conductive layer between the electronic circuit and the EMI source. This layer helps to reflect or absorb the electromagnetic radiation generating the interference.

Shielding in ultra-thin PCBs might include other elements besides the conductive layer, such as ground planes or vias, which create a low-impedance path for the EMI to dissipate. These parts direct EMI away from the electrical circuit, lowering the possibility of interference.

Shielding in ultra-thin PCBs serves the general aim of insulating electronic circuits from the detrimental effects of EMI, assuring their dependability and interference-free operation. Furthermore, ultra-thin PCBs are an excellent option for various industries and applications because they operate well in high-frequency or high-speed applications through shielding.

The Advantages of Ultra-Thin PCB

The Advantages of Flexible Printed Circuit Board
The Advantages of Flexible Printed Circuit Board

Compared to conventional PCBs, ultra-thin PCBs provide several benefits, including decreased size and weight, enhanced signal and thermal performance, superior reliability, cost-effectiveness, more design freedom, and a smaller environmental footprint. They are a popular option for many applications because of these benefits.

Disadvantages of Ultra-Thin PCB

While choosing a PCB technology for a specific application, it is essential to consider both the benefits and drawbacks of ultra-thin PCBs. They include issues with temperature control, signal loss, manufacturing complexity, design limitations, and fragility. These drawbacks may restrict the PCB’s performance and dependability in high-temperature applications.

Applications of Ultra-Thin PCB

Due to its many advantages over conventional PCBs, ultra-thin PCBs are essential in various applications. Among these are smartphones, wearable technology, consumer electronics, consumer goods, automobiles, the Internet of Things (IoT), sensors, and smart cities. They are perfect for wearable devices worn on the body since they may be flexible, stretchy, and conformable. They can also tolerate high vibrations and temperatures.
