Exploring the Specifications and Applications of Temperature-Controlled Circuits

A digital circuit of temperature controller refers to a temperature control device that is used in home, medical, and industrial applications. This digital thermo controller seems better than a thermostat/analog system with poor accuracy. For instance, it proves helpful in devices like incubators where controlling an accurate amount of temperature is significant.

Digital Temperature-Controlled Circuits – Description of Block Diagram

This refers to a digital thermo controller system that gives the data of temperature on the display. It switches off the load when the change in temperature starts exceeding the specific set point. Here we use a lamp for a load to give a demo explanation.

The digital thermo-controller system utilizes an 8051 series of microcontrollers. It serves as a heart or central part of the device. The unit of the display contains a four to seven parts display and a temperature sensor that interfaces with the microcontroller. The digital thermo-sensor interfaces with a microcontroller to sense the condition of temperature. Moreover, it also contains push buttons that help in adjusting the settings of the temperature.

The microcontroller, however, polls the data of temperature using a digital thermal sensor. It then displays it on the 7-part display. Therefore, when the temperature of the corresponding resistor rises from the specific set point, It automatically turns the lamp off.

How Does A Temperature-Controlled Circuit Switch Work?

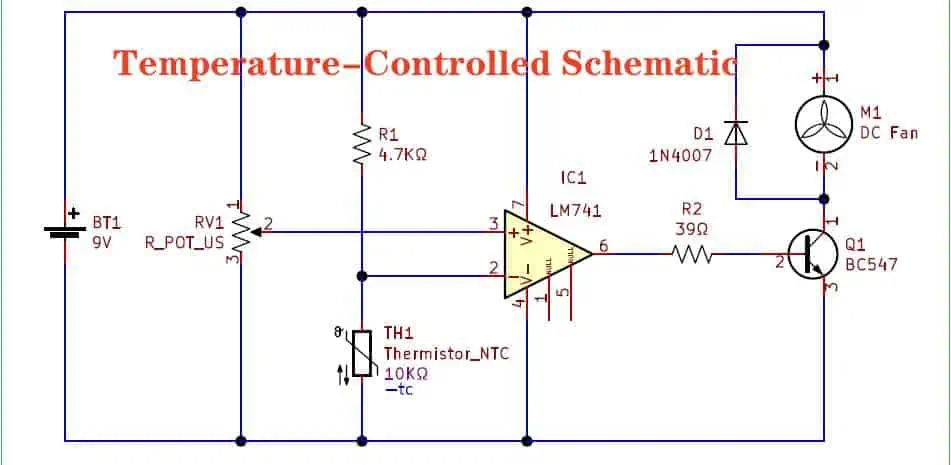

Temperature-Controlled Schematic
Temperature-Controlled Schematic

A temperature or thermo control switch operates based on set values. Generally, it measures the environmental temperature and makes it a reference. Then measure the device temperature and compare both temperatures.

The sensor creates a power signal as an output as it completes its calculations. The output signal contains all the necessary variations. Moreover, the final element receives these output signals, which heat up or cool down the devices. Take an oven, a heater, a controller, and a thermocouple, for instance. The thermo-controller measures the temperature of the thermocouple of the oven and then compares them with a set threshold. Moreover, the Thermo controller also measures the run-time of the heater to maintain the environmental condition of the oven.

Temperature-Controlled Circuits – Relay Circuits

The temperature or thermo-controller circuit works and operates easily. One can easily create this temperature circuit. However, this simplicity does not affect its efficiency. In simple words, it proves ideal for almost all automatic thermal-control devices.

This thermo-controller controls the integrated relay on the circuit. However, it uses a single-chip LM35DZ temperature sensor to commence this task. The relay begins working when the circuit temperature surpasses the set temperature. At the same time, it stops working when the circuit temperature starts going below the set point.

How Does Temperature-Controlled Circuit Work?

The temperature sensor LM35DZ serves as the central figure of the circuit. It uses the Celsius scale to work. At the same time, it uses a degree to convert the voltage to give accurate control. Moreover, the LM35DZ alters its power voltage output on the basis of the measured temperature. Also, its max temperature can range anywhere between 100 degrees to zero degrees Celsius.

The preset VR1 and resistor R3 sets the temperature of a circuit ranging from 1.62 volts to 0 volts. Also, the op-amp reduces the voltage reference to stop the overloading of the R3 and V1. A comparator comes in. It compares the output voltage of LM35DZ with the set temperature. Additionally, it also determines whether to turn on or off the relay.

Applications of Temperature-Controlled Circuits

The output from the thermo-controller relay circuit can be used in cooling systems, heating systems, and alarm devices. For instance, the circuit helps in switching on or off the cooling fan when the circuit detects the change in temperature and reaches beyond the set temperature. Thus helping the heatsinks and semiconductor devices to cool down. Moreover, make sure to put the thermal sensor in a place that is close to the heating agents.

Also, some other devices that need extra caution include outdoor usage, as it creates electrical interference and potential chemical connections. Also, systems like nuclear control devices, aviation devices, tailored devices, and combustion devices. Additionally, amusement machines and medical devices. Vehicles, safety equipment, and devices that need to be installed for industry and government regulations. Also, those devices, equipment, and systems that may affect the property or life need extra caution to install thermo-sensors.

Specifications of Temperature-Controlled Circuits


· Stability

It is hard to determine the stability of a system with a temperature controller, which serves as an essential specification. Thermistors are used to test the wavelength as it offers the greatest resistance to change at every degree Celsius. The load of the test is also controlled well using sensors nearby the device.

However, the thermoelectric, properly sized heat sink and all electrical components are connected with each other using high-quality thermal grease. It reduces the thermal resistance among them. Moreover, it gives stability in the form of Celsius and Kelvin. The range of typical stability can range below 0.001 degrees Celsius.

· Operating Temperature Range

Electrical devices contain a specific temperature range to operate well. It may lead to damage if the temperature exceeds or goes below that specific range. The wavelength specifies the device’s operating range.

It couples with the specification of Max’s internal dissipation of power. Moreover, when the value of the device temperature rises above the environmental temperature, the max internal dissipation of power drops to zero over the max operating temperature.

· Separate Monitor And Power Grounds

The temperature controller uses one higher power ground which connects with the supply of power. Various low-power grounds are present between the signals of the monitor to reduce inaccuracies and offsets. At the same time, high and low power ground connects internally and uses low power ground with a monitor to give the best results.

· Thermal Runaway

One thing that you need to understand is that when a thermoelectric removes the heat from a specific device, then heat needs to dissipate completely off the system. Moreover, any extra heat from overwork or inefficiency of components in a thermoelectric also needs to dissipate. Therefore, it needs an appropriate heat sink design.

It helps dissipate enough heat from the device and retains the temperature of the device below the surrounding temperature. But however, if the design does not suit well, instead of dissipating heat, it remains in a load. It, in fact, increases the temperature of the sensor rather than remaining at a specified temperature. However, a temperature control comes in, which drives additional cooling current from the thermoelectric.


A temperature controller circuit helps in controlling the temperature-sensitive device automatically. It operates without disturbing anyone. It also helps in avoiding various temperature effects. Moreover, it costs less, requires easy construction, and easily-available components. Thus making it ideal to use as a heat sensor.
