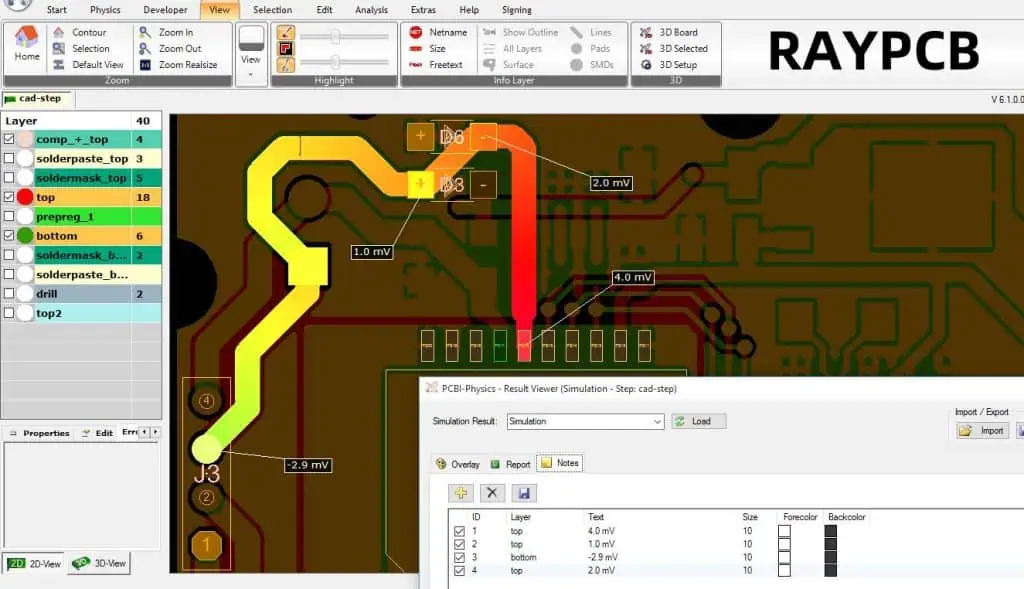

In the world of electronics manufacturing, understanding the physical properties of materials is crucial for designing reliable and long-lasting products. One of the most important properties to consider when dealing with Printed Circuit Boards (PCBs) is the Coefficient of Thermal Expansion (CTE). This property plays a significant role in determining the performance and reliability of PCBs, especially in applications where temperature fluctuations are common.
This article will delve into the concept of CTE, its importance in PCB design and manufacturing, and how it affects the overall performance of electronic devices. We’ll explore the various factors that influence CTE, methods for measuring and controlling it, and best practices for managing CTE in PCB design.
Understanding the Coefficient of Thermal Expansion
Definition of CTE
The Coefficient of Thermal Expansion (CTE) is a measure of how much a material expands or contracts with changes in temperature. It is typically expressed as the fractional change in size per degree of temperature change. In the context of PCBs, CTE is usually measured in parts per million per degree Celsius (ppm/°C).
The Physics Behind CTE
At the atomic level, CTE is a result of the increased vibration of atoms as temperature rises. As atoms vibrate more vigorously, they require more space, causing the material to expand. Conversely, as temperature decreases, atomic vibrations decrease, leading to material contraction.
Types of CTE
There are three main types of CTE that are relevant to PCB design:
- Linear CTE: Measures expansion in one dimension
- Area CTE: Measures expansion in two dimensions
- Volumetric CTE: Measures expansion in three dimensions
For PCBs, the linear and area CTEs are most commonly used, as boards are primarily concerned with expansion in the x, y, and z directions.
The Importance of CTE in PCB Design
Thermal Stress and Reliability
One of the primary reasons CTE is crucial in PCB design is its impact on thermal stress. When different materials with varying CTEs are combined in a PCB, temperature changes can lead to mechanical stress at the interfaces between these materials. This stress can cause a variety of reliability issues, including:
- Solder joint fatigue
- Component cracking
- Delamination of PCB layers
- Warpage of the board
Impact on Electrical Performance
CTE can also affect the electrical performance of a PCB. As materials expand and contract, the following issues may arise:
- Changes in impedance of transmission lines
- Alterations in capacitance between conductors
- Variations in the dielectric constant of insulating materials
These changes can lead to signal integrity problems, especially in high-frequency applications.
Manufacturing Considerations
CTE plays a significant role in the PCB manufacturing process, particularly during:
- Lamination: Mismatched CTEs can cause warpage during the high-temperature lamination process.
- Soldering: Differences in CTE between components and the board can lead to solder joint reliability issues.
- Assembly: CTE mismatches can cause alignment problems during pick-and-place operations.
Factors Affecting CTE in PCBs
Material Composition
The CTE of a PCB is primarily determined by the materials used in its construction. Common PCB materials and their typical CTE values include:
| Material | CTE (ppm/°C) |
| FR-4 (x-y direction) | 14-17 |
| FR-4 (z direction) | 50-70 |
| Polyimide | 12.-16 |
| PTFE | 100-280 |
| Copper | 17 |
| Aluminum | 23 |
| Silicon | 2.6 |
Layer Stack-up
The overall CTE of a multilayer PCB is influenced by the arrangement and thickness of its layers. Factors to consider include:
- The ratio of copper to dielectric material
- The orientation of fiberglass weave in FR-4 boards
- The use of constraining cores or stiffeners
Temperature Range
It’s important to note that CTE is not always constant across all temperature ranges. Some materials exhibit different expansion rates at different temperatures, which can complicate PCB design for applications with wide temperature ranges.
Moisture Content
The presence of moisture in PCB materials can affect their CTE. Absorbed moisture can cause materials to swell, altering their expansion characteristics.
Measuring and Controlling CTE in PCBs
Measurement Techniques
Several methods are used to measure CTE in PCB materials:
- Thermomechanical Analysis (TMA): Measures dimensional changes in a sample as it is heated or cooled.
- Dilatometry: Uses a high-precision instrument to measure length changes in a sample over a temperature range.
- Interferometry: Utilizes light interference patterns to detect minute changes in dimensions.
CTE Control Strategies
To manage CTE in PCB design, several strategies can be employed:
- Material Selection: Choosing materials with compatible CTEs for different layers and components.
- Symmetrical Design: Balancing the PCB stack-up to minimize warpage.
- Use of Constraining Cores: Incorporating low-CTE materials in the stack-up to reduce overall expansion.
- Thermal Management: Implementing effective heat dissipation to minimize temperature fluctuations.
CTE Matching in PCB Design
Board-to-Component Matching
One of the most critical aspects of CTE management in PCB design is matching the expansion rates of the board to those of the components. This is particularly important for:
- Ball Grid Array (BGA) packages
- Large integrated circuits
- Surface-mount components with a large footprint
Mismatches in CTE between the board and components can lead to solder joint fatigue and eventual failure.
Strategies for CTE Matching
To achieve better CTE matching, designers can:
- Use low-CTE laminates for critical areas of the board
- Implement selective use of high-Tg (glass transition temperature) materials
- Design with compliant lead structures for components
- Utilize underfill materials to distribute stress in BGA packages
CTE Considerations for Different PCB Applications
High-Reliability Applications
In applications where reliability is paramount, such as aerospace or medical devices, CTE management is critical. Strategies for these applications include:
- Use of polyimide or other low-CTE materials
- Extensive thermal cycling testing
- Implementation of redundant design features
High-Temperature Applications
For PCBs that operate in high-temperature environments, special considerations for CTE include:
- Selection of materials with stable CTEs at elevated temperatures
- Use of ceramic or metal-core PCBs for better thermal management
- Implementation of stress-relief design features
Flexible and Rigid-Flex PCBs
Flexible and rigid-flex PCBs present unique challenges for CTE management due to the combination of different materials. Considerations include:
- Matching CTEs between rigid and flexible sections
- Designing transition zones to manage stress
- Selecting adhesives that can accommodate CTE differences
Advanced Topics in CTE Management
Finite Element Analysis (FEA)
Finite Element Analysis is a powerful tool for predicting the effects of CTE in complex PCB designs. FEA can help designers:
- Identify areas of high stress due to CTE mismatches
- Optimize component placement and board layout
- Evaluate the effectiveness of different CTE management strategies
Novel Materials for CTE Control
Research into new materials for PCB manufacturing is ongoing, with a focus on improving CTE characteristics. Some promising developments include:
These materials offer the potential for better CTE matching and improved thermal performance.
CTE in High-Frequency Applications
For high-frequency and microwave applications, CTE management becomes even more critical due to the sensitivity of these circuits to dimensional changes. Considerations include:
- Use of low-loss, low-CTE materials like PTFE composites
- Careful control of dielectric thickness variations
- Implementation of temperature compensation techniques in circuit design
Best Practices for CTE Management in PCB Design
Design Guidelines
To effectively manage CTE in PCB design, consider the following guidelines:
- Start with CTE considerations early in the design process
- Use symmetrical layer stack-ups whenever possible
- Pay special attention to CTE matching for large components
- Implement thermal relief patterns for better stress distribution
- Use via-in-pad designs cautiously, as they can exacerbate CTE-related stress
Material Selection Criteria
When selecting materials for a PCB design, consider the following CTE-related factors:
- CTE values in x, y, and z directions
- CTE stability across the expected temperature range
- Glass transition temperature (Tg) of the material
- Moisture absorption characteristics
- Compatibility with other materials in the design
Testing and Validation
To ensure that CTE-related issues are properly addressed, consider implementing the following testing and validation procedures:
- Thermal cycling tests to simulate real-world conditions
- X-ray inspection of solder joints after thermal stress
- Warpage measurements at different temperatures
- Electrical testing across the operating temperature range
Future Trends in CTE Management
Emerging Technologies
As the electronics industry continues to evolve, new technologies are emerging that may impact CTE management in PCBs:
- 3D-printed electronics with custom CTE profiles
- Embedded components for reduced surface CTE stress
- Advanced thermal management materials and techniques
Sustainability Considerations
As the industry moves towards more sustainable practices, CTE management may be influenced by:
- The development of bio-based PCB materials with unique CTE properties
- Increased focus on recyclable and repairable designs
- Implementation of life cycle assessment tools that consider CTE-related reliability factors
Conclusion
Understanding and managing the Coefficient of Thermal Expansion is crucial for designing reliable and high-performance PCBs. As electronic devices continue to become more compact and operate in more demanding environments, the importance of CTE management will only increase.
By considering CTE throughout the design process, selecting appropriate materials, and implementing effective testing and validation procedures, PCB designers can create boards that maintain their integrity and performance across a wide range of temperatures and operating conditions.
As new materials and technologies emerge, the field of CTE management in PCBs will continue to evolve, offering new opportunities for innovation and improved reliability in electronic devices.
Frequently Asked Questions (FAQ)
- Q: How does CTE affect the reliability of solder joints in a PCB? A: CTE differences between the PCB and components can cause stress on solder joints during temperature changes. This stress can lead to fatigue and eventual failure of the joints, especially in applications with frequent thermal cycling. To mitigate this, designers must carefully consider CTE matching between the board and components, and may implement strategies such as using compliant lead structures or underfill materials.
- Q: What is the significance of the glass transition temperature (Tg) in relation to CTE? A: The glass transition temperature (Tg) is the point at which a polymer transitions from a rigid to a more flexible state. This transition is often accompanied by a significant change in CTE. Below Tg, materials typically have a lower and more stable CTE, while above Tg, the CTE can increase dramatically. Understanding the Tg of PCB materials is crucial for predicting their behavior across different temperature ranges and ensuring reliable performance.
- Q: How do you manage CTE in a multilayer PCB with different materials? A: Managing CTE in multilayer PCBs with different materials involves several strategies:
- Using a symmetrical layer stack-up to balance stress
- Selecting materials with compatible CTEs
- Incorporating low-CTE constraining cores
- Carefully considering the thickness and placement of different materials
- Using modeling and simulation tools to predict and optimize CTE behavior The goal is to create a balanced design that minimizes overall warpage and stress concentrations.
- Q: What are the challenges of CTE management in high-frequency PCB applications? A: High-frequency PCB applications face unique CTE challenges due to their sensitivity to dimensional changes. Key issues include:
- Maintaining consistent impedance in transmission lines as dimensions change
- Preserving the stability of the dielectric constant across temperature ranges
- Minimizing signal skew caused by differential expansion
- Ensuring reliable connections for sensitive high-frequency components To address these challenges, designers often use specialized low-CTE, low-loss materials and implement careful thermal management strategies.
- Q: How does moisture absorption in PCB materials affect CTE? A: Moisture absorption can significantly impact the CTE of PCB materials, particularly in polymer-based substrates like FR-4. As materials absorb moisture, they can swell, altering their dimensions and effective CTE. This can lead to several issues:
- Increased warpage and stress in the board
- Changes in electrical properties, such as dielectric constant
- Potential delamination during high-temperature processes like soldering To mitigate these effects, designers must consider moisture absorption characteristics when selecting materials and may implement measures such as baking boards before assembly or using moisture-resistant coatings.
