Autodesk EAGLE (formerly CadSoft EAGLE) is a popular electronic design automation (EDA) software used for creating printed circuit board (PCB) designs. One of the crucial steps in PCB design is creating a schematic diagram, which serves as a blueprint for your electronic circuit. This tutorial will guide you through the process of drawing schematics in EAGLE, from basic setup to advanced techniques.

Getting Started with EAGLE

Installing EAGLE

Before diving into schematic drawing, you need to install EAGLE on your computer. EAGLE is available for Windows, macOS, and Linux operating systems.

1. Visit the Autodesk EAGLE website
2. Download the appropriate version for your operating system
3. Follow the installation wizard instructions
4. Launch EAGLE after installation

Understanding the EAGLE Interface

When you open EAGLE, you’ll be greeted with the Control Panel. This is where you can create new projects, open existing ones, and access libraries. The main components of the EAGLE interface are:

1. Control Panel
2. Schematic Editor
3. Board Editor
4. Library Editor

For this tutorial, we’ll focus primarily on the Schematic Editor.

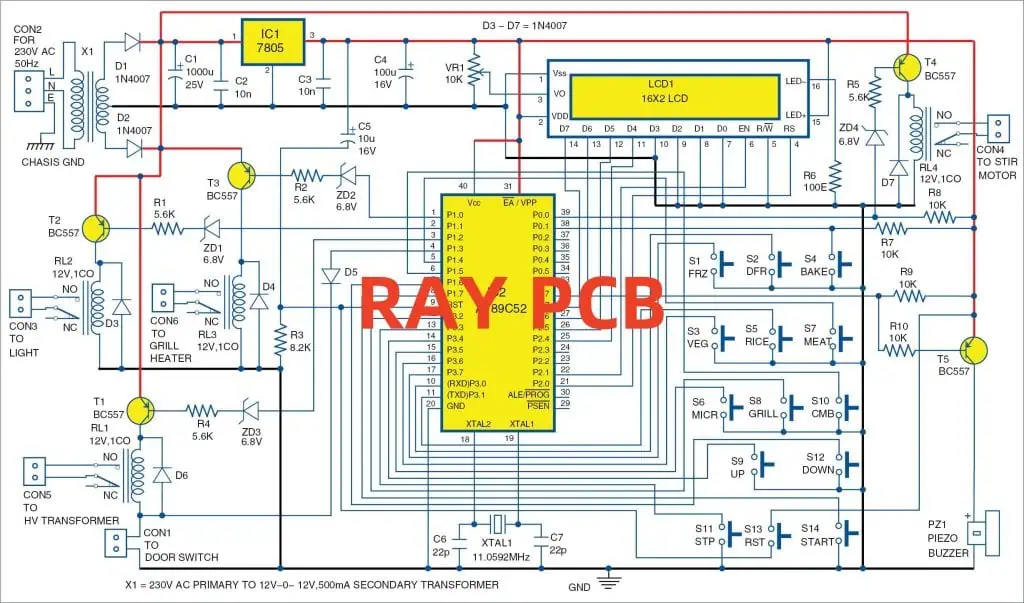

Creating a New Schematic

Setting Up a New Project

To begin drawing a schematic, you need to create a new project:

1. In the Control Panel, right-click on “Projects” and select “New Project”
2. Name your project and click “OK”
3. Right-click on your new project folder and select “New” > “Schematic”
4. Name your schematic file and click “OK”

The Schematic Editor will open, presenting you with a blank canvas to start your design.

Configuring the Schematic Grid

Before placing components, it’s important to set up your grid:

1. Go to “View” > “Grid”
2. Set the grid size (e.g., 0.1 inches)
3. Choose the grid style (lines, dots, or both)
4. Click “OK” to apply the changes

Adding Components to Your Schematic

Accessing the Component Library

EAGLE comes with an extensive library of components. To add components to your schematic:

1. Click on the “Add” button in the left toolbar (or press the “ADD” key)
2. Browse through the libraries or use the search function to find your desired component
3. Select the component and click “OK”

Placing Components

Once you’ve selected a component:

1. Move your cursor to the desired location on the schematic
2. Left-click to place the component
3. Right-click to rotate the component (if needed)
4. Press “ESC” to exit the placement mode

Common Schematic Symbols

Here’s a table of common schematic symbols you’ll likely use in your designs:

Connecting Components

Using the Wire Tool

To connect components in your schematic:

1. Click on the “Wire” button in the left toolbar (or press the “WIRE” key)
2. Click on the first connection point
3. Draw the wire to the second connection point
4. Click to place the wire
5. Press “ESC” to exit the wire mode

Creating Junctions

When connecting multiple wires:

1. Use the “Wire” tool to create intersecting wires
2. EAGLE automatically creates a junction (represented by a dot)
3. If a junction is not created automatically, use the “Junction” tool to add one manually

Labeling Nets

To keep your schematic organized:

1. Click on the “Name” button in the left toolbar
2. Click on a wire or junction
3. Enter a name for the net (e.g., VCC, GND, SIGNAL1)
4. Press “Enter” to apply the label

Adding Power and Ground Symbols

Using Power Symbols

1. Click on the “Add” button
2. Search for “VCC” or “GND” in the library
3. Place the power symbol on your schematic
4. Connect it to the appropriate components

Creating Power Nets

To ensure all components are properly powered:

1. Connect VCC and GND symbols to your components
2. Use the “Wire” tool to connect power rails across your schematic
3. Label power nets consistently (e.g., +5V, +3.3V, GND)

Annotating Your Schematic

Adding Text and Notes

To include explanatory text:

1. Click on the “Text” button in the left toolbar
2. Click where you want to add text
3. Type your note or explanation
4. Adjust the text size and font as needed

Creating a Title Block

A title block provides important information about your schematic:

1. Go to “Draw” > “Frame”
2. Select a frame size (e.g., letter, A4)
3. Place the frame on your schematic
4. Use the “Text” tool to add project details (name, date, revision, etc.)

Advanced Schematic Techniques

Creating Custom Components

If you can’t find a specific component in the library:

1. Go to “File” > “New” > “Library”
2. Use the Symbol Editor to create the schematic symbol
3. Use the Package Editor to create the physical footprint
4. Use the Device Editor to combine the symbol and package
5. Save your custom component to a personal library

Using Buses for Complex Circuits

For schematics with many connections:

1. Click on the “Bus” button in the left toolbar
2. Draw the bus line across your schematic
3. Use the “Wire” tool to connect components to the bus
4. Label bus segments (e.g., DATA[0..7])

Hierarchical Schematic Design

For large projects:

1. Create multiple schematic sheets
2. Use the “Module” tool to create hierarchical blocks
3. Connect blocks using “Port” symbols
4. Navigate between sheets using the “Sheet” command

Schematic Verification and ERC

Running Electrical Rule Check (ERC)

To check for common electrical errors:

1. Go to “Tools” > “ERC”
2. Review and configure the ERC settings
3. Click “Check” to run the ERC
4. Address any errors or warnings in the ERC results

Common ERC Errors and Solutions

Preparing for PCB Layout

Assigning Footprints

Before moving to PCB layout:

1. Ensure all components have appropriate footprints assigned
2. Use the “Change” tool to modify footprints if necessary
3. Verify that component values are correctly set

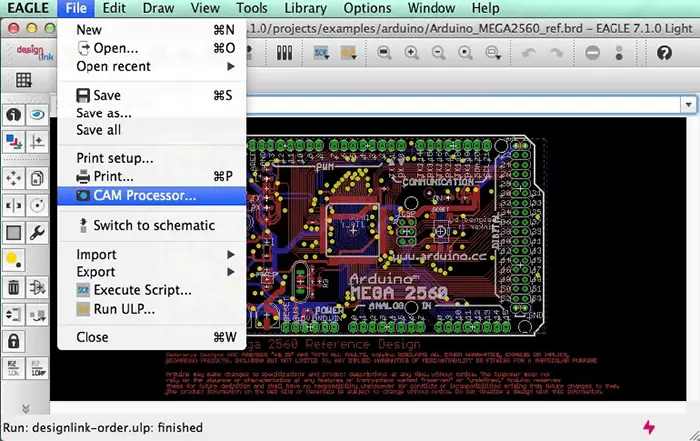

Generating a Board File

To create a PCB layout from your schematic:

1. Go to “File” > “Switch to Board”
2. EAGLE will create a new board file based on your schematic
3. All components will be placed in a pile, ready for arrangement

Best Practices for Schematic Drawing

1. Use consistent naming conventions for components and nets
2. Organize your schematic logically, grouping related components
3. Use buses and named nets to reduce clutter
4. Include ample documentation and notes
5. Regularly save your work and create backups
6. Use version control for collaborative projects

Troubleshooting Common Issues

Dealing with Library Problems

If you encounter missing components:

1. Verify that the required libraries are installed and activated
2. Update your libraries to the latest version
3. Consider creating custom components for specialized parts

Resolving Connectivity Issues

If components aren’t connecting properly:

1. Check that wires are properly snapped to component pins
2. Verify that junctions are created where needed
3. Use the “Show” tool to highlight connected nets
