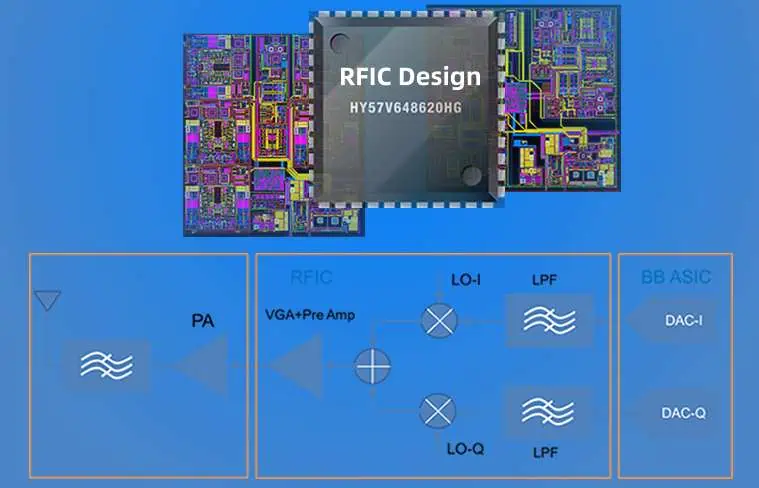

Introduction to RFIC Design

RFIC stands for Radio Frequency Integrated Circuit. As the name suggests, RFICs are a type of integrated circuit (IC) designed to operate at radio frequencies typically between 10 MHz to 100 GHz.

RFICs find widespread use in diverse applications including:

  • Mobile devices
  • Wireless communications
  • Radar systems
  • Broadband data links
  • Satellite technology
  • Biomedical devices

And many other uses across consumer, industrial, medical, defense, and aerospace segments.

The RFIC market has experienced massive growth recently, reaching over $$18 billion in 2022. Advancements in fabrication technology enabling higher levels of IC integration and performance are key catalysts behind increasing RFIC adoption.

RFIC Architectures

There are two primary architectures used when designing RFICs:

Monolithic RFICs

  • Entire system integrated into a single semiconductor die
  • Highest performance and integration density
  • Leverages advanced lithography nodes
  • More expensive and complex fabrication

Multi-Chip Module RFICs

  • Combines multiple separate ICs in a single package
  • Enables integration of incompatible processes
  • Cheaper and simpler manufacturing
  • Larger footprint with lower performance density

Within these architectures, common RFIC building blocks include:

LNAs – Low Noise Amplifiers
Mixers – Frequency Mixers
VCOs – Voltage Controlled Oscillators
Filters – Band Select Filters SwitchesRF Signal Switches PAsPower Amplifiers

And more. These circuits blocks are designed on chip to achieve RFIC systems targeting various applications.

RFIC Design Process

Creating an RFIC involves sophisticated chip design spanning modeling, simulation, layout, verification, prototyping, and testing phases.

High-Level RFIC Design Stages:

  1. System Analysis
  2. Circuit Design
  3. Layout Implementation
  4. Verification and Prototyping
  5. Packaging and Production

Next, we’ll explore each stage more closely.

1. System Analysis

  • Define application requirements
    • Frequencies, bandwidth, gain, linearity, etc.
  • Decompose into functional blocks
  • Model system performance
    • Noise figure, distortion, data rates
  • Explore architectural options
    • Frequency plan, topology, division of functions

Essentially converting specs into a high-level RF system blueprint.

2. Circuit Design

With the system architecture set, the process moves to the transistor level.

This involves extensive analog and RF circuit simulation using specialized EDA tools like Cadence AWR, Keysight ADS, ANSYS, and Synopsys to:

  • Design, optimize, and verify individual IC blocks to meet target specs
    • LNAs, VCOs, mixers, filters etc.
  • Simulate overall system performance across process, voltage, temperature (PVT)
  • Ensure adequate margin to specification over all conditions
  • Send design to layout once performance targets achieved

Circuit simulation and analysis represents the most intense and time-consuming portion of RFIC development.

3. Layout Implementation

The physical layout phase converts the circuit schematics into an IC mask layout file used for fabrication. This involves key steps like:

Floorplanning – Mapping functional blocks and routing to the chip area

Place and Route – Positioning and connecting transistor devices and components

Verification – Confirming layout matches circuit design using layout vs. schematic (LVS) checks and design rule checks (DRC)

Extraction – Creating parasitics netlist for post-layout simulation

Today’s EDA tools automate much of the implementation while enabling engineers to optimize custom layout circuits like high-performance matching networks.

4. Verification and Prototyping

With the layout complete, the design undergoes further verification and prototypes are built:

Post-Layout Simulation – Incorporating layout parasitics in circuit simulation

DRC/LVS – Final design rule and layout vs. schematic verification

Initial Prototypes – Fabricating design on foundry process and testing key parameters

Optimization – Refining design based on silicon results to achieve performance targets

This stage often requires several fabrication iterations using multi-project wafer services to enable rapid prototyping at low cost.

5. Packaging and Production

For the final production version:

Qualification – Rigorously testing design over temperature, voltage etc. to validate robustness

Reliability Testing – Stress testing with burn-in, thermal cycling, vibration and other reliability screening

Data Sheets – Documenting electrical performance parameters

Packaging – Encapsulating die into production packages

Volume Manufacturing – Transferring qualified design to high-volume foundry production

Thorough qualification and reliability assessment is critical prior to ramping volume manufacturing.

This summarizes the key phases of RFIC development spanning conception through volume production. Next we’ll explore some of the advanced methodologies and technologies used in cutting-edge RFIC design today.

Advanced RFIC Methodologies

Modern RFIC design leverages sophisticated techniques to achieve maximum performance and integration. Some key examples include:

Radio Architectures

Traditional narrowband radios are giving way to flexible multi-standard architectures using software-defined radio (SDR) and cognitive radio platforms. These are implemented primarily using CMOS SOCs enabling adaptable, reconfigurable systems with scalable data rates.

Radio TypeDescription
NarrowbandFixed analog hardware targeting specific protocol
SDRReconfigurable mixed-signal system for multi-mode operation
CognitiveSelf-learning adaptable radio sensing environment


Silicon-germanium (SiGe) heterojunction bipolar transistors provide extremely high fT/fMAX enabling mmWave applications above 100 GHz. SiGe is quickly displacing III-V compound semiconductors in state-of-the-art transceiver designs.

Silicon Photonics

Using silicon waveguides, high-speed optical interconnects are integrated alongside digital SOC ICs enabling low loss, low power data transfer. This technology is ideal for channels between integrated antenna arrays and baseband processing.

3D Integration

Vertically stacking ICs or chiplets using advanced packaging techniques provides higherintegration density. This expands Moore’s Law beyond the reticle limit for next-generation microwave and mmWave systems.

These kinds of advanced design techniques allow modern RFICs to achieve unprecedented levels of performance to meet the needs of emerging wireless applications.

RFIC Foundry Processes

RFICs leverage specialized IC fabrication processes to deliver high frequency operation and high passive component performance. Some leading foundry processes include:

TSMC16nm FinFET100+ GHzCu MiM caps, thick Cu inductorsCutting-edge digital CMOS process with RF add-ons
TowerJazzSBC18H380 GHzHigh-Q passivesSiGe BiCMOS process optimized for analog/RF
GlobalFoundries45RFSOI100+ GHzCu MiM caps, thin film resistorsFD-SOI process with LDMOS transistors
WIN SemiconductorGaAs pHEMPT150 GHzThin film caps and resistorsHigh frequency GaAs process

These specialty processes offer much higher performance than standard CMOS logic technology through techniques like:

  • Advanced MIM capacitors
  • Thick copper inductors
  • Low loss substrates – SOI, sapphire etc.
  • High speed transistors – SiGe, GaAs

The expanding portfolio of RFIC processes enables addressing a vast range of wireless applications with optimized technologies.

EDA Tools

Modern EDA software provides a rich toolset for every stage of the RFIC design flow:

Key Capabilities:

  • Circuit Simulation
  • EM Analysis
  • Layout Synthesis
  • Design Rule Checking
  • Post-Layout Verification
  • EDA/Flow Management

EDA enables automation to greatly accelerate RFIC development along with high-level optimization and analysis capabilities. Advanced EDA solutions can slash RFIC project timelines by 6x or more.

RFIC Applications

RFT Testing

The demand for integrated RF capability is booming leading to massive growth in RFICs across nearly every market segment:

5G Communications – Smartphone front-end modules, small cell base stations, infrastructure

Automotive Radar – Collision detection and avoidance systems

Satellite Networks – Phased array antennas, transceivers

Wireless Connectivity – WiFi, Bluetooth, Zigbee, LoRa

Medical – Wireless patient monitoring, implants

DefenseElectronic warfare, unmanned systems

And much more. RFIC innovation and adoption will continue its rapid acceleration to meet the needs of increasingly connected technology.


In this article we explored:

  • RFIC architectures – monolithic vs. multi-chip
  • Core building blocks – LNAs, PAs, filters etc.
  • Multi-stage design process – from planning to production
  • Advanced design techniques – SDR, photonics, 3D
  • Specialty foundry processes – GaAs, SiGe, SOI
  • Critical role of EDA tools
  • High-growth applications and end markets

As wireless capability becomes integral across nearly all segments from consumer to industrial, RF chip content grows steadily. Advancements in integration, architecture innovation, new materials like SiGe and GaN, and sophisticated EDA toolsets fuel ongoing RFIC performance improvements to enable next-gen wireless systems.

For electrical engineers looking to work on cutting-edge technology while leveraging fundamental analog/RF disciplines, RFIC design offers a very compelling career path. The future is very bright for RF as connectivity proliferates across every aspect of society!

Frequently Asked Questions

Here are answers to some common RFIC questions:

Q: What are some key differences designing RFICs vs digital SOC ICs?

A: RFIC design deals primarily with analog, high-frequency circuits vs digital logic. It requires specialized architectures, transistors, and fabrication processes to achieve gigahertz operation as well as intensive use of electromagnetic simulation. RFICs also leverage high-performance passives like inductors and MIM capacitors which are not found in digital SOCs.

Q: Why are new specialty foundry processes required for mmWave RFICs?

A: Achieving very high frequencies exceeding 100 GHz places stringent demands like ultra-low parasitics and low loss substrates which exceed standard CMOS capabilities. Processes leveraging SOI, SiGe, and III-Vs enable breakthrough mmWave performance.

Q: What role do advanced IC packaging play in RFICs?

A: Packaging is crucial for RFICs to maintain signal integrity at high frequencies while managing thermal and electromagnetic issues. Techniques like flip-chip interconnect, embedded resistive substrates, multi-die modules and 3D stacking enable cutting-edge RFIC implementations.

Q: What are some of the biggest challenges in RFIC design today?

A: Packaging complexity, antenna integration, modeling and simulation burdens, and design tool runtimes are key issues. As more wireless capability gets integrated into advanced CMOS, RF must keep pace driving a need for better EDA solutions. Thermal and power density constraints also create difficulties.

Q: Which industry segments are driving the most RFIC innovation?

A: 5G communications, automotive radar ADAS systems, satellite networks, and aerospace/defense applications are pushing wireless capability into new frontiers requiring RFIC innovation. But nearly all segments from consumer IoT to industrial to medical leverage RFICs to enable connectivity.
