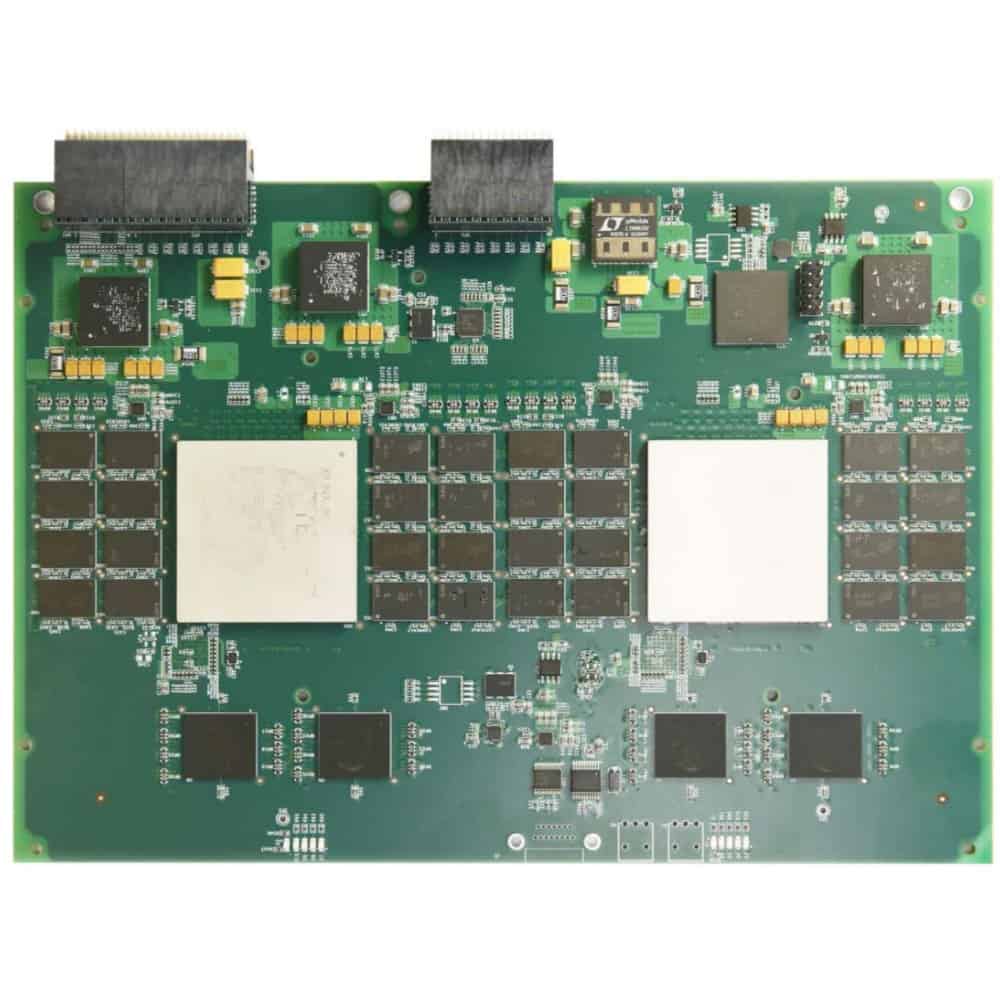

Signal Processor Motherboard Manufacturing and Assembly
Sale!

Signal Processor Motherboard Manufacturing and Assembly

Original price was: $348.00.Current price is: $345.00.

Category:

● Standard 6U VPX board;
● FPGA model: XC7VX690T, FPGA resource utilization: can be greater than 70%;
● FPGA resource utilization: can be greater than 70%;
● DDR3 Array: 4 groups of DDR3, each group 8Gbyte @ 64bit;
● DDR3 rate: ≥ 1000 Mb/s;
● Single board QDRII+: 4 pieces of 288Mbit each;
● Data interface: High-speed serial @ 6Gbps;
● Control interface: x4 PCI-E;
● Temperature range: -55℃～70℃;
● Whole board power consumption: 100W max;

Signal Processor Motherboard Design Tips

Designing a motherboard for a signal processor requires careful consideration of various factors to ensure optimal performance, reliability, and efficiency. Here are some essential tips to guide you through the design process:

1. Component Selection and Placement

Choosing the Right Components

  • Select high-quality, compatible components that meet your performance requirements.
  • Consider factors such as power consumption, heat dissipation, and signal integrity when choosing components.
  • Opt for components with a proven track record of reliability and longevity.

Strategic Component Placement

  • Place high-speed components close to each other to minimize signal path lengths.
  • Keep sensitive analog components away from noisy digital circuits.
  • Consider the thermal requirements of each component and ensure adequate spacing for heat dissipation.

2. Power Distribution and Management

Power Supply Design

  • Design a robust power supply system that can handle the power requirements of all components.
  • Implement voltage regulation circuits to ensure stable power delivery to sensitive components.
  • Consider using multiple power planes for different voltage levels to minimize noise coupling.

Power Integrity

  • Use decoupling capacitors near power pins of ICs to reduce noise and maintain signal integrity.
  • Implement power sequencing to ensure components power up and down in the correct order.
  • Consider implementing power monitoring and management features for improved efficiency and reliability.

3. Signal Integrity and EMI Considerations

Signal Routing

  • Use controlled impedance traces for high-speed signals to maintain signal integrity.
  • Minimize the use of vias in critical signal paths to reduce signal degradation.
  • Implement proper termination techniques for high-speed signals to prevent reflections.

EMI Mitigation

  • Use ground planes and power planes to provide low-impedance return paths for signals.
  • Implement proper shielding techniques for sensitive analog circuits and high-speed digital interfaces.
  • Consider using EMI suppression components such as ferrite beads and common-mode chokes where necessary.

4. Thermal Management

Heat Dissipation

  • Implement proper thermal management solutions such as heatsinks, fans, or thermal pads for heat-generating components.
  • Use thermal simulations to identify potential hotspots and optimize component placement.
  • Consider the use of thermal vias to improve heat transfer from components to copper planes.

Airflow Design

  • Design the board layout to promote efficient airflow across heat-generating components.
  • Consider the use of forced-air cooling solutions for high-power applications.
  • Implement temperature monitoring and fan control mechanisms for adaptive thermal management.

5. Testability and Debugging

Test Points and Debug Interfaces

  • Include test points for critical signals to facilitate debugging and testing.
  • Implement standard debugging interfaces such as JTAG or SWD for processor-based designs.
  • Consider including LEDs or other visual indicators for quick status checks.

Boundary Scan and Built-in Self-Test

  • Implement boundary scan capabilities for improved testability of digital circuits.
  • Consider incorporating built-in self-test (BIST) features for critical functional blocks.

6. PCB Stack-up and Material Selection

Layer Stack-up

  • Design an appropriate layer stack-up that balances signal integrity, power distribution, and cost considerations.
  • Use dedicated ground and power planes to improve signal integrity and reduce EMI.
  • Consider using buried or blind vias for high-density designs.

Material Selection

  • Choose appropriate PCB materials based on the required electrical and thermal properties.
  • Consider factors such as dielectric constant, loss tangent, and thermal conductivity when selecting materials.
  • Use high-speed PCB materials for critical signal paths to minimize signal loss and distortion.

7. Design for Manufacturing and Assembly

DFM Considerations

  • Follow design for manufacturing (DFM) guidelines to ensure producibility and yield.
  • Adhere to minimum trace widths, spacing, and via sizes specified by your PCB manufacturer.
  • Consider panelization and fiducial marks for efficient PCB assembly.

Component Placement for Assembly

  • Ensure adequate spacing between components for pick-and-place machines and manual assembly.
  • Use consistent component orientations to simplify the assembly process.
  • Consider the use of solder paste stencils for surface-mount component assembly.

By following these design tips, you can create a robust and high-performance signal processor motherboard that meets your specific requirements while ensuring manufacturability and long-term reliability.
