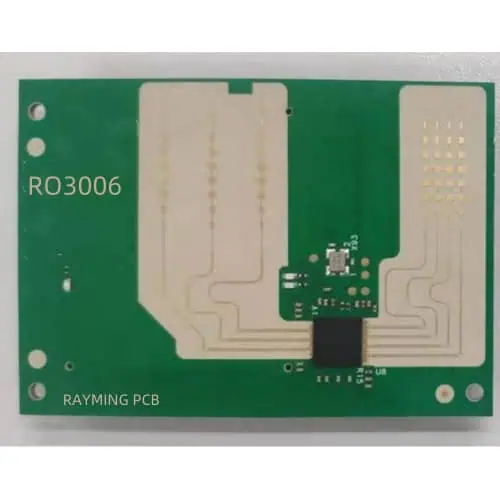

Matera: Rogers RO3006
Layer: 6 Layer PCB
Dielectric constant: 6.15 +/- .15
Thickness: 1.2mm
Technical characteristics：
- Dk of 6.15 +/- .15
- Dissipation factor of .0020 at 10GHz
- Low X, Y and Z axis CTE of 17, 17 and 24 ppm/°C, respectively
Advantage of RO3006 Material
- ISO 9001 Certified
- Uniform mechanical properties with other RO3000 Series laminates allows for multi-layer board designs
- Cost effective option
Data Sheet of RO3006 Series :
RO3000 Laminate Data Sheet RO3003 – RO3006 – RO3010 – RO3035
Estimate RO3006 PCB Cost, Pls send PCB File and Bom List to Sales@raypcb.com with Requirement.
What is RO3006 Laminates PCB?
RO3006 laminates are a type of specialized material used in the manufacturing of high-frequency printed circuit boards (PCBs). These laminates are designed to meet the demanding requirements of microwave and millimeter-wave applications, offering excellent electrical and mechanical properties that make them ideal for use in various industries, including telecommunications, aerospace, and defense.
Composition and Properties
Material Composition
RO3006 laminates are composed of a unique blend of materials that contribute to their exceptional performance characteristics. The core of these laminates consists of a ceramic-filled polytetrafluoroethylene (PTFE) composite, which provides a balance between electrical properties and mechanical stability.
Key Properties
Electrical Properties
RO3006 laminates are known for their outstanding electrical properties, which include:
- Low dielectric constant (Dk)
- Low dissipation factor (Df)
- Excellent dielectric stability over a wide range of frequencies
- Minimal signal loss at high frequencies
Mechanical Properties
In addition to their electrical characteristics, RO3006 laminates offer several mechanical advantages:
- Dimensional stability
- Low coefficient of thermal expansion (CTE)
- Good thermal conductivity
- Resistance to moisture absorption
Comparison with Other Laminates
To better understand the advantages of RO3006 laminates, let’s compare them to some other common PCB materials:
| Property | RO3006 | FR-4 | PTFE |
|---|---|---|---|
| Dielectric Constant (Dk) | 6.15 ± 0.15 | 4.3-4.7 | 2.1-2.6 |
| Dissipation Factor (Df) | 0.0018 | 0.02 | 0.0004 |
| Thermal Conductivity (W/m/K) | 0.61 | 0.3 | 0.2 |
| CTE (ppm/°C) | 17 | 50-70 | 100-200 |
| Moisture Absorption (%) | 0.06 | 0.1-0.5 | <0.02 |
As we can see from the table, RO3006 laminates offer a unique combination of properties that make them suitable for high-frequency applications where standard FR-4 materials fall short, while also providing better dimensional stability compared to pure PTFE laminates.
Applications of RO3006 Laminates PCBs
Telecommunications
Base Station Antennas
RO3006 laminates are extensively used in the production of base station antennas for cellular networks. Their low loss characteristics and stability over a wide frequency range make them ideal for 4G and 5G applications.
Satellite Communications
The aerospace industry relies on RO3006 laminates for satellite communication systems. The material’s low outgassing properties and resistance to harsh environmental conditions make it suitable for space applications.
Defense and Radar Systems
Phased Array Radars
RO3006 laminates are crucial in the development of phased array radar systems. Their consistent dielectric properties allow for precise beam forming and steering in advanced radar applications.
Electronic Warfare Systems
The low signal loss and high-frequency performance of RO3006 laminates make them valuable in electronic warfare systems, where rapid and accurate signal processing is essential.
Automotive Radar
With the increasing adoption of advanced driver assistance systems (ADAS) and autonomous vehicles, RO3006 laminates are finding applications in automotive radar systems. Their stability across temperature ranges and resistance to automotive fluids make them suitable for this demanding environment.
Manufacturing Process
Lamination
The manufacturing process of RO3006 laminates involves carefully controlled lamination techniques. The ceramic-filled PTFE composite is pressed and heated under specific conditions to achieve the desired thickness and consistency.
Copper Cladding
High-quality copper foil is bonded to the laminate surface through a specialized process that ensures excellent adhesion without compromising the electrical properties of the material.
Quality Control
Strict quality control measures are implemented throughout the manufacturing process to ensure consistency in electrical and mechanical properties. This includes:
- Dielectric constant testing
- Dissipation factor measurements
- Dimensional stability checks
- Surface roughness evaluation
Design Considerations
When working with RO3006 laminates, PCB designers must take into account several factors to optimize performance:
Impedance Control
Careful attention must be paid to impedance control, as the high dielectric constant of RO3006 can affect trace widths and spacing requirements.
Thermal Management
While RO3006 has good thermal conductivity, proper thermal management techniques should be employed in high-power applications to ensure optimal performance and longevity.
Signal Integrity
To take full advantage of the low-loss characteristics of RO3006, designers should implement best practices for high-frequency signal integrity, including:
- Minimizing trace lengths
- Using appropriate grounding techniques
- Controlling via placement and design
Future Trends and Developments
As the demand for high-frequency and high-performance PCBs continues to grow, we can expect to see further developments in RO3006 laminates and similar materials:
- Enhanced thermal management capabilities
- Improved integration with other PCB materials
- Development of thinner laminates for more compact designs
- Advancements in manufacturing processes to reduce costs
Conclusion
RO3006 laminates represent a critical material in the world of high-frequency PCBs. Their unique combination of electrical and mechanical properties makes them indispensable in applications where performance and reliability are paramount. As technology continues to advance, the role of specialized materials like RO3006 in enabling next-generation electronic systems will only become more significant.
FAQ
- Q: What makes RO3006 laminates different from standard FR-4 materials? A: RO3006 laminates offer lower dielectric loss, better frequency stability, and superior mechanical properties compared to FR-4, making them ideal for high-frequency applications.
- Q: Can RO3006 laminates be used in conjunction with other PCB materials? A: Yes, RO3006 laminates can be integrated with other materials in multilayer PCB designs, though special considerations may be needed for bonding and impedance matching.
- Q: Are RO3006 laminates suitable for flexible PCB applications? A: While RO3006 laminates are primarily designed for rigid PCBs, there are flexible variants available for applications requiring both high-frequency performance and flexibility.
- Q: How does the cost of RO3006 laminates compare to other PCB materials? A: RO3006 laminates are generally more expensive than standard FR-4 materials due to their specialized properties and manufacturing process. However, their superior performance in high-frequency applications often justifies the cost.
- Q: What are the environmental considerations when using RO3006 laminates? A: RO3006 laminates are PTFE-based and do not contain hazardous substances restricted by RoHS regulations. However, special disposal considerations may be necessary due to their fluoropolymer content.
