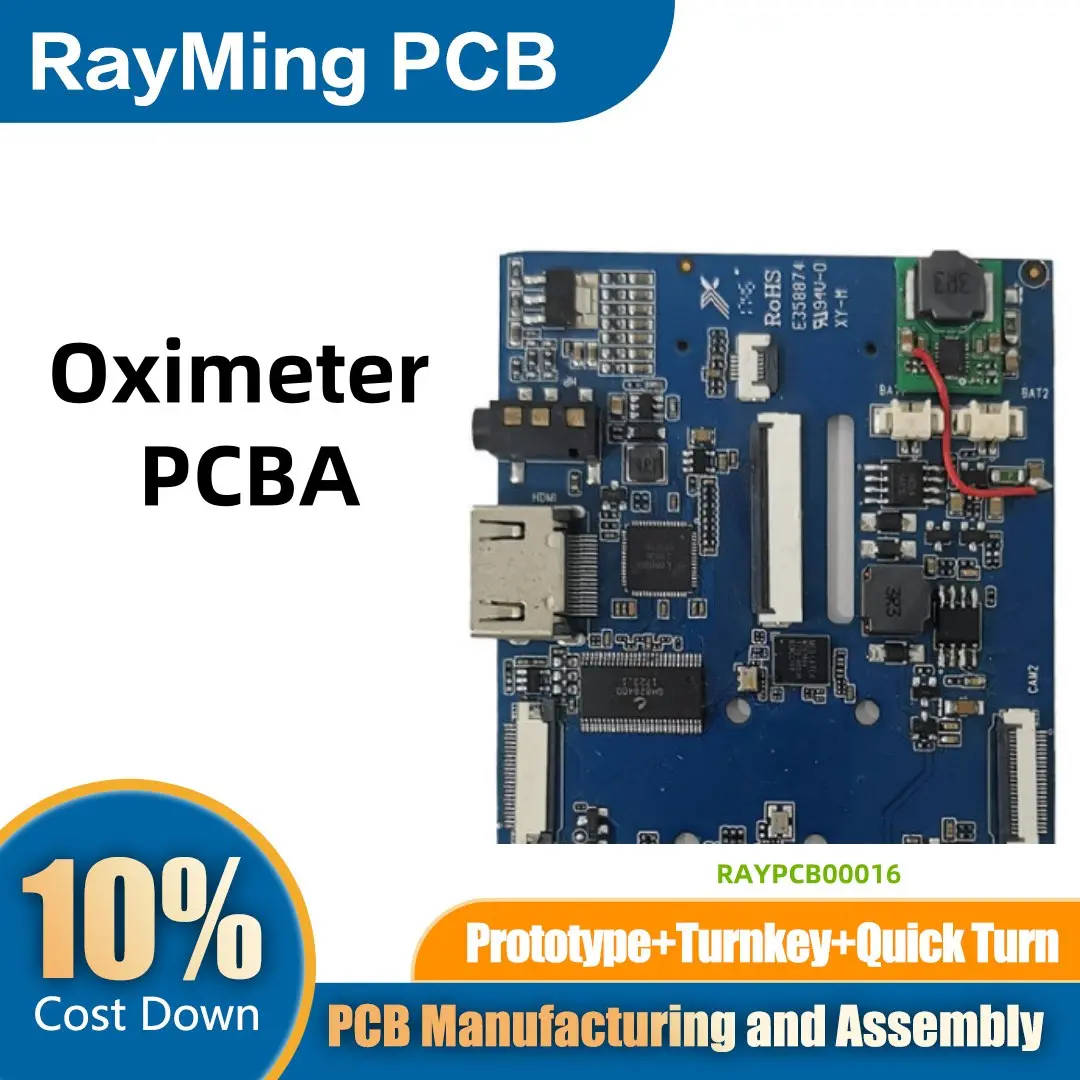

RayMing PCBA for Blood Oxygen Detector

Key Components

1. Microcontroller: e.g., ARM Cortex-M4 or similar

   • Handles signal processing and calculations
   • Controls other components
   • Manages power

2. Optical Sensors:

   • Red LED (wavelength ~660nm)
   • Infrared LED (wavelength ~940nm)
   • Photodiode detector

3. Analog Front End (AFE):

   • Amplifiers for sensor signals
   • Filters to remove noise
   • Analog-to-Digital Converter (ADC)

4. Power Management:

   • Battery management IC
   • Voltage regulators
   • Power switch

5. Display:

   • OLED or LCD display
   • Display driver IC

6. User Interface:

   • Buttons for user input
   • LED indicators

7. Connectivity (optional):

   • Bluetooth Low Energy (BLE) module
   • USB interface for data transfer and charging

PCB Considerations

1. Layer Stack: 4-layer PCB recommended

   • Top layer: Components and signal routing
   • Inner layer 1: Ground plane
   • Inner layer 2: Power plane
   • Bottom layer: Components and signal routing

2. Component Placement:

   • Keep analog and digital sections separate
   • Place decoupling capacitors close to ICs
   • Keep sensitive analog traces short
   • Consider thermal management for power components

3. Signal Integrity:

   • Use controlled impedance for high-speed signals
   • Minimize crosstalk between analog and digital sections
   • Consider EMI/EMC guidelines

4. Power Distribution:

   • Use wide traces for power lines
   • Implement star grounding technique
   • Consider separate analog and digital grounds, joined at a single point

5. Mechanical Considerations:

   • Design for ergonomics and user comfort
   • Include mounting holes for enclosure
   • Plan for battery placement and accessibility

Firmware Considerations

1. Implement robust signal processing algorithms
2. Calibration routines for accurate measurements
3. Power management for extended battery life
4. User interface logic
5. Data logging and connectivity features (if applicable)

Safety and Regulatory Considerations

1. Comply with relevant medical device standards (e.g., ISO 13485)
2. Implement electrical safety measures
3. Consider biocompatibility of materials
4. Plan for EMC/EMI testing and certification
5. Prepare documentation for regulatory submissions (FDA, CE marking, etc.)
