Oxygen monitors play a crucial role in various industries, from medical applications to environmental monitoring. The design and assembly of these devices involve intricate processes, combining electronic components, sensors, and sophisticated software. This article delves into the design considerations of oxygen monitors and the process of PCBA (Printed Circuit Board Assembly) Full Box Build Assembly.
Oxygen Monitor Design
Sensor Selection
The heart of any oxygen monitor is its sensor. Designers typically choose between electrochemical and optical sensors. Electrochemical sensors are cost-effective and suitable for portable devices, while optical sensors offer higher accuracy and longer lifespan, making them ideal for stationary industrial applications.
Microcontroller Integration
A microcontroller serves as the brain of the oxygen monitor. It processes data from the sensor, controls the display, and manages power. Designers often opt for low-power microcontrollers to extend battery life in portable units.
Display and User Interface
The display is crucial for relaying information to the user. LCD or OLED displays are common choices, offering clear readability and low power consumption. The user interface should be intuitive, with easily accessible buttons or touchscreen controls for adjusting settings and navigating menus.
Power Management
Efficient power management is essential, especially for portable monitors. This includes implementing sleep modes, optimizing sensor polling rates, and using low-power components. For stationary units, considerations for stable power supply and potential backup power sources are important.
Calibration and Accuracy
To ensure reliable readings, oxygen monitors must be easily calibrated. Designers incorporate calibration routines into the firmware and may include auto-calibration features for user convenience.
Environmental Considerations
Oxygen monitors must function accurately in various environments. This requires careful consideration of operating temperature ranges, humidity resistance, and potentially, protection against dust and water ingress (IP rating).
Connectivity
Modern oxygen monitors often include connectivity features such as Bluetooth, Wi-Fi, or cellular capabilities for data logging, remote monitoring, and integration with other systems.
PCBA Full Box Build Assembly
The PCBA Full Box Build Assembly process brings together all components of the oxygen monitor into a finished product. This process involves several key stages:
PCB Design and Fabrication
The process begins with designing the Printed Circuit Board (PCB) layout. This involves careful component placement and routing to minimize electromagnetic interference and optimize performance. Once designed, the PCB is fabricated using specialized equipment.
Component Sourcing
All necessary components, including the microcontroller, sensor, display, and various passive components, are sourced. Quality control at this stage is crucial to ensure all parts meet specifications.
PCB Assembly
Components are mounted onto the PCB using either through-hole or surface-mount technology (SMT). For most modern oxygen monitors, SMT is preferred due to its space efficiency and suitability for automated assembly.
Soldering and Inspection
After component placement, the board undergoes reflow soldering. This is followed by thorough inspection, often using Automated Optical Inspection (AOI) systems and X-ray inspection for hidden solder joints.
Functional Testing
Each assembled PCB undergoes functional testing to ensure all components are working correctly. This includes sensor response tests, display functionality, and communication checks.

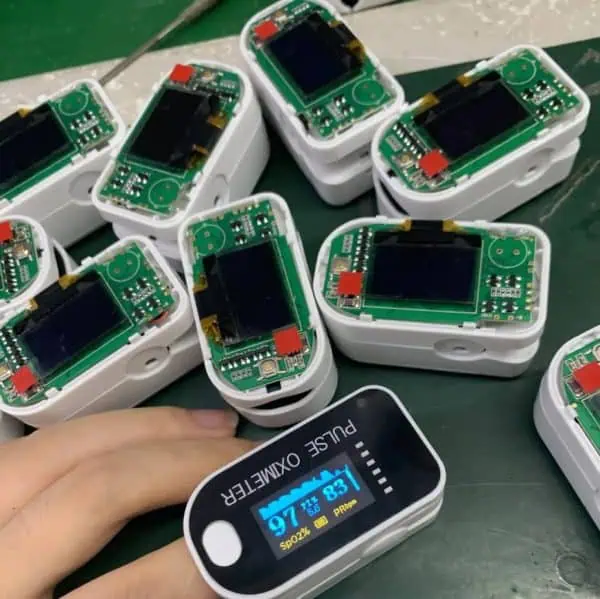

Enclosure Assembly
The tested PCB is then installed into the device’s enclosure. This step may involve additional components such as batteries, displays, and input devices.
Final Assembly and Quality Control
All remaining components are assembled, including attaching any external sensors, installing firmware, and applying necessary labels and markings. The fully assembled unit undergoes comprehensive quality control checks.
Calibration and Configuration
Before packaging, each oxygen monitor is calibrated to ensure accuracy. This may involve exposure to known oxygen concentrations and adjusting the device’s settings accordingly.
Packaging and Shipping
Finally, the completed oxygen monitors are packaged with any necessary accessories, user manuals, and warranty information before being shipped to distributors or end-users.
Conclusion
The design and assembly of oxygen monitors require a multidisciplinary approach, combining expertise in electronics, sensor technology, software development, and manufacturing processes. The PCBA Full Box Build Assembly process ensures that each unit meets stringent quality and performance standards. As technology advances, we can expect to see oxygen monitors becoming more accurate, compact, and feature-rich, further enhancing their utility across various applications.
