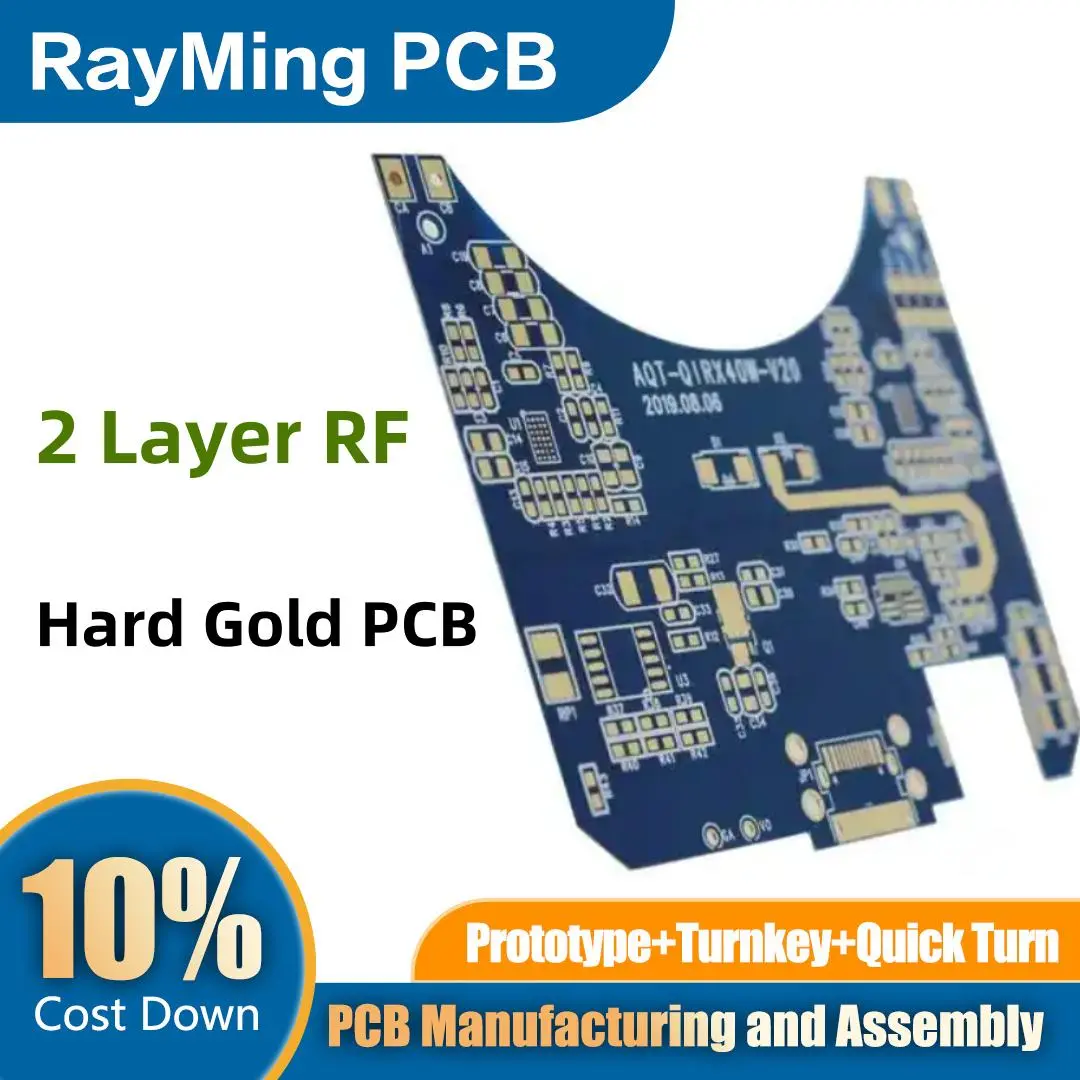

A 2-layer RF hard gold PCB is a specialized printed circuit board designed for high-frequency applications that demand superior performance and reliability. The two-layer construction consists of a substrate material, typically FR-4 or a high-frequency laminate, with copper layers on both sides. This design allows for efficient signal routing and improved electromagnetic shielding.
Estimate Your PCB Cost Now!
Trusted by 10,000+ electronics engineers worldwide โ building PCBs since 2005.
The hard gold plating is a crucial feature of these PCBs, providing exceptional durability, conductivity, and corrosion resistance. The gold layer, typically 30 microinches thick or more, ensures optimal signal transmission and minimizes signal loss at high frequencies. This makes it ideal for RF applications in telecommunications, aerospace, and military equipment.
Estimate Your PCB Cost Now!
Trusted by 10,000+ electronics engineers worldwide โ building PCBs since 2005.
The PCB’s layout is carefully optimized to minimize signal interference and maintain impedance control. Techniques such as microstrip and stripline transmission lines are often employed to ensure signal integrity. Ground planes and vias are strategically placed to reduce electromagnetic interference and improve overall performance.
These PCBs are particularly well-suited for applications involving antennas, amplifiers, filters, and other RF components operating at frequencies ranging from MHz to GHz.
