Preheating is an important step prior to soldering PCB assemblies. It involves raising the board temperature to a desired level before introducing solder. Proper preheating minimizes thermal stresses, improves solder joint quality, and prevents damage during hand soldering or reflow.
This article provides a comprehensive overview of PCB preheating methods, equipment, temperature profiling, and best practices. We’ll review conduction, convection, infrared, laser, and other preheat technologies along with tips for process control and optimizing results. After reading, you’ll be equipped with expert knowledge on preheating PCBs for flawless soldering.
Purposes of PCB Preheating
There are several key reasons PCBs are preheated before soldering:
- Minimizes thermal shock – Avoiding sudden temperature spikes when solder applied.
- Reduces thermal gradients – Heat is evenly distributed to balance temps across the board.
- Activate soldering flux – Flux needs to reach working temperature to remove oxides.
- Drive off volatiles – Moisture and other contaminants are driven away.
- Improve wetting – Preheating thins solder paste promoting better wetting and flow.
- Prevent delamination – Gradually heating PCB minimizes separation of material layers.
- Enable low-temperature solder alloys – Allows solders with tight melting ranges.
Preheat is an essential first step to soldering success. Next, let’s look at preheat technologies.
PCB Preheat Methods
There are various methods used for preheating PCB assemblies:

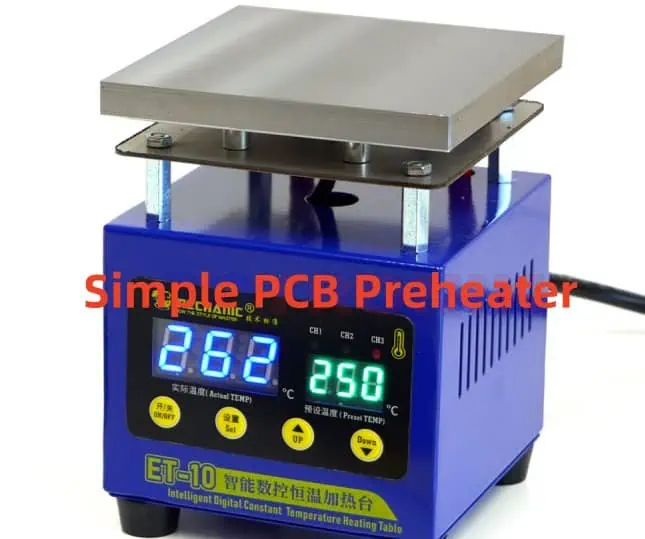

Uses direct contact between the PCB and a hot surface to transfer heat:
- Heated metal plates or platens are commonly used.
- Can be built into soldering stations or stand-alone.
- Provides fast, even heating through conduction.
- Limited to accessible board surfaces that can contact the plate.

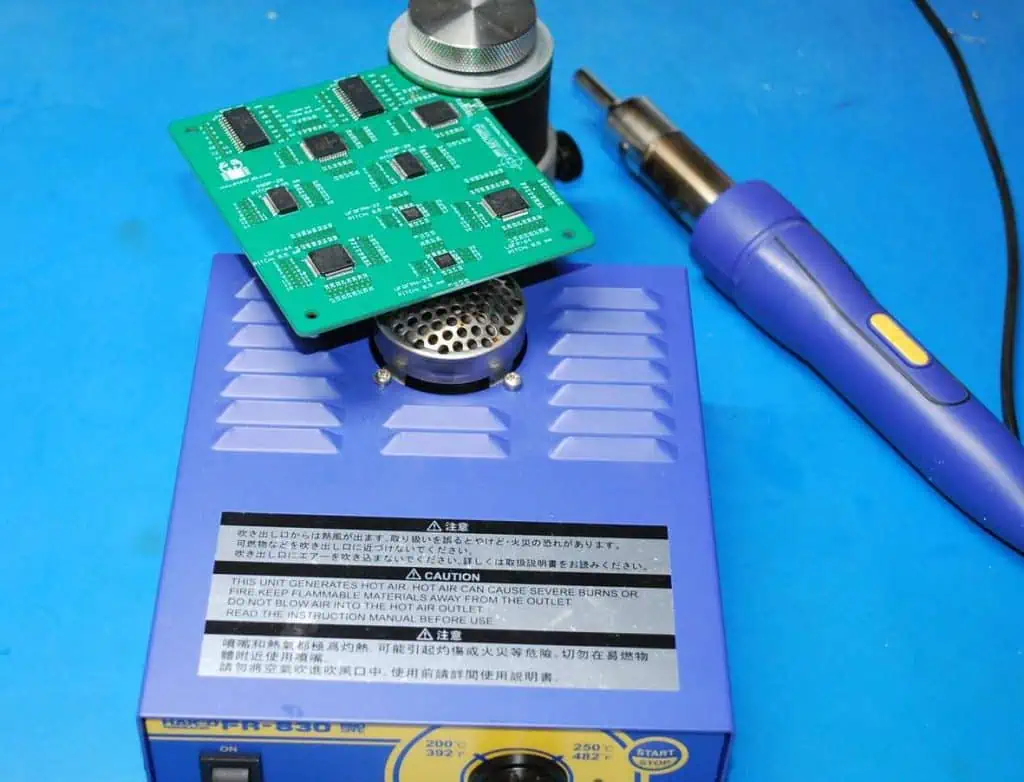

Heats the board via forced air:
- Typically uses heated air or nitrogen blown onto surfaces.
- Enclosed convection ovens surround boards with hot air.
- Provides general, uniform heating but slower than conduction.
- Reaches areas not practical for contact methods.

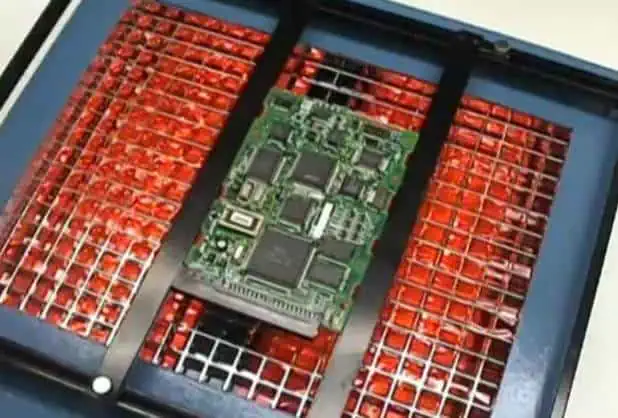

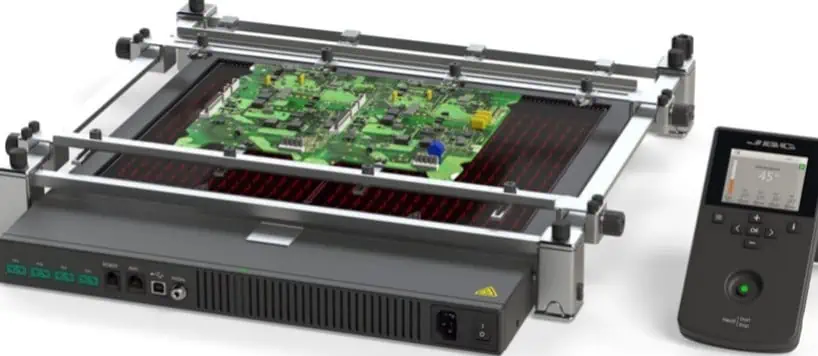

Leverages IR radiation to heat boards:
- IR emitters or lamps expose boards to intense IR energy.
- Very rapid heating achieves quick temperature ramps.
- Line-of-sight process may cause uneven heating.
- Risk of warping or damaging temperature sensitive components.
- Minimal oxidizing compared to convection heating.
Focuses laser energy to rapidly heat localized areas:
- Laser is rastered to scan heating across the PCB surface.
- Enables precise control of heat profiles.
- Excellent for small regions without disturbing nearby components.
- Complex systems with optics for beam positioning and intensity control.
Uses Peltier effect for precision heating:
- Applies current across junction of two materials to heat or cool.
- Compact solid-state heat pumps with no moving parts.
- Permits very precise temperature control.
- Limited heat pumping capacity restricts area/speed.
Dielectric heating of materials through microwave energy absorption:
- Exposes board to tuned microwave frequencies.
- Very rapid heating but tends to be uneven.
- Selective heating of different materials across the board.
- Requires microwave-transparent holding fixtures.
- Risk of arcing with metal components.
This covers the primary preheat methods – from contact plates to lasers to microwaves. Next, we’ll go over system design considerations.
PCB Preheat System Design
Several factors go into designing effective PCB preheat processes:
- Temperature range – Match capabilities to polymer glass transition temps.
- Heating rate – Allow ramps up to 4-5°C/sec for lead-free solder.
- Uniformity – Minimize gradients across boards for even heating.
- Process control – Closed-loop PID algorithms for precision setpoints.
- Atmosphere – Inerted N2 preferred over air to reduce oxidation.
- Fixturing – Hold boards precisely while avoiding shadowing or hotspots.
- Cooling – Active cooling can accelerate cycle times.
- Automation – Handling robotics integrate preheat into production.
Optimized preheat systems deliver repeatable, reliable results tailored to each application need.
Solder Paste Reflow Profiling
Reflow ovens used for soldering SMT boards rely on tightly controlled preheat stages:
- Preheat ramp – Gradual temperature increase to minimize shock stress.
- Soak zone – Dwell time for even heating and solder paste activation.
- Reflow peak – Above liquidus temperature to fully melt solder.
- Cool down – Controlled for a smooth transition and effective joint solidification.
Precisely tuned reflow profiling is key to defect-free soldering results.
Hand Soldering Preheat Guidelines
Preheating is also critical prior to hand soldering boards:
- Use a low-power heat gun or convection heater to avoid overheating.
- Keep nozzle moving over the area for even heating.
- Ensure prereflow of solder paste before applying iron.
- Let preheated joint cool briefly before soldering to avoid cracking components.
- Shield nearby temperature-sensitive parts with kapton tape or silicone pads.
Proper preheating technique allows successful hand soldering of SMT boards without component damage.
Rework Preheat Methods
Preheating is used during PCB rework to remove and replace components:
- Localized spot heaters target just the component area to avoid disturbing nearby parts.
- Specialized thermal tweezers or thermodes heat individual joints rapidly.
- Low airflow convection avoids blowing nearby components out of position.
- Careful profiling ensures temperature stays below damage thresholds.
Strategic preheating makes PCB rework faster and safer.
Process Monitoring and Control
To achieve repeatable preheat quality, monitoring and control are vital:
- Use thermocouples or IR sensors to provide active feedback on PCB temperature.
- Closed-loop controllers dynamically adjust heater power to maintain setpoints.
- Monitor gradient across the board to ensure uniform heating.
- Placement of sensors impacts control – locate in high thermal mass areas.
- Characterize system response to tune PID parameters for stability and speed.
Robust process control is key to consistent preheat performance.
Summary of PCB Preheat Best Practices
- Profile temperatures and ramp rates according to solder alloy used.
- Allow sufficient preheat soak time for uniform board temperature.
- Shield delicate components or locally preheat large parts.
- Use thermocouples or thermal imaging cameras to monitor heating.
- Maintain inert nitrogen atmosphere to prevent oxidation.
- Adjust heater power and dwells to reduce gradients across boards.
- Validate heating efficacy through post-soldering inspection.
Following these guidelines results in ideal PCB preheating for flawless soldering.
Preheating is a vital first stage enabling robust PCB soldering while minimizing defects and damage. Conduction, convection, infrared radiation, lasers, and other technologies each provide unique advantages for controlled heating. By properly profiling temperatures and intelligently applying heat, high-quality solder joints are achieved. Preheating clearly plays an essential role in electronics manufacturing.
Frequently Asked Questions
How do you know what preheat temperature to use for a given PCB?
Consider the glass transition temperature of board materials along with solder paste reflow recommendations from the manufacturer. Allow a buffer of at least 50°C below damage thresholds of heat-sensitive components.
What monitoring tools ensure effective preheating?
Thermocouples and IR thermal cameras are ideal for tracking PCB temperature. Closed-loop control algorithms analyze this sensor feedback to regulate heaters and achieve ideal profiles.
Is it better to use convection or conduction preheating?
Conduction preheat transfers heat faster for speed while convection provides more uniform heating across the board. Most systems apply conduction followed by convection soak to balance rapid ramps and minimizing gradients.
How does Preheat temperature affect soldering quality and reliability?
Insufficient preheat fails to properly activate flux or drive off volatiles leading to shorts or opens. Excessive temperatures can overheat components or warp boards. Tuned preheat profiles optimize joint quality.
What are some preheat considerations for large or high mass PCBs?
Slow ramp rates below 2°C/sec avoid thermal shock while allowing time for heat to soak into the board. Localized or segmented heating may be required to bring up specific areas faster without scorching others.
