How to Drive High Power LEDs With A DC-DC Adjustable Step-Down Module

Light-emitting diodes (LEDs) have become an integral part of modern electronics, offering energy efficiency, durability, and versatility in various applications. However, driving high-power LEDs can be a challenging task, as they require precise voltage and current regulation to ensure optimal performance and longevity. This is where DC-DC adjustable step-down modules come into play, providing a reliable and cost-effective solution for powering high-power LEDs.

In this comprehensive article, we will explore the fundamentals of driving high-power LEDs with a DC-DC adjustable step-down module. We will cover the theoretical aspects, practical considerations, and step-by-step instructions to help you achieve a successful LED lighting setup.

Understanding High-Power LEDs

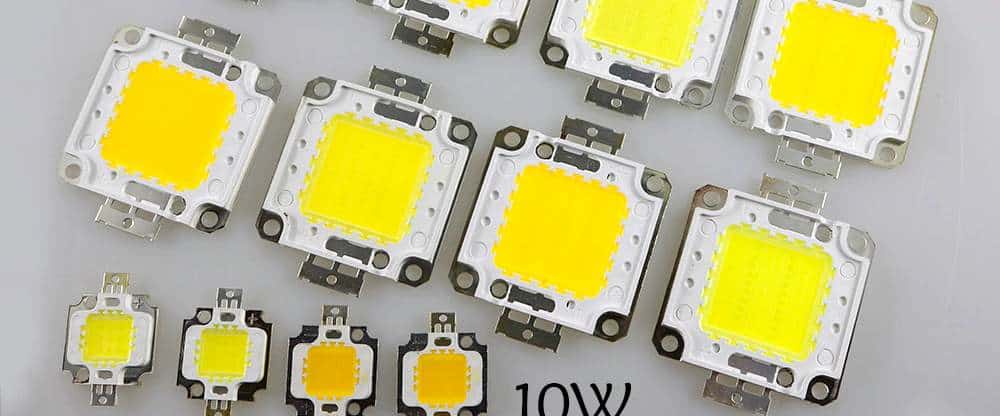

What are High-Power LEDs?

High-power LEDs, also known as high-brightness LEDs or power LEDs, are a specific type of LED designed to produce a significantly higher amount of light output compared to standard LEDs. These LEDs are capable of delivering luminous intensities ranging from a few hundred to several thousand lumens, making them suitable for various applications such as:

  • Automotive lighting (headlights, taillights, and interior lighting)
  • Architectural and landscape lighting
  • Stage and studio lighting
  • Industrial and commercial lighting

Characteristics of High-Power LEDs

High-power LEDs exhibit several unique characteristics that set them apart from standard LEDs:

  1. High Current Requirement: High-power LEDs typically operate at higher current levels, ranging from hundreds of milliamperes (mA) to several amperes (A), compared to standard LEDs that operate at lower currents (usually below 30 mA).
  2. High Brightness: As the name suggests, high-power LEDs produce significantly higher luminous intensities, measured in lumens, compared to standard LEDs.
  3. Heat Dissipation: Due to the high current levels and high brightness, high-power LEDs generate a substantial amount of heat, which needs to be effectively dissipated to prevent degradation and ensure optimal performance.
  4. Voltage Drop: High-power LEDs exhibit a relatively low voltage drop, typically between 2.5V to 4V, depending on the LED’s color and construction.

Driving high-power LEDs requires careful consideration of the electrical and thermal characteristics to ensure proper operation and longevity.

Understanding DC-DC Adjustable Step-Down Modules

DC-DC adjustable step-down modules, also known as buck converters or voltage regulators, are electronic circuits designed to convert a higher input voltage to a lower output voltage. These modules are widely used in various applications where a regulated, stable, and adjustable output voltage is required.

Key Features of DC-DC Adjustable Step-Down Modules

  1. Input Voltage Range: DC-DC adjustable step-down modules typically accept a wide range of input voltages, allowing them to be used with various power sources, such as batteries, power supplies, or solar panels.
  2. Adjustable Output Voltage: The output voltage of these modules can be adjusted within a specific range, providing flexibility in powering different types of loads, including high-power LEDs.
  3. High Efficiency: Many DC-DC adjustable step-down modules boast high conversion efficiency, minimizing power losses and ensuring efficient power delivery.
  4. Current Limiting: These modules often incorporate current limiting features, protecting the load (in this case, the high-power LED) from overcurrent conditions.
  5. Compact Size: DC-DC adjustable step-down modules are designed to be compact and lightweight, making them suitable for various applications where space is limited.

By utilizing a DC-DC adjustable step-down module, you can efficiently power high-power LEDs while maintaining the desired voltage and current levels, ensuring optimal performance and longevity.

Driving High-Power LEDs with a DC-DC Adjustable Step-Down Module

Step 1: Determine the Electrical Requirements of the High-Power LED

Before selecting a suitable DC-DC adjustable step-down module, it is crucial to determine the electrical requirements of the high-power LED you intend to drive. This information is typically provided in the LED’s datasheet and includes the following parameters:

  • Forward Voltage (Vf): This is the voltage drop across the LED when it is conducting current. Typical forward voltages for high-power LEDs range from 2.5V to 4V.
  • Forward Current (If): This is the recommended operating current for the LED, typically ranging from hundreds of milliamperes to several amperes.
  • Maximum Forward Current (If,max): This is the maximum current the LED can safely handle without sustaining permanent damage.

Step 2: Select a Suitable DC-DC Adjustable Step-Down Module

Once you have determined the electrical requirements of the high-power LED, you can select an appropriate DC-DC adjustable step-down module. Consider the following factors when choosing a module:

  • Input Voltage Range: Ensure that the module’s input voltage range is compatible with your power source (e.g., battery, power supply).
  • Output Voltage Range: The output voltage range should be adjustable to accommodate the forward voltage of the high-power LED.
  • Output Current Capability: The module should be capable of delivering the required forward current for the LED, or the combined current if you plan to drive multiple LEDs in parallel.
  • Efficiency: Choose a module with high conversion efficiency to minimize power losses and heat generation.
  • Current Limiting: Look for modules with built-in current limiting features to protect the LED from overcurrent conditions.

Step 3: Connect the DC-DC Adjustable Step-Down Module

Once you have selected a suitable DC-DC adjustable step-down module, follow these steps to connect it to the high-power LED:

  1. Connect the Input Voltage: Connect the positive terminal of your power source (e.g., battery, power supply) to the input voltage terminal (Vin) of the module, and connect the negative terminal to the ground (GND) terminal of the module.
  2. Connect the Output Voltage: Connect the positive output voltage terminal (Vout) of the module to the anode (positive terminal) of the high-power LED. Connect the cathode (negative terminal) of the LED to the ground (GND) terminal of the module.
  3. Adjust the Output Voltage: Most DC-DC adjustable step-down modules have a potentiometer or a set of trim pins that allow you to adjust the output voltage. Refer to the module’s datasheet or instructions to set the output voltage to match the forward voltage of the high-power LED.
  4. Connect Additional Components (Optional): Depending on the specific module and application, you may need to connect additional components, such as capacitors or inductors, as recommended by the module’s manufacturer.

Step 4: Test and Observe

After connecting the DC-DC adjustable step-down module to the high-power LED, follow these steps to test and observe the setup:

  1. Apply Power: Apply power to the module by turning on the power source.
  2. Observe the LED: The high-power LED should illuminate, indicating that the module is providing the correct voltage and current.
  3. Monitor the Current: Use a current meter or multimeter to monitor the current flowing through the LED. Ensure that the current does not exceed the maximum forward current (If,max) specified in the LED’s datasheet.
  4. Monitor the Temperature: High-power LEDs generate significant heat, so it is essential to monitor the temperature of the LED and the module. If the temperature exceeds the recommended operating range, consider implementing additional heat dissipation measures, such as heat sinks or active cooling.
  5. Adjust as Necessary: If the LED is not illuminating correctly or if the current or temperature readings are not within the recommended ranges, adjust the output voltage of the module or review your connections.

By following these steps, you can successfully drive high-power LEDs using a DC-DC adjustable step-down module, ensuring optimal performance and longevity.

Practical Considerations

When working with high-power LEDs and DC-DC adjustable step-down modules, there are several practical considerations to keep in mind:

Heat Dissipation

High-power LEDs generate a significant amount of heat, which can negatively impact their performance and lifespan if not properly dissipated. To ensure efficient heat dissipation, consider the following measures:

  • Heat Sinks: Attach the high-power LED to a suitable heat sink, such as an aluminum or copper heat sink, to facilitate effective heat transfer and dissipation.
  • Active Cooling: In applications with high heat loads or confined spaces, you may need to incorporate active cooling methods, such as fans or liquid cooling systems, to maintain optimal operating temperatures.
  • Thermal Management Design: Incorporate proper thermal management considerations into your design from the outset, including adequate spacing, airflow, and heat-dissipating materials.
