Introduction
Flexible heaters are versatile heating elements designed to conform to various shapes and surfaces, making them ideal for a wide range of applications across industries. These innovative heating solutions offer numerous advantages over traditional rigid heaters, including improved heat distribution, space-saving designs, and adaptability to complex geometries. In this comprehensive article, we will explore the intricate world of flexible heater design, manufacturing processes, and the various types available in the market.
Flexible Heater Design
Design Considerations
When designing flexible heaters, several factors must be taken into account to ensure optimal performance and longevity:
- Temperature requirements: Determine the desired operating temperature range and maximum temperature limits.
- Power density: Calculate the required wattage per unit area to achieve the desired heating output.
- Substrate material: Select an appropriate flexible substrate that can withstand the operating conditions.
- Heating element: Choose the most suitable heating element material and configuration.
- Insulation: Determine the necessary insulation to prevent heat loss and ensure safety.
- Size and shape: Design the heater to fit the specific application requirements.
- Environmental factors: Consider moisture, chemicals, and other environmental conditions the heater may encounter.
Design Process
The flexible heater design process typically involves the following steps:
-
Requirements gathering: Collect all necessary information about the application, including temperature requirements, power constraints, and environmental conditions.
-
Material selection: Choose appropriate materials for the substrate, heating element, and insulation based on the gathered requirements.
-
Heating element layout: Design the heating element pattern to ensure even heat distribution and optimal power density.
-
Thermal analysis: Conduct thermal simulations to verify the design’s performance and identify potential hot spots or cold areas.
-
Electrical design: Determine the appropriate voltage, current, and resistance values for the heating element.
-
Prototyping: Create a prototype of the flexible heater for testing and validation.
-
Testing and refinement: Evaluate the prototype’s performance and make necessary adjustments to improve the design.
-
Documentation: Create detailed design specifications and manufacturing instructions.
Manufacturing Processes
The manufacturing of flexible heaters involves several specialized processes, depending on the type of heater being produced. Here are some common manufacturing methods:
1. Etched Foil Heaters
Etched foil heaters are manufactured using a process similar to printed circuit board (PCB) production:
- Foil lamination: A thin metal foil (usually copper or nickel) is laminated onto a flexible substrate.
- Pattern application: The desired heating element pattern is applied to the foil using photoresist.
- Etching: The exposed foil is chemically etched away, leaving the desired heating element pattern.
- Insulation: An additional layer of insulation is applied over the etched pattern.
- Termination: Electrical connections are added to the heating element.
2. Wire-Wound Heaters
Wire-wound flexible heaters are produced using the following steps:
- Wire preparation: The heating wire is wound into the desired pattern.
- Substrate application: The wire pattern is placed onto a flexible substrate.
- Bonding: The wire is bonded to the substrate using adhesives or vulcanization.
- Insulation: An additional layer of flexible insulation is applied over the wire pattern.
- Termination: Electrical connections are added to the heating element.
3. Screen Printed Heaters
Screen printed heaters are manufactured using a process that involves:
- Screen preparation: A screen with the desired heating element pattern is created.
- Ink application: Conductive ink is applied to the flexible substrate through the screen.
- Curing: The ink is cured to create a stable heating element.
- Insulation: An insulating layer is applied over the printed heating element.
- Termination: Electrical connections are added to the heating element.
4. Carbon Fiber Heaters
Carbon fiber heaters are produced using the following process:
- Fiber preparation: Carbon fibers are arranged in the desired pattern.
- Substrate application: The carbon fiber pattern is placed onto a flexible substrate.
- Bonding: The fibers are bonded to the substrate using resin or other adhesives.
- Insulation: An insulating layer is applied over the carbon fiber heating element.
- Termination: Electrical connections are added to the heating element.
Types of Flexible Heaters
Flexible heaters come in various types, each with its own unique characteristics and applications. Here’s an overview of the most common types:
1. Silicone Rubber Heaters
Silicone rubber heaters are versatile and widely used in many industries.
| Characteristic | Description |
|---|---|
| Temperature Range | -60°C to 230°C |
| Flexibility | Excellent |
| Chemical Resistance | Good |
| Moisture Resistance | Excellent |
| Typical Applications | Medical devices, aerospace, food service equipment |

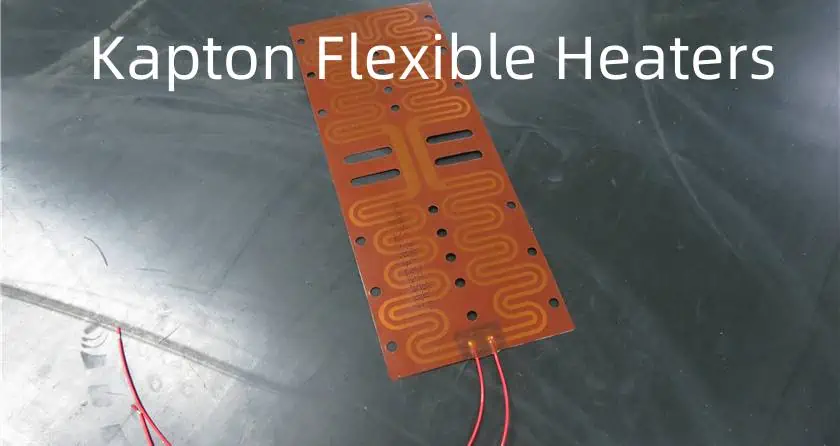

2. Polyimide (Kapton) Heaters
Polyimide heaters are known for their high temperature resistance and thin profile.
| Characteristic | Description |
|---|---|
| Temperature Range | -269°C to 400°C |
| Flexibility | Good |
| Chemical Resistance | Excellent |
| Moisture Resistance | Good |
| Typical Applications | Aerospace, electronics, semiconductor processing |
3. Polyester (Mylar) Heaters
Polyester heaters offer a cost-effective solution for low-temperature applications.
| Characteristic | Description |
|---|---|
| Temperature Range | -60°C to 120°C |
| Flexibility | Good |
| Chemical Resistance | Fair |
| Moisture Resistance | Good |
| Typical Applications | Consumer products, automotive, packaging equipment |
4. Mica Heaters
Mica heaters provide high temperature capabilities and excellent electrical insulation.
| Characteristic | Description |
|---|---|
| Temperature Range | Up to 600°C |
| Flexibility | Limited |
| Chemical Resistance | Excellent |
| Moisture Resistance | Good |
| Typical Applications | Industrial processes, laboratory equipment, food service |
5. Polymer Thick Film (PTF) Heaters
PTF heaters offer a thin profile and can be easily customized for various applications.
| Characteristic | Description |
|---|---|
| Temperature Range | -40°C to 150°C |
| Flexibility | Excellent |
| Chemical Resistance | Good |
| Moisture Resistance | Good |
| Typical Applications | Automotive, medical devices, consumer electronics |
Applications of Flexible Heaters
Flexible heaters find applications across numerous industries due to their versatility and adaptability. Some common applications include:
- Medical devices: Patient warming blankets, blood warmers, and diagnostic equipment.
- Aerospace: De-icing systems for aircraft wings and sensors.
- Automotive: Seat heaters, mirror defrosters, and battery warmers.
- Food service: Food warming trays and containers.
- Industrial processes: Drum heaters, satellite dish de-icing, and pipe freeze protection.
- Consumer electronics: LCD displays, touchscreens, and wearable devices.
- Scientific instruments: Laboratory equipment and analytical instruments.
Advantages and Limitations of Flexible Heaters
Advantages
- Conformability: Can be easily applied to curved or irregular surfaces.
- Space-saving: Thin profile allows for use in confined spaces.
- Uniform heat distribution: Customizable designs enable even heat distribution.
- Fast response time: Thin construction allows for quick heating and cooling.
- Customizability: Can be tailored to specific application requirements.
- Lightweight: Ideal for applications where weight is a concern.
Limitations
- Temperature limitations: Some flexible materials have lower maximum temperature ratings compared to rigid heaters.
- Cost: Custom designs can be more expensive than standard rigid heaters.
- Durability: May be more susceptible to damage from bending or flexing in certain applications.
- Power density: Some types may have lower power density compared to rigid heaters.
Future Trends in Flexible Heater Technology
As technology continues to advance, several trends are emerging in the field of flexible heaters:
- Smart flexible heaters: Integration of sensors and control systems for improved temperature regulation and energy efficiency.
- Printable electronics: Advancements in printed electronics technology enabling more complex and efficient heating element designs.
- Nanomaterial-based heaters: Development of flexible heaters using nanomaterials like carbon nanotubes or graphene for improved performance.
- Biodegradable flexible heaters: Research into environmentally friendly materials for disposable or short-term use applications.
- Wearable heating solutions: Integration of flexible heaters into clothing and wearable devices for personal comfort and medical applications.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lifespan of a flexible heater? A: The lifespan of a flexible heater can vary greatly depending on the operating conditions, materials used, and quality of manufacturing. Under normal operating conditions, many flexible heaters can last 5-10 years or more. However, factors such as frequent thermal cycling, exposure to harsh environments, or operation at maximum temperatures can reduce the lifespan.
-
Q: Can flexible heaters be cut or modified after manufacturing? A: In general, it is not recommended to cut or modify flexible heaters after manufacturing, as this can damage the heating element or compromise the insulation. Some manufacturers offer custom-shapeable heaters that can be trimmed to size, but this should only be done following the manufacturer’s specific instructions.
-
Q: How do I choose the right flexible heater for my application? A: Selecting the right flexible heater involves considering several factors, including:
- Temperature requirements
- Power density needs
- Environmental conditions (moisture, chemicals, etc.)
- Size and shape constraints
- Flexibility requirements
- Budget It’s often best to consult with a flexible heater manufacturer or specialist who can help you select the most appropriate solution for your specific application.
-
Q: Are flexible heaters energy-efficient? A: Flexible heaters can be very energy-efficient when properly designed and implemented. Their ability to conform closely to the surface being heated reduces heat loss and improves heat transfer efficiency. Additionally, their fast response times and customizable designs allow for precise temperature control, further improving energy efficiency.
-
Q: Can flexible heaters be used in explosive environments? A: Some flexible heaters can be designed for use in explosive environments, but this requires special considerations in terms of materials, construction, and certification. If you need a flexible heater for use in a potentially explosive atmosphere, it’s crucial to work with a manufacturer experienced in producing heaters that meet the necessary safety standards and certifications (e.g., ATEX, IECEx) for such environments.
