Surface Mount Technology (SMT) has revolutionized electronic manufacturing by enabling the production of smaller, more complex, and higher-performance electronic devices. At the heart of SMT assembly lies the solder paste printing process, which serves as the foundation for reliable solder joints. The quality of solder paste printing directly impacts the overall assembly yield, reliability, and performance of electronic products. Understanding the various factors that influence print quality is crucial for manufacturers seeking to optimize their SMT processes and achieve consistent, high-quality results.

Stencil Design and Manufacturing

The stencil represents one of the most critical factors in achieving optimal solder paste print quality. Stencil thickness plays a fundamental role in determining the volume of solder paste deposited on each pad. Thicker stencils deposit more paste but may struggle with fine-pitch components, while thinner stencils provide better definition for small apertures but may result in insufficient paste volume for larger components. The industry standard thickness typically ranges from 0.1mm to 0.15mm, with variations based on specific application requirements.

Aperture design significantly impacts paste release and print quality. The aperture size, shape, and wall finish all contribute to the effectiveness of paste transfer from stencil to PCB. Aperture walls should be smooth and properly finished to facilitate clean paste release. The aspect ratio, defined as the ratio of aperture width to stencil thickness, should typically be maintained above 1:1.5 for optimal paste release. Trapezoidal apertures, where the opening is slightly larger on the PCB side, can improve paste release characteristics.

Stencil material selection affects both durability and print quality. Stainless steel stencils offer excellent durability and precise aperture definition, while electroformed nickel stencils provide superior aperture wall smoothness and are particularly beneficial for fine-pitch applications. The choice between laser-cut and electroformed stencils depends on the specific requirements of aperture size, pitch, and production volume.

Solder Paste Properties

The rheological properties of solder paste significantly influence print quality and consistency. Viscosity affects the paste’s flow characteristics during printing and its ability to maintain shape after printing. Paste that is too thick may not flow properly through stencil apertures, resulting in incomplete fills or poor edge definition. Conversely, paste that is too thin may slump after printing, leading to bridging or poor print definition.

Particle size distribution within the solder paste affects both printability and final joint quality. Smaller particles generally provide better printability for fine-pitch applications but may exhibit different reflow characteristics. The metal content percentage influences both the mechanical properties of the printed deposit and the final solder joint strength. Higher metal content typically provides better electrical and mechanical properties but may affect printability.

Tackiness and working time are critical paste properties that affect handling and assembly processes. Adequate tackiness ensures component placement stability, while appropriate working time allows for process flexibility without degrading print quality. The paste’s thixotropic properties enable it to flow during printing while maintaining shape after deposition.

PCB Surface Conditions

The condition of the PCB surface finish dramatically affects solder paste adhesion and print quality. Common surface finishes include Hot Air Solder Leveling (HASL), Electroless Nickel Immersion Gold (ENIG), Immersion Silver, and Organic Solderability Preservative (OSP). Each finish presents different characteristics in terms of flatness, solderability, and shelf life that can impact paste printing.

Surface cleanliness is paramount for achieving consistent print quality. Contamination from oils, oxidation, or residual materials can prevent proper paste adhesion and lead to print defects. The PCB should be free from fingerprints, flux residues, and other contaminants that could interfere with paste adhesion.

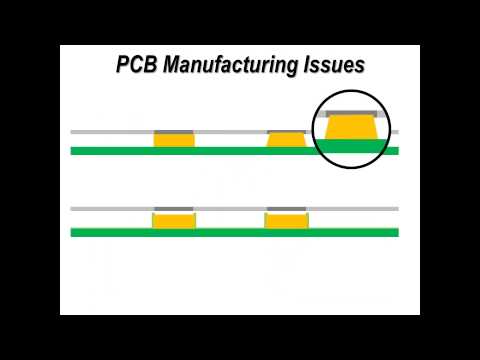

Pad design and layout significantly influence print quality. Pad size, shape, and spacing must be carefully considered in relation to the stencil aperture design. Proper registration between stencil apertures and PCB pads is essential for achieving accurate paste placement. Thermal relief connections and copper pour proximity can affect local heat dissipation during reflow, influencing joint formation.

Printing Process Parameters

Squeegee pressure represents a critical process parameter that must be carefully controlled. Excessive pressure can force paste through apertures too aggressively, leading to paste bleeding under the stencil or poor edge definition. Insufficient pressure may result in incomplete aperture filling and inconsistent paste deposits. The optimal pressure typically ranges from 0.2 to 0.6 pounds per linear inch of squeegee length.

Print speed affects both the quality and throughput of the printing process. Slower speeds generally provide better aperture filling and more consistent deposits but reduce production efficiency. Faster speeds may improve throughput but can lead to inadequate filling of smaller apertures or poor paste release. The optimal speed typically ranges from 10 to 50 mm/second, depending on paste properties and stencil design.

Separation parameters, including snap-off distance and separation speed, critically affect paste release from the stencil. Proper separation ensures clean paste transfer while preventing smearing or distortion of the printed deposits. The snap-off distance should be minimized while maintaining adequate clearance for PCB warpage. Separation speed should be fast enough to ensure clean release but not so fast as to cause paste distortion.

Environmental Factors

Temperature and humidity significantly impact both solder paste properties and print quality. Higher temperatures generally reduce paste viscosity, improving flow characteristics but potentially affecting working time and print definition. Lower temperatures may increase viscosity, making printing more difficult but potentially improving print stability. Humidity affects paste properties and can lead to oxidation or other chemical changes that degrade print quality.

Atmospheric conditions in the printing environment should be controlled to maintain consistent paste properties. Excessive air movement can accelerate solvent evaporation from the paste, leading to changes in viscosity and printability. Dust and airborne contaminants can settle on the PCB surface or stencil, affecting print quality.

Equipment Considerations

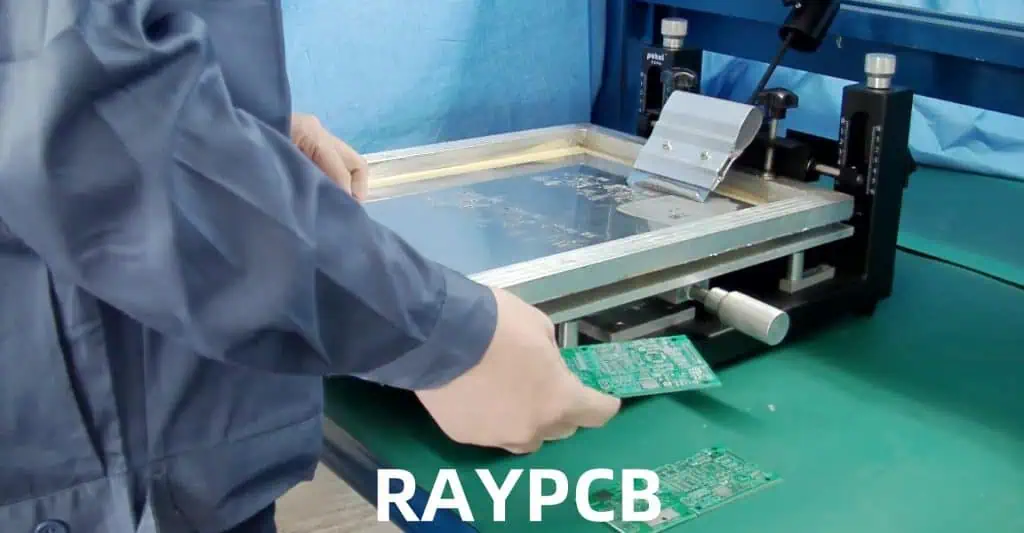

Printer alignment and setup accuracy directly affect print quality and consistency. Proper registration between the stencil and PCB ensures accurate paste placement on the intended pads. Vision systems help maintain consistent registration and can detect and correct for minor variations in PCB placement.

Stencil support and tensioning systems affect print consistency and stencil life. Proper support prevents stencil deflection during printing, while appropriate tensioning maintains stencil flatness and prevents distortion. Inadequate support or tensioning can lead to inconsistent print thickness and poor edge definition.

Squeegee condition and maintenance significantly impact print quality. Worn or damaged squeegees can leave streaks, cause inconsistent pressure distribution, or fail to maintain proper contact with the stencil surface. Regular inspection and replacement of squeegees are essential for maintaining consistent print quality.

Quality Control and Monitoring

Implementing effective quality control measures is essential for maintaining consistent print quality. Solder paste inspection systems can detect defects such as insufficient paste volume, bridging, or misalignment before components are placed. These systems provide immediate feedback on print quality and can trigger process adjustments when necessary.

Statistical process control techniques help identify trends and variations in print quality over time. Monitoring key parameters such as paste volume, print thickness, and registration accuracy enables proactive process optimization and helps prevent quality issues before they affect production.

Regular maintenance and calibration of printing equipment ensure continued optimal performance. This includes cleaning stencils, replacing worn squeegees, calibrating vision systems, and verifying printer mechanics. Preventive maintenance schedules help minimize unexpected downtime and maintain consistent print quality.

The optimization of SMT solder paste print quality requires careful attention to multiple interconnected factors. Success depends on understanding the relationships between stencil design, paste properties, PCB conditions, process parameters, and environmental factors. By systematically addressing each of these areas and implementing appropriate quality control measures, manufacturers can achieve consistent, high-quality solder paste printing that forms the foundation for reliable electronic assemblies.
