Digital PCB technology has made significant strides in the field of electronics, driven by the growing demand for faster, smaller, and more affordable electronic devices and gadgets. These advancements have led to the development of digital PCBs, which incorporate multiple microprocessors and electronic circuitry capable of handling thousands of operations per second. Compared to analog circuit boards, digital PCBs offer several key improvements, including superior impedance matching and enhanced control over insertion loss in transmission lines.

The design and engineering of digital PCBs require meticulous attention to detail to address potential issues such as impedance discontinuities in transmission lines, inadequate plating of through-hole interconnections, and other signal integrity challenges. Digital PCBs possess several distinctive features that make them highly effective in electronic circuit applications. These features include:

• High layer count
• Tight dimensional tolerances
• Stub elimination
• High packaging density
• Complex stack-up structure

These attributes collectively contribute to the superior performance and reliability of digital PCBs in modern electronic systems.

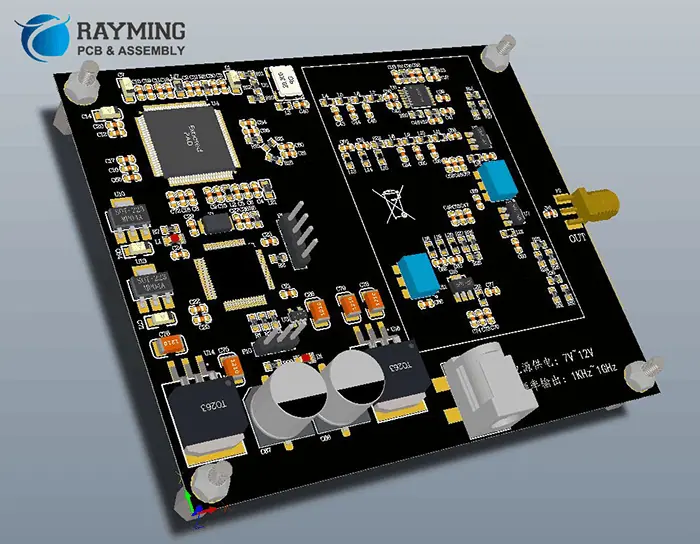

1. Proper Component Placement

One of the foundational aspects of PCB design is the strategic placement of components. This rule is especially critical for digital PCBs, where signal integrity and power distribution are paramount.

Why It Matters

Proper component placement can:

• Reduce signal path lengths
• Minimize electromagnetic interference (EMI)
• Improve thermal management
• Enhance overall circuit performance

Best Practices

• Group related components together (e.g., keep microcontrollers close to their supporting components)
• Place high-frequency components near the board edge to minimize interference
• Consider the direction of signal flow when arranging components
• Keep sensitive analog components away from noisy digital circuits
• Ensure adequate spacing between components for ease of assembly and rework

By adhering to these placement guidelines, you’ll create a more efficient layout that not only performs better but is also easier to manufacture and maintain.

2. Optimal Power Distribution

In digital PCBs, clean and stable power distribution is crucial for ensuring reliable operation of all components.

Why It Matters

Proper power distribution:

• Reduces noise in the power supply
• Prevents voltage drops across the board
• Ensures all components receive adequate power
• Minimizes the risk of electromagnetic interference

Best Practices

• Use power planes instead of traces for main power distribution
• Implement a star topology for power distribution when possible
• Place decoupling capacitors close to the power pins of ICs
• Use wide traces or polygons for high-current paths
• Consider using multiple smaller vias instead of one large via for better current distribution

By focusing on optimal power distribution, you’ll create a more stable operating environment for your digital components, leading to improved performance and reliability.

3. Signal Integrity Considerations

Signal integrity is a critical aspect of digital PCB design, especially as clock speeds and data rates continue to increase.

Why It Matters

Good signal integrity:

• Ensures accurate data transmission
• Reduces errors and glitches in digital circuits
• Minimizes crosstalk between signal lines
• Improves overall system reliability

Best Practices

• Keep high-speed signals short and direct
• Use differential pairs for high-speed signals when possible
• Maintain consistent trace widths for matched impedance
• Avoid 90-degree angles in traces; use 45-degree angles or arcs instead
• Use ground planes and proper stackup design to control impedance
• Implement termination techniques for long signal lines

By prioritizing signal integrity in your design, you’ll create a PCB that can handle high-speed digital signals with minimal distortion and interference.

4. Proper Stackup Design

The PCB stackup refers to the arrangement of copper and dielectric layers in a multi-layer board. A well-designed stackup is crucial for digital PCBs.

Why It Matters

An optimized stackup:

• Improves signal integrity
• Enhances power distribution
• Reduces EMI/EMC issues
• Provides better control over impedance

Best Practices

• Use an even number of layers for better symmetry
• Alternate signal and ground/power layers
• Keep high-speed signals on layers adjacent to ground planes
• Use thicker dielectrics between power and ground planes to increase capacitance
• Consider using buried vias for dense designs

By carefully designing your PCB stackup, you’ll create a more robust foundation for your digital circuits, leading to improved performance and reduced electromagnetic issues.

5. Effective Grounding Techniques

Proper grounding is essential in digital PCB design to ensure signal integrity and minimize noise.

Why It Matters

Effective grounding:

• Provides a low-impedance return path for signals
• Reduces ground bounce and noise
• Improves EMI/EMC performance
• Enhances overall circuit stability

Best Practices

• Use a solid ground plane whenever possible
• Implement a single-point grounding strategy for mixed-signal designs
• Avoid creating ground loops
• Use multiple vias to connect ground planes between layers
• Keep ground return paths as short as possible

By implementing effective grounding techniques, you’ll create a more stable and noise-resistant environment for your digital circuits.

6. Clock Signal Routing

Clock signals are critical in digital PCBs and require special attention during the routing process.

Why It Matters

Proper clock routing:

• Minimizes clock skew
• Reduces EMI
• Ensures synchronous operation of digital components
• Improves overall system timing

Best Practices

• Keep clock traces as short as possible
• Use controlled impedance routing for clock signals
• Avoid routing clock signals near sensitive analog circuits
• Implement proper termination for clock lines
• Consider using a clock distribution network for complex designs

By carefully routing your clock signals, you’ll ensure that your digital circuits operate in sync and with minimal interference.

7. Decoupling and Bypass Capacitors

Decoupling and bypass capacitors play a crucial role in maintaining stable power supply voltages and reducing noise in digital circuits.

Why It Matters

Proper use of decoupling capacitors:

• Reduces power supply noise
• Improves signal integrity
• Minimizes EMI
• Enhances overall circuit stability

Best Practices

• Place decoupling capacitors as close as possible to IC power pins
• Use a combination of different capacitor values for broadband noise suppression
• Consider using array capacitors for high-density designs
• Implement a PDN (Power Distribution Network) analysis to optimize capacitor placement
• Use low-ESR (Equivalent Series Resistance) capacitors for high-frequency applications

By implementing effective decoupling strategies, you’ll create a more stable power environment for your digital components, leading to improved performance and reliability.

8. Thermal Management Considerations

As digital circuits become more complex and compact, thermal management becomes increasingly important in PCB design.

Why It Matters

Effective thermal management:

• Prevents component overheating
• Improves reliability and longevity of the PCB
• Ensures consistent performance across temperature ranges
• Reduces the risk of thermal-induced failures

Best Practices

• Use thermal vias to dissipate heat from critical components
• Implement copper pours for better heat distribution
• Consider using heat sinks for high-power components
• Place heat-generating components away from temperature-sensitive parts
• Perform thermal simulations to identify potential hotspots

By addressing thermal concerns in your PCB design, you’ll create a more reliable and long-lasting product that can withstand various operating conditions.

9. EMI/EMC Design Considerations

Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) are critical factors in digital PCB design, especially as circuits operate at higher frequencies.

Why It Matters

Proper EMI/EMC design:

• Ensures compliance with regulatory standards
• Reduces interference between components and systems
• Improves overall product reliability
• Minimizes the risk of signal integrity issues

Best Practices

• Use proper shielding techniques for sensitive circuits
• Implement EMI suppression components (e.g., ferrite beads, common-mode chokes)
• Design with EMC-aware component placement and routing
• Consider using spread spectrum techniques for clock signals
• Perform pre-compliance EMC testing during the design phase

By incorporating EMI/EMC considerations into your digital PCB design, you’ll create a product that not only performs well but also meets regulatory requirements and operates reliably in various environments.

10. Design for Manufacturing (DFM) and Testing

While focusing on electrical performance is crucial, it’s equally important to design your digital PCB with manufacturing and testing in mind.

Why It Matters

Designing for manufacturing and testing:

• Reduces production costs
• Improves yield rates
• Facilitates easier assembly and rework
• Enables more effective testing and quality control

Best Practices

• Follow manufacturer guidelines for minimum trace widths, spacings, and hole sizes
• Include fiducial markers for automated assembly
• Design for panelization to improve manufacturing efficiency
• Implement test points for critical signals
• Consider using boundary scan (JTAG) for complex digital designs
• Include silkscreen markings for component orientation and identification

By incorporating DFM and testing considerations into your digital PCB design, you’ll create a product that is not only high-performing but also cost-effective to manufacture and easy to test and maintain.

Conclusion

Mastering the top 10 design rules for digital PCBs is essential for creating high-performance, reliable, and manufacturable electronic products. From proper component placement and power distribution to signal integrity and thermal management, each aspect plays a crucial role in the overall success of your PCB design.

Remember that these rules are not isolated concepts but interconnected principles that work together to create a holistic design approach. As you gain experience and tackle more complex projects, you’ll find that balancing these various factors becomes an art as much as a science.

Stay up-to-date with the latest industry standards and best practices, as PCB design is an ever-evolving field. Utilize advanced design tools and simulation software to validate your designs before production. And most importantly, never stop learning and experimenting – the world of digital PCB design is full of challenges and opportunities for innovation.

By following these top 10 design rules and continually refining your skills, you’ll be well-equipped to create cutting-edge digital PCBs that meet the demands of today’s fast-paced electronic industry. Whether you’re working on consumer electronics, industrial equipment, or advanced computing systems, these principles will serve as a solid foundation for your PCB design journey.
