Aluminum PCB Heat Dissipation Design: Mounting, Interfaces and Thermal Budget

Establish the controlled temperature

Name the component or location whose limit governs the design. Use a documented requirement for that location, not a generic board-temperature target. Identify whether the downstream boundary is local air, a housing surface, coolant or a controlled cold plate.

For an illustrative 110 °C limit, 40 °C boundary and 10 W through one path, the total budget is 7 K/W. If 4 K/W has already been allocated, 3 K/W remains for the other series elements. A negative remainder exposes an inconsistent target or inadequate architecture.

Draw the mounted assembly

Show the board, interface material, fasteners and cooling structure in section. Mark the intended contact region and the surfaces that must remain electrically isolated. Include board thickness, flatness, hole locations and any steps or bosses in the housing.

A flat drawing of the bare board does not capture the installed heat path. The mechanical team should confirm whether clamping is uniform and whether tolerances can leave gaps. Keep the mounting design aligned with the aluminum PCB stackup.

Remaining interface and sink budget

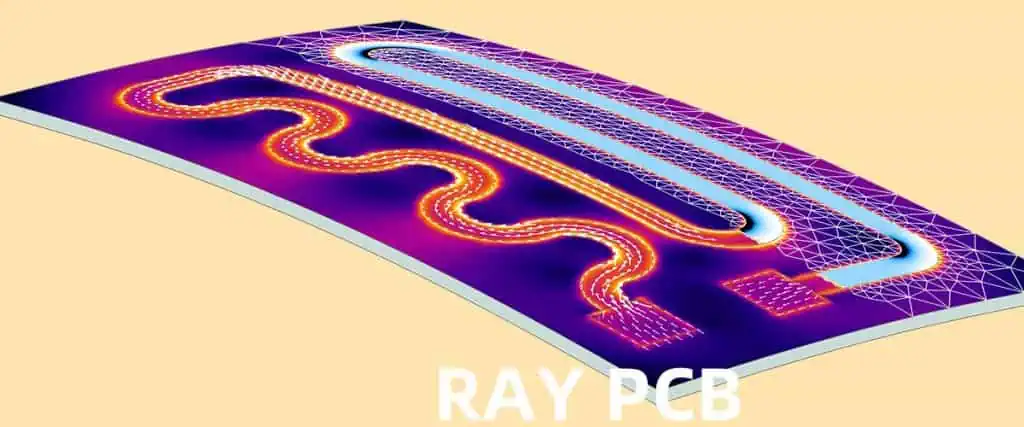

Distinguish spreading from rejection

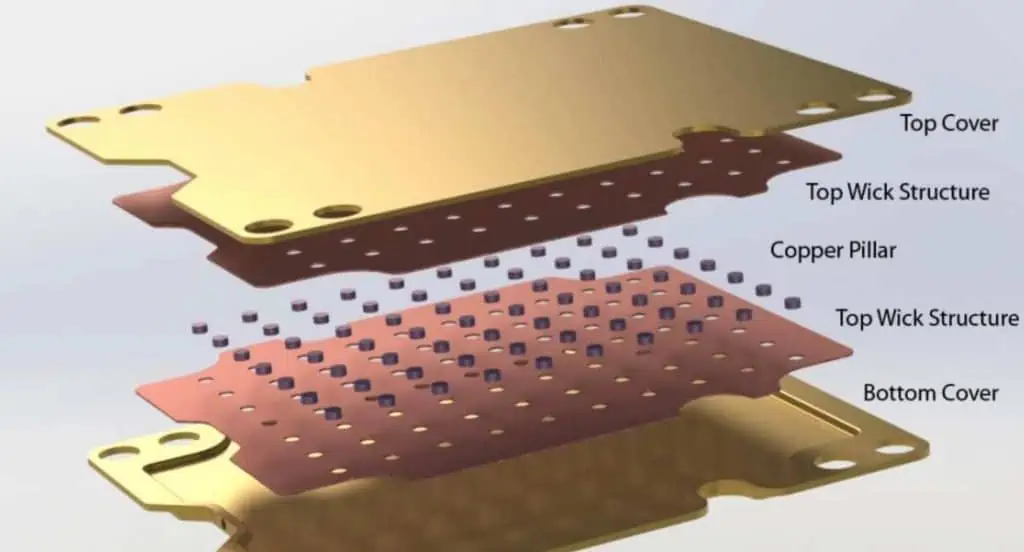

Copper and the metal base can distribute heat away from a small source. The assembly still needs a route from that distributed heat to its environment. If the heat sink or enclosure cannot reject the load at the required conditions, changing the board alone has limited value.

Use thermal design principles to separate local and shared resistance. Where multiple components share one sink, account for their simultaneous losses and mutual heating. A single-device reference calculated in isolation can miss that shared temperature rise.

Specify the interface deliberately

Choose a pad, phase-change material, grease or other interface based on gap, pressure, surface condition, insulation and service needs. The highest conductivity number is not sufficient if the material cannot achieve the required installed thickness or maintain contact.

The thermal paste guide addresses thin bond lines, while thermal interface materials covers the broader role comparison. Do not use ordinary paste as an assumed substitute for a structural gap filler or a qualified electrical insulation system.

Keep fastening and electrical details together

Mounting holes, screws and exposed metal can interact with circuit isolation. Review copper clearances, burr control and how the conductive base is connected or left floating in the product. A thermal improvement must not silently change the electrical barrier.

Avoid deriving screw torque or contact pressure from this page. Use the mechanical and material specifications for the actual assembly. Define assembly controls and inspection points so the intended contact can be reproduced in production.

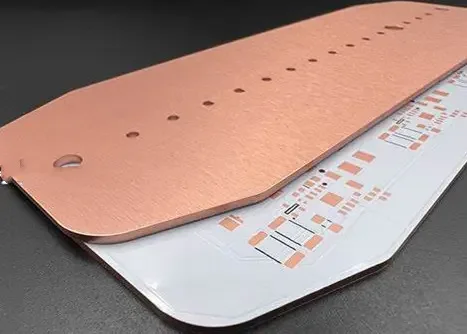

Protect LED and component assembly

An efficient heat path during operation can draw heat away during soldering. Review the populated-board process, component temperature exposure and support of large or thin boards. Keep solder-joint quality and optical or electrical performance in the verification plan.

Where the board carries LEDs, review LED IMS thermal management for the distinction between electrical input and heat. Lumens are not thermal watts, and optical output that is absorbed inside the enclosure can affect the larger system boundary.

Validate in the intended configuration

Measure temperatures with the actual mounting, interface, orientation and load case. Record stabilization and sensor locations. Compare samples with controlled changes rather than relying on photographs taken at unknown operating conditions.

If a result differs from the model, investigate contact, losses and boundary temperature before assuming the material datasheet is wrong. Preserve the discrepancy and its explanation in the design record. That record is more useful for a repeat order than one isolated maximum-temperature number.

Prepare the manufacturing and assembly enquiry

Send the board files, stack, mounting section, interface specification, loss map, controlled limit and the relevant test plan. State whether RAYPCB is quoting the bare board, assembly or another agreed scope. Separate the housing and heat-sink responsibilities clearly.

Continue to metal-core PCB manufacturing for construction options. The thermal budget helps explain the requirement, but it does not approve the proposed stack, establish available production capability or guarantee a completed product temperature.

Coordinate the board stack with the installed heat path

Prepare one cross-section that includes copper, dielectric, metal, mounting interface and the relevant housing surface. Mark the electrical potential of conductive regions and the intended heat-flow route. This drawing exposes assumptions that a board-thickness callout or a conductivity value cannot describe alone.

Add actual hole and outline features. Explain which holes provide electrical connection, which are mechanical and which require isolation from metal. Keep tolerances and the intended inspection boundary on the same revision. A simple IMS coupon is not automatically representative of a complex multilayer or machined construction.

Share the assembly and mounting conditions before final material selection. Heat transfer, soldering, flatness, fastening and insulation can pull the design in different directions. A useful manufacturing response identifies those tradeoffs and the evidence needed for the particular construction, without promising that one generic stack suits every product.

Before release, place the chosen requirement, the proposed construction and the evidence in one review record. Separate measured values from supplier nominal data and from your own assumptions. If a value is unknown, identify who will obtain it and what decision depends on it. An empty field is more honest and more useful than an invented typical figure.

During an A/B comparison, change one relevant variable where possible. Preserve the original inputs and the reason for the change. If several things change together, describe the result as a comparison between complete configurations. Do not attribute the entire difference to one material or geometry feature without supporting evidence.

For a repeat order, confirm that the relevant drawing, material and process revisions still match the accepted configuration. Record alternatives explicitly. This small discipline helps purchasing avoid an apparently equivalent substitution that changes the engineering basis of the original decision.
