How do I make a Bluetooth device circuit Board?

Introduction

Bluetooth technology allows wireless communication between electronic devices over short distances. It is commonly used in products like headphones, speakers, home appliances, industrial equipment, medical devices and more to remove cables and add wireless control.

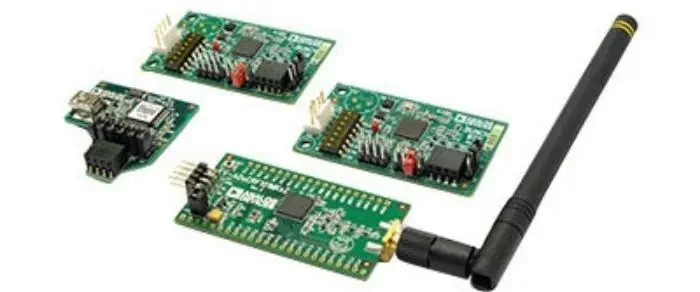

To build a Bluetooth enabled device, you need to design and fabricate a printed circuit board (PCB) that incorporates a Bluetooth module along with the main circuitry. This article will provide a step-by-step guide on making a Bluetooth circuit board covering aspects like:

• Bluetooth module selection
• Circuit design considerations
• PCB layout guidelines
• Board fabrication process
• Assembly and testing

By understanding these key steps, hobbyists, makers and engineers can successfully develop their own wireless Bluetooth products.

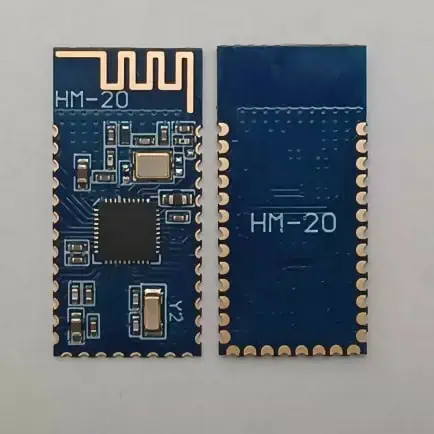

Bluetooth Module Selection

The foundation of any Bluetooth device is the Bluetooth module or chip that handles wireless connectivity. There are several criteria to select the right Bluetooth module:

Bluetooth Version

Newer versions like Bluetooth 5.0, Bluetooth 5.1 and Bluetooth 5.2 offer advantages like faster speed, longer range, better broadcasting capabilities and coexistence with other wireless technologies.

Data Rate

Modules supporting higher data rates like 2 Mbps (megabits per second) allow quicker data transfers.

Profile Support

Profiles like A2DP (wireless audio), HID (mice, keyboards), HOGP (medical devices) determine how the module can be used.

Range

Maximum range offered – modules with 100m range provide more flexibility in device location.

Sensitivity

Ability to operate at lower power levels for connecting over longer distances.

Power Modes

Lower power sleep modes extend battery life. Bluetooth Low Energy (BLE) modules are optimized for low power applications.

Operating Voltage

Modules operating at lower voltages like 1.8V, 2.5V simplify power supply design.

FCC/CE Certifications

Pre-certified modules simplify the approval process for commercial products.

Integrated Antenna

Inbuilt antenna allows faster design but often has limitations in performance.

Size

Compact SMD modules take less PCB space.

Host Interface

UART, SPI, USB etc interface options to connect with the host microcontroller.

Software Support

Readily available software libraries, sample code and documentation accelerate development.

Development Kits

Complete development kits with module samples, debugger/programmer, antennas, cables simplify prototyping.

Cost

Module cost varies widely from $2 for basic BR/EDR to $20+ for high end multiprotocol BLE.

Some popular Bluetooth module brands include TI, Microchip, Nordic, Quectel, Telink, Longsys, Espressif, BK Precision etc. Comparison of a few common modules:

Parameter	Microchip RN4871	Nordic nRF52840	Telink TLSR826x
Version	BT 5.0	BT 5.2	BT 5.0
Data Rate	2 Mbps	2 Mbps	1 Mbps
Profiles	A2DP, HFP, HID	All standard	HOGP, IOP
Range	~100m	~200m	~60m
Sensitivity	-93 dBm	-103 dBm	-93 dBm
Voltage	1.8V to 3.6V	1.7V to 5.5V	2.3V to 3.6V
Interface	UART/I2C/SPI	GPIO	GPIO
Size	15.5 x 11.7 x 2.5 mm	6 x 6 x 0.9 mm	17 x 13 mm
Cost	$9-$12	$6-$10	Under $3

Circuit Design

The circuit design for a Bluetooth PCB involves the following major blocks:

Bluetooth Module

The selected Bluetooth module would be the core component of the design providing wireless connectivity.

Microcontroller (MCU)

A microcontroller or MCU will interface with the Bluetooth module using UART/SPI and run the main application firmware. Example MCUs are STM32, PIC16, MSP430, NXP Kinetis etc.

Power Supply

A power supply module converts the input voltage to clean regulated power rails required by the Bluetooth module, MCU and other ICs. Linear or switch mode regulators are commonly used.

Indicators and Controls

LEDs provide visual feedback of Bluetooth status. Buttons or switches allow users to control pairing, discovery and other Bluetooth actions.

Support Circuits

Other components like crystal oscillator, capactive touch sensors, audio codec, battery charger etc may be needed depending on the end application.

Debug Interface

Test points, header pins and interfaces like SWD allow debugging and programming the board after assembly.

External Connectors

Connectors for USB, audio, sensors etc as required for I/O expansion.

A sample bluetooth audio receiver circuit can be:

The Bluetooth module RN52 handles the wireless audio reception. It interfaces via UART to a PIC16F1509 microcontroller that controls the device operation. The audio signals are routed to a 3.5mm stereo jack through an audio codec IC MAX9850. Indicator LEDs, a crystal oscillator for the MCU, and a USB connector for reprogramming complete the circuit design.

PCB Design and Layout

For successful operation, the Bluetooth PCB layout must be carefully designed taking the following into account:

Placement

Optimal component placement minimizes track lengths and reduces noise coupling. The Bluetooth module should be placed close to the antenna or antenna connectors trace lengths. High current paths should be kept short. Adequate clearance must be maintained around the module as per its design guidelines.

Routing

Careful routing maintains signal integrity and minimizes crosstalk. Keep power and ground traces wider. Use multiple vias when changing layers. Avoid tying noisy digital traces next to sensitive RF traces. Use shielding ground planes and voids where possible.

Impedance Control

High speed traces like USB must be impedance matched typically to 90Ω differential. The PCB stackup, trace width/spacing and dielectric constant must be appropriately designed.

Antenna Design

For small Bluetooth devices, printed antennas like meandered inverted F antennas etched onto the PCB provide adequate performance without requiring external antennas.

Bypass/Decoupling

Multiple 0.1uF ceramic bypass capacitors placed near every IC supplies filter noise on the power distribution.

Grounding

A solid low-impedance ground plane minimizes ground noise and provides shielding. Use several vias to connect ground pads to inner ground planes. Separate analog and digital ground domains.

Stackup

4 layer or 6 layer PCB with adequate copper thickness enables effective routing and shielding for RF circuits.

PCB Fabrication

The PCB fabrication process involves the following key steps:

Selecting a Fabricator

Choosing an experienced PCB manufacturer capable of delivering the required quality at a reasonable cost is important.

Gerber Generation

The layout software is used to export the fabrication and assembly files known as Gerbers which contain the PCB etching, drilling, silkscreen, solder mask and other layer information.

Footprint Confirmation

The manufacturer will validate the footprint compatibility of parts chosen before fabrication.

Panelization

For mass production, multiple PCBs will be panelized together and fabricated on larger panels which are then broken apart after completion.

Fabrication Process

The PCB fabrication process includes lamination of copper layers, lithographic printing of etch pattern, etching to form conductors, drilling holes, plating, solder mask application, silkscreen printing and scoring/routing.

Testing

100% electrical testing validates quality while automated optical inspection checks for physical defects.

Delivery

Finished boards are shipped using protective packaging to prevent damage during transit.

PCB Assembly

Populating the fabricated PCBs involves:

Parts Procurement

Sourcing all the required ICs, connectors, passives, electromechanical parts, cables etc from suppliers. Reputable authorized distributors should be used for ICs whenever possible.

Solder Paste Stencil

A metal stencil with openings matching the PCB pads is used to apply solder paste precisely prior to part placement.

Pick and Place Assembly

An automated pick and place machine picks parts from feeders and accurately assembles them on the PCB. For low volumes, hand assembly with fine tip tweezers can also be done.

Reflow Soldering

The assembly boards pass through a reflow oven profile with carefully controlled temperatures to produce reliable solder joints fixing all components.<img src=”https://drive.google.com/uc?export=view&id=1Z3aXQoGpvgBuFrXFCdSE3HNtwsfRJVfU” alt=”Reflow soldering” style=”width:500px;height:300px;”>

Cleaning

Any residual flux is cleaned off after soldering using suitable solvents to avoid corrosion or electrical leakage.

Conformal Coating

For reliability in demanding environments, a protective acrylic coating may be applied on the assembled boards.

Functional Testing

Comprehensive testing validates the Bluetooth functioning, microcontroller programming, electrical performance and device operation. Failed boards can be reworked.

Enclosure and Branding

Finally, the assembled PCB must be integrated into a proper enclosure with:

• End product branding and graphics
• Mounting points and fasteners for securing the PCB
• Cutouts, standoffs, inserts for I/O connectors
• Ventilation for heat dissipation
• Wall/chassis grounding features
• Aesthetic design elements

Professional enclosures can be inexpensively sourced from China through websites like Alibaba and Made-in-China.

Testing the Bluetooth Device

Once housed in the enclosure, end-to-end testing of the Bluetooth device should be performed:

• Power on and verify correct initialization
• Detect Bluetooth advertisement and pair to host device
• Validate wireless range in normal and obstructed conditions
• Verify correct functioning of all controls
• Test behavior at low battery level
• Ensure no interference to/from other wireless devices
• Operate continuously for long durations under soaking conditions
• Perform accelerated life tests of buttons/switches
• Check for any heating issues during prolonged usage

Extensive testing helps catch issues early and ensures a robust, reliable end product.

Conclusion

Developing a custom Bluetooth enabled device requires knowledge across circuit design, PCB layout, manufacturing processes and firmware programming. With the availability of readymade certified Bluetooth modules and contract manufacturers providing quick turnkey PCB fabrication and assembly, the barriers to building wireless products have lowered significantly. This article covered the typical workflow in designing and producing a Bluetooth circuit board. By following these steps and industry best practices, inventors and companies can transform their product ideas into functioning prototypes and commercial systems with Bluetooth technology.

FAQs

What are some key considerations for the PCB layout when using a Bluetooth module?

Maintain clearance around module, place adjacent to antenna, use controlled impedance for traces, filter power supply, utilize shielding/voids, avoid crosstalk with sensitive traces.

How do I estimate the PCB size and cost?

PCB size depends on chosen components. Using more layers reduces size. Cost depends on size, layer count, qty – small 4-layer boards in mid hundreds qty range from $5-$8 in China.

Can I use a simulator to verify my PCB circuit will function correctly?

Yes, circuit simulators like NI Multisim allow you to virtually test the schematic and even co-simulate the microcontroller code to detect issues before fabrication.

How many layers should the PCB have?

2 layers is possible for simpler circuits. 4 layers is recommended for adequate routing and shielding. More than 4 provides optimal RF performance but increases cost.

What special checks are required for a Bluetooth product?

Important validations include – FCC/CE emissions compliance, RF performance over full range, coexistence with other wireless devices, interoperability across operating systems.
