Applications and Types of PCBs for Telecommunications Industry

The telecommunications industry has been at the forefront of technological advancements for decades, continuously evolving to meet the ever-increasing demands for faster, more reliable, and more efficient communication systems. At the heart of these systems lie Printed Circuit Boards (PCBs), the unsung heroes that enable the complex functionality of modern telecommunications equipment. This article delves into the various applications and types of PCBs used in the telecommunications industry, exploring their unique characteristics, benefits, and the critical role they play in shaping our connected world.

Overview of PCBs in Telecommunications

The Role of PCBs in Telecommunications Equipment

Printed Circuit Boards serve as the foundation for virtually all electronic devices in the telecommunications sector. They provide the necessary electrical connections between components and act as a structural support for these elements. In the context of telecommunications, PCBs are responsible for:

1. Signal processing and transmission
2. Power distribution
3. Data routing and switching
4. Analog-to-digital and digital-to-analog conversion
5. Frequency modulation and demodulation
6. Amplification and filtering of signals

Key Requirements for Telecommunications PCBs

The telecommunications industry places unique demands on PCBs due to the nature of its applications. Some of the key requirements include:

1. High-frequency performance
2. Signal integrity
3. Electromagnetic compatibility (EMC)
4. Thermal management
5. Reliability and durability
6. Miniaturization
7. Cost-effectiveness

Types of PCBs Used in Telecommunications

The telecommunications industry employs a wide variety of PCB types, each designed to meet specific requirements of different applications. Here are the main types of PCBs used in this sector:

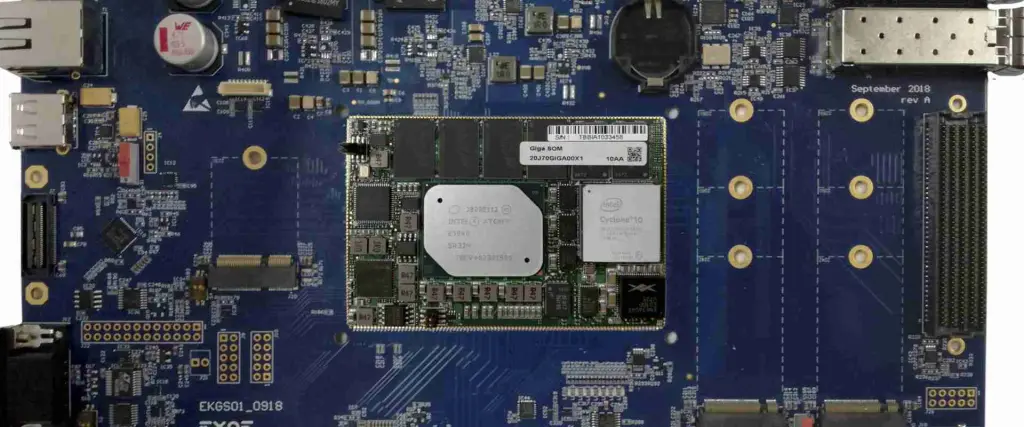

1. Multilayer PCBs

Multilayer PCBs are the workhorses of the telecommunications industry, offering high component density and excellent signal integrity.

Characteristics:

• Multiple layers of conductive material separated by insulating layers
• Typically range from 4 to 16 layers, but can go up to 50+ layers for complex applications
• Allow for complex routing of signals and power

Applications:

• Base station equipment
• Routers and switches
• Satellite communication systems

2. High-Frequency PCBs

High-frequency PCBs are designed to handle signals in the MHz to GHz range, crucial for modern telecommunications systems.

Characteristics:

• Use specialized materials like Rogers, Taconic, or PTFE
• Controlled impedance traces
• Minimized signal loss and crosstalk

Applications:

• 5G infrastructure
• Radar systems
• Microwave communication equipment

3. Flexible PCBs

Flexible PCBs offer unique advantages in terms of space-saving and durability, making them ideal for certain telecommunications applications.

Characteristics:

• Can be bent, folded, or flexed without damage
• Typically made from polyimide or polyester materials
• Allow for three-dimensional design solutions

Applications:

• Mobile phones and tablets
• Wearable communication devices
• Compact IoT devices

4. Rigid-Flex PCBs

Rigid-flex PCBs combine the benefits of both rigid and flexible boards, offering a versatile solution for complex telecommunications equipment.

Characteristics:

• Consist of rigid PCB areas connected by flexible circuits
• Reduce the need for connectors and cables
• Improve reliability by reducing points of failure

Applications:

• Satellite systems
• Aerospace communication equipment
• High-density networking devices

5. HDI (High-Density Interconnect) PCBs

HDI PCBs allow for extremely high component density, crucial for miniaturizing telecommunications devices.

Characteristics:

• Fine lines and spaces (typically <100 μm)
• Microvias and buried/blind vias
• Higher circuitry density than traditional PCBs

Applications:

• Smartphones and tablets
• Compact base station equipment
• Miniaturized IoT devices

Applications of PCBs in Telecommunications

The telecommunications industry encompasses a wide range of applications, each with its own specific PCB requirements. Let’s explore some of the key areas where PCBs play a crucial role:

1. Mobile Devices

Mobile phones and tablets are perhaps the most ubiquitous telecommunications devices in the modern world. The PCBs used in these devices must balance high functionality with extreme miniaturization.

Key PCB Features:

• Multilayer or HDI design
• Flexible or rigid-flex elements for antennas and connectors
• High-frequency capabilities for wireless communication
• Efficient power management circuitry

Challenges:

• Heat dissipation in compact designs
• Electromagnetic interference (EMI) management
• Balancing performance with battery life

2. Base Stations and Network Infrastructure

Base stations and other network infrastructure equipment form the backbone of telecommunications systems. These applications require PCBs that can handle high power and maintain signal integrity over long distances.

Key PCB Features:

• High layer count multilayer boards
• Heavy copper for power distribution
• High-frequency materials for signal transmission
• Thermal management features (e.g., copper coins, thermal vias)

Challenges:

• Maintaining signal integrity over long traces
• Managing high power and heat generation
• Ensuring reliability in outdoor environments

3. Satellite Communication Systems

Satellite communications require PCBs that can withstand harsh environments while maintaining high-frequency performance.

Key PCB Features:

• High-reliability materials (e.g., polyimide)
• Radiation-hardened designs
• Precision impedance control
• Thermal management for space environments

Challenges:

• Operating in extreme temperature conditions
• Withstanding vibration and shock during launch
• Maintaining performance over the long operational life of satellites

4. Optical Networking Equipment

As data rates continue to increase, optical networking is becoming increasingly important in telecommunications. PCBs for optical equipment must interface between optical and electrical signals effectively.

Key PCB Features:

• High-speed digital design for data processing
• Specialized areas for optical component mounting
• Precise impedance control for high-speed signals
• Low-loss materials for minimal signal degradation

Challenges:

• Managing the transition between optical and electrical signals
• Maintaining signal integrity at extremely high data rates
• Thermal management for high-power optical components

5. IoT Devices

The Internet of Things (IoT) is rapidly expanding, with billions of connected devices requiring specialized PCBs that balance functionality with cost-effectiveness and energy efficiency.

Key PCB Features:

• Compact designs (often using HDI or flexible PCBs)
• Low-power circuitry for extended battery life
• Integration of wireless communication modules
• Sensor interfaces for data collection

Challenges:

• Minimizing power consumption
• Ensuring reliability in diverse operating environments
• Balancing functionality with cost constraints

PCB Design Considerations for Telecommunications

Designing PCBs for telecommunications applications requires careful consideration of various factors to ensure optimal performance, reliability, and cost-effectiveness. Here are some key design considerations:

1. Signal Integrity

Maintaining signal integrity is crucial in telecommunications PCBs, especially as data rates continue to increase.

Design Strategies:

• Controlled impedance routing
• Minimizing crosstalk through proper trace spacing and layer stackup
• Use of differential signaling for high-speed data
• Proper termination of high-speed signals

2. Electromagnetic Compatibility (EMC)

Telecommunications equipment must comply with strict EMC regulations to prevent interference with other devices.

Design Strategies:

• Proper grounding and power plane design
• Use of EMI shielding techniques
• Careful component placement to minimize EMI
• Implementation of filtering for noise reduction

3. Thermal Management

Many telecommunications applications generate significant heat, which must be managed to ensure reliable operation.

Design Strategies:

• Use of thermal vias to conduct heat away from hot components
• Implementation of copper coins or heat sinks for high-power components
• Careful component placement to optimize heat distribution
• Selection of PCB materials with good thermal conductivity

4. High-Frequency Design

With the increasing use of high-frequency signals in telecommunications, PCB designers must pay special attention to RF design principles.

Design Strategies:

• Use of appropriate high-frequency PCB materials
• Implementation of microstrip or stripline transmission lines
• Attention to impedance matching and signal reflection
• Minimization of signal path lengths for critical RF traces

5. Miniaturization

As telecommunications devices continue to shrink, PCB designers must find ways to pack more functionality into smaller spaces.

Design Strategies:

• Use of HDI techniques like microvias and fine line/space geometries
• Implementation of component embedding technologies
• Utilization of flexible or rigid-flex designs to optimize space usage
• Careful component selection to minimize footprint sizes

Emerging Trends in Telecommunications PCBs

The telecommunications industry is constantly evolving, and PCB technology is adapting to meet new challenges. Here are some emerging trends in telecommunications PCBs:

1. 5G and Beyond

The rollout of 5G networks and the development of future 6G technologies are driving innovations in PCB design.

Key Developments:

• Use of millimeter-wave frequencies requiring specialized PCB materials and design techniques
• Integration of antenna arrays directly into PCBs
• Development of beamforming circuits for improved signal directionality

2. Artificial Intelligence and Edge Computing

The integration of AI and edge computing in telecommunications is leading to new PCB design requirements.

Key Developments:

• Integration of high-performance processing units for AI algorithms
• Design of PCBs to handle increased heat generation from powerful processors
• Implementation of advanced memory interfaces for fast data access

3. Green Telecommunications

There is a growing focus on sustainability in the telecommunications industry, impacting PCB design and manufacturing.

Key Developments:

• Use of environmentally friendly PCB materials
• Design for improved energy efficiency
• Implementation of recyclable or biodegradable components where possible

4. Advanced Materials

New PCB materials are being developed to meet the demanding requirements of next-generation telecommunications equipment.

Key Developments:

• Development of low-loss materials for high-frequency applications
• Use of liquid crystal polymer (LCP) for high-performance flexible circuits
• Implementation of graphene and other nanomaterials for improved conductivity and thermal management

5. 3D Printing and Additive Manufacturing

Additive manufacturing techniques are beginning to impact PCB production in the telecommunications industry.

Key Developments:

• 3D printing of PCB prototypes for rapid development
• Additive manufacturing of specialized antennas and RF structures
• Development of 3D-printed electronics for custom IoT devices

Comparison of PCB Types for Telecommunications Applications

To help visualize the differences between various PCB types used in telecommunications, here’s a comparative table:

PCB Type	Typical Layer Count	Flexibility	Component Density	Frequency Range	Cost	Main Applications
Multilayer	4-16+	Rigid	High	Up to 10 GHz	Medium-High	Base stations, Routers
High-Frequency	2.-8	Rigid	Medium	Up to 100 GHz	High	5G equipment, Radar
Flexible	1.-4	Flexible	Low-Medium	Up to 5 GHz	Medium	Mobile devices, Wearables
Rigid-Flex	4-12+	Partially Flexible	High	Up to 10 GHz	High	Satellites, Aerospace comms
HDI	4-16+	Rigid	Very High	Up to 20 GHz	High	Smartphones, Compact IoT

Conclusion

Printed Circuit Boards play a crucial role in the telecommunications industry, serving as the foundation for a wide range of devices and systems that keep our world connected. From the compact and densely packed PCBs in smartphones to the high-frequency boards in 5G base stations, each type of PCB is carefully designed to meet the specific requirements of its application.

As the telecommunications industry continues to evolve, with the advent of 5G, IoT, and beyond, PCB technology is adapting to meet new challenges. Innovations in materials, design techniques, and manufacturing processes are pushing the boundaries of what’s possible, enabling faster data rates, more compact devices, and more reliable communications systems.

The future of telecommunications PCBs lies in further miniaturization, improved high-frequency performance, and enhanced sustainability. As we move towards 6G networks, edge computing, and ubiquitous connectivity, PCBs will continue to be at the heart of these advancements, driving the next generation of telecommunications technology.

Frequently Asked Questions (FAQ)

1. What makes telecommunications PCBs different from PCBs used in other industries?

Telecommunications PCBs are distinguished by their focus on high-frequency performance, signal integrity, and often, the need for miniaturization. They typically require:

• Specialized high-frequency materials (e.g., Rogers, Taconic)
• Strict impedance control for signal traces
• Advanced EMI/EMC considerations
• Higher layer counts for complex routing
• Integration of RF and digital circuits on the same board

These requirements stem from the need to handle high-speed data transmission, wireless communications, and the complex signal processing inherent in telecommunications applications.

2. How do 5G requirements impact PCB design for telecommunications?

5G technology introduces several new challenges for PCB design:

• Higher frequencies (up to mmWave range) require specialized materials and design techniques
• Increased data rates demand superior signal integrity management
• Beamforming technology necessitates the integration of antenna arrays into PCBs
• Higher power densities require advanced thermal management solutions
• Miniaturization of base station equipment calls for more compact and efficient PCB designs

PCB designers must adapt to these challenges by employing advanced materials, using sophisticated simulation tools, and implementing novel design strategies to meet the demanding requirements of 5G systems.

3. What are the key considerations when designing PCBs for IoT devices in telecommunications?

When designing PCBs for IoT devices in telecommunications, key considerations include:

1. Power efficiency: Many IoT devices are battery-powered, requiring low-power design techniques.
2. Size constraints: IoT devices are often small, necessitating compact PCB designs, potentially using HDI or flexible PCBs.
3. Wireless connectivity: Integration of wireless modules (e.g., Wi-Fi, Bluetooth, cellular) is crucial.
4. Environmental factors: IoT devices may need to operate in harsh environments, requiring robust PCB designs.
5. Cost-effectiveness: IoT devices are often produced in high volumes, so PCB designs must be optimized for mass production.
6. Sensor integration: Many IoT devices incorporate various sensors, which must be properly interfaced with the PCB.
7. Security: As IoT devices are often targets for cyberattacks, PCB designs may need to incorporate security features.

4. How does thermal management differ for telecommunications PCBs compared to other applications?

Thermal management in telecommunications PCBs often faces unique challenges:

1. High power density: Telecom equipment, especially in base stations, can generate significant heat in compact spaces.
2. Outdoor applications: Many telecom PCBs must operate reliably in varying and often harsh environmental conditions.
3. Always-on operation: Telecom equipment often runs continuously, requiring sustained heat dissipation.
4. Mixed-signal environments: The presence of both high-power RF components and sensitive digital circuits requires careful thermal design.
5. Reliability requirements: Telecom infrastructure demands high reliability, making effective thermal management crucial for longevity.

Strategies for thermal management in telecom PCBs often include:

• Use of thermal vias and copper coins
• Implementation of heat sinks and spreaders
• Careful component placement and board zoning
• Use of high thermal conductivity PCB materials
• Advanced cooling solutions like liquid cooling for high-power applications

5. What are the emerging materials being used in telecommunications PCBs, and what advantages do they offer?

Several emerging materials are being explored for use in telecommunications PCBs:

1. Low-loss materials (e.g., PTFE, LCP):
   • Advantage: Improved signal integrity at high frequencies, crucial for 5G and beyond
2. Graphene:
   • Advantages: Excellent thermal conductivity, potential for creating ultra-thin and flexible PCBs
3. Liquid Crystal Polymer (LCP):
   • Advantages: Low moisture absorption, stable electrical properties at high frequencies, suitable for flexible PCBs
4. High-speed laminates (e.g., MEGTRON6):
   • Advantages: Lower dielectric loss, improved signal integrity for high-speed digital circuits
5. Ceramic-filled hydrocarbon materials:
   • Advantages: Low loss, high thermal conductivity, dimensional stability
6. Biodegradable and recyclable materials:
   • Advantage: Improved environmental sustainability

These materials offer various combinations of improved electrical performance, better thermal management, enhanced flexibility, and increased sustainability, addressing the evolving needs of the telecommunications industry.
