8 Layer Flexible PCB: Stack Zones, Routing and Build Review
An 8 layer flexible PCB contains eight conductive layers in the defined full stack. That does not mean every region must bend with all eight layers bonded together, or that a layer count alone describes the mechanical construction. Local flex zones, coverlays, bonding and supported regions need their own cross-sections.
The stack worksheet requires exactly eight copper thicknesses and seven interlayer separations. It calculates an entered local total; it does not generate an approved stackup or predict bend life.
Count conductive layers separately from films
Label copper layers L1 through L8. Then list the dielectric and bonding between them and the permanent exterior cover layers. A coverlay is not an additional copper layer, and a release liner is not part of the installed circuit.
Use the FPC lamination-material guide to keep layer roles explicit. If the construction has different local regions, provide separate schedules rather than using one total thickness everywhere.
Illustrative eight-layer inventory: not a released stack
| Sequence | Entered layer or separation | Thickness basis |
|---|---|---|
| Exterior top | Permanent top films and bonding | Included within the separate combined exterior allowance. |
| L1 / D1 | Copper 1 / first interlayer separation | 18 μm / 25 μm |
| L2 / D2 | Copper 2 / second interlayer separation | 18 μm / 25 μm |
| L3 / D3 | Copper 3 / third interlayer separation | 18 μm / 25 μm |
| L4 / D4 | Copper 4 / fourth interlayer separation | 18 μm / 25 μm |
| L5 / D5 | Copper 5 / fifth interlayer separation | 18 μm / 25 μm |
| L6 / D6 | Copper 6 / sixth interlayer separation | 18 μm / 25 μm |
| L7 / D7 | Copper 7 / seventh interlayer separation | 18 μm / 25 μm |
| L8 | Copper 8 | 18 μm |
| Exterior bottom | Permanent bottom films and bonding | Top plus bottom allowance in this example: 100 μm. |
| Local total | 8 copper + 7 separations + exterior allowance | 144 + 175 + 100 = 419 μm. Electrical layer roles not assigned. |
Eight-copper-layer thickness worksheet
Eight-copper-layer thickness worksheet
Use the current inputs and keep the assumptions
Choose the engineering question before entering data. Every field begins blank. Load example provides teaching values so you can inspect the calculation or workflow; it is not a recommendation for dimensions, materials, operating conditions or prices. The example label remains visible after editing. Reset the worksheet before preparing a record based entirely on your own project inputs.
Keep the units and measurement boundaries consistent. A finished thickness is different from an incoming film thickness; a complete current loop is different from one conductor; a bulk dielectric constant is different from effective permittivity. Identify the source and conditions of the values you enter. If information is missing, record it as an engineering question instead of selecting an attractive assumption.
Read the result together with its limitations. A positive geometric margin addresses only the dimensions entered. An evidence checklist records your statements without checking the underlying documents. A cost scenario adds your allowances without supplying current market prices. None of these tools approves a material substitution, predicts service life or issues a manufacturing quotation.
Editing an input invalidates the current result and disables its download until you run the worksheet again. The text download contains the inputs, results and stated limitations. Processing stays in this browser; the tool does not read CAD, upload project files or send your inputs to analytics. No parameters are automatically passed to Contact. Download and attach the record manually if useful, or contact RAYPCB directly without using the tool.
| Input | What to establish before using it |
|---|---|
| Review reference | Use a nonconfidential revision or scope reference. |
| Eight copper thicknesses · μm | Exactly eight comma-separated positive finished values. |
| Seven interlayer thicknesses · μm | Exactly seven positive finished separations including permanent bonding; no liners. |
| Combined exterior films / bonding · μm | Top and bottom permanent cover layers, excluding counted copper. |
Optional cost comparison from your own allowances
Use a quotation or a clearly labeled internal assumption for each input. Keep the quantity, construction and inspection scope the same when comparing alternatives. This uncalibrated planning model adds entered values; it contains no current market rates and does not issue a RAYPCB quotation. You can contact the team without completing it.
Entered construction budget
Start with routing and reference requirements
Allocate signal, power and return functions based on the circuit requirements. A visually symmetric arrangement is not automatically an adequate electrical design. High-speed routes need appropriate references and transition analysis; power paths need resistance and thermal review.
Use FPC controlled impedance for the modeling boundary. The layer worksheet does not infer plane assignments, routing capacity or the performance of a differential pair.
| Review item | What to establish |
|---|---|
| Layer count | Exactly eight copper layers; films and liners kept separate. |
| Zone definition | Full stack, bending region and supported interfaces. |
| Electrical role | Routing, references, power paths and transitions. |
| Release evidence | Proposed process, finished dimensions and verification. |
Read the example as thickness bookkeeping
Eight entered 18 μm copper layers total 144 μm. Seven entered 25 μm interlayer separations total 175 μm. Adding an entered 100 μm for the combined exterior films and bonding gives a local arithmetic total of 0.419 mm.
This is an illustrative inventory, not a recommended or qualified 8-layer construction. The inputs must represent the actual finished regions, and tolerances, pressing behavior and process compatibility still need review.
Define where movement is intended
Show whether the circuit is formed for installation, remains static or experiences repeated movement. Identify which layers continue through each flexible region and how they are joined or supported. Local transitions may dominate the mechanical behavior.
For the decision tradeoffs use flex PCB limitations. Do not infer operational flexibility from the presence of a polyimide material or from an image of a curved multilayer sample.
Review interconnections and process sequence
Specify required vias, layer connections, pad structures, coverlay openings and any local stiffeners. Coordinate the proposed drilling, metallization and lamination route with the manufacturer. Layer count alone does not establish available hole geometry or sequence capability.
Agree inspection and electrical verification for the actual construction. If representative mechanical testing is required, preserve its specimen stack and installed conditions with the released design.
Compare cost at the defined stack and yield basis
Material system, processing sequence, local features, handling and verification can affect cost. A generic price per layer misses those differences. Ask proposals to identify their scope and any assumptions about panel utilization and expected output.
The optional budget adds your own allowances. Use flex PCB cost drivers for the separate panel-to-good-unit scenario, keeping hypothetical yield distinct from observed production evidence.
Prepare an eight-layer construction review
Send the L1–L8 schedule, local stack sections, installed geometry, electrical targets, interconnection requirements, quantities and acceptance scope. Identify where the stack or outline can be adjusted and which interfaces are fixed.
Continue to flexible PCB manufacturing for the service discussion. A complete local construction is more useful than an isolated request for eight layers at one unspecified total thickness.
How to review a local finished stack
Prepare the layer inventory at a specific location. Start at one exterior surface and work through to the other, naming each permanent copper, dielectric, adhesive, shield and reinforcement. Keep removable liners and temporary carriers in a separate process list. A complete ordering description and an installed stack drawing answer different questions.
Label the dimensional basis of every entry. Incoming nominal film thickness, expected pressed thickness and finished measured thickness should not be mixed without explanation. If a local tolerance is critical, agree its measurement location and method. The arithmetic total is an aid to discussion; the manufacturing route determines the actual finished construction.
Repeat the inventory where the circuit changes. A free bend, populated island, connector tail and shielded region may have different stacks. Show the transition between them on the outline. Avoid averaging local requirements into an overall thickness that fits no specific location and conceals a mating or movement constraint.
Connect layers to functions. Copper may carry signal, return or power; a film may provide insulation, protection or bonding. Removing a layer to reduce thickness can change more than the mechanical envelope. Review the relevant electrical and process consequences before comparing the new total with the dimensional target.
Discuss process compatibility with the manufacturer. The exact grades, copper distribution, bonding sequence and subsequent assembly operations constrain what can be built consistently. A collection of individually suitable datasheets does not automatically describe a compatible stack. Record the agreed construction and any permitted material alternatives.
Define the evidence that closes the thickness question. Supplier proposals, certificates, dimensional measurements and representative mechanical trials have different roles. Identify which are required for the order and which demonstrate product behavior. A passing dimension does not by itself establish fatigue life, insulation performance or high-speed electrical compliance.
Finally, keep the local stack linked to the released drawing and installed route. When a film or adhesive changes, review the affected zones and their interfaces. Update the construction record before comparing new quotations or interpreting old validation results. The goal is a traceable finished part, not a nominal layer sum detached from manufacturing and use.
Standards, source context and limits
Use references within their stated scope. Official material documentation applies to the identified grade, conditions and revision. A supplier specimen test is not a guaranteed result for a different finished circuit. Connector drawings govern the specified parts; public category descriptions do not replace them.
Agree the applicable controlled standards, revisions, construction requirements and acceptance criteria for the order. IPC-2223 concerns flexible-board design; IPC-6013 concerns qualification and performance of flexible and rigid-flex printed boards. Assembly workmanship and product-level electrical or safety requirements are separate. A standards reference does not establish a RAYPCB certification or prove that a particular test is included.

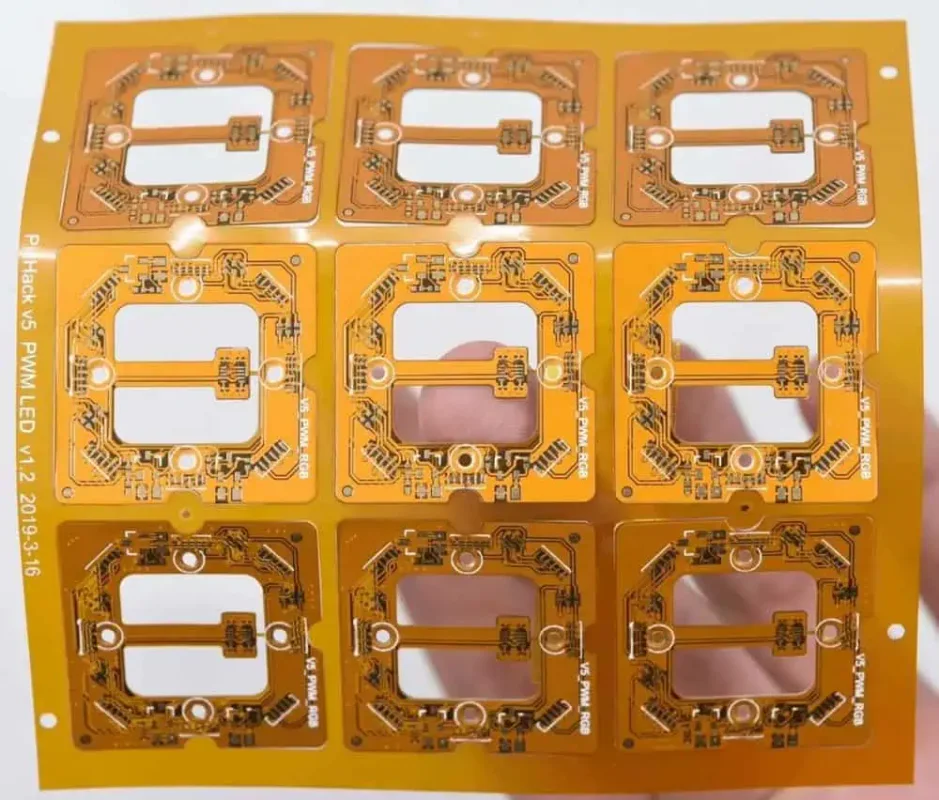

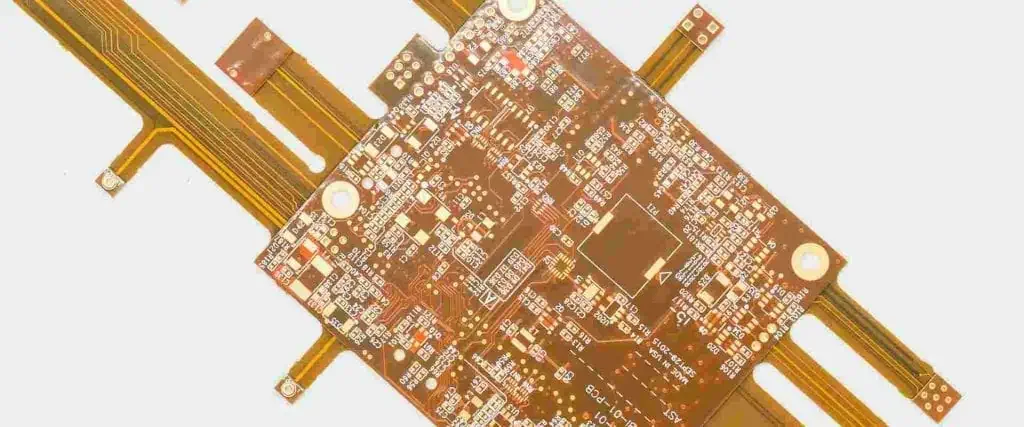

Archive photographs provide visual context from the existing website. They do not establish the precise material grade, present equipment ownership or results of your project. Original diagrams are explanatory construction and review illustrations, not released fabrication drawings or inspection evidence.
For fabrication scope and the agreed construction requirements, see PCB manufacturing.
