5G Microstrip Antenna Optimizes Network Performance

The arrival of 5G antenna technology has transformed our interactions and mobile communications with electrical engineering in the digital age. As the globe shifts toward more efficient and dependable mobile communication networks, the 5G microstrip antenna plays a crucial role in allowing the next generation of wireless communication.

5G microstrip antennas transmit and receive electromagnetic radiation through radio waves in 5G wireless communication technology networks. It is an essential component of any 5G network since it ensures reliable communication between its many features. Microstrip patch antenna technology has existed since the 1970s, but their exceptional antenna performance and low cost have made them more desirable in the 5G era.

Microstrip patch antennas are usually compact, lightweight, and low-profile, making them excellent for a MIMO system and mobile devices like smartphones and tablets. In addition, they have a cheap production cost and can be readily incorporated into existing infrastructure, which makes them a viable option for broader deployment in 5G networks.

Characterization of 5G Microstrip Antennas

The frequency range, polarization, and emission pattern of 5G microstrip antennas help to categorize them.

  • Operating Frequency

5G microstrip antennas can be low-frequency, mid-frequency, or high-frequency depending on their operating frequency band. Low-frequency 5G microstrip antennas work between 600 MHz and 1 GHz, whereas mid-frequency (center frequency) 5G microstrip antennas run between 1 GHz and 6 GHz. High-frequency 5G microstrip antennas function at frequencies greater than 6 GHz, which is sometimes the resonant frequency.

  • Polarization

An electromagnetic wave with linear polarization has a constant direction and amplitude of the electric field. An electromagnetic wave with circular polarization has a constant amplitude but a spinning electric field.

  • Emission Pattern

5G microstrip antennas can have an omnidirectional, directional, or adaptive radiation pattern. Compared to directional antennas, omnidirectional antennas emit equally in all directions. However, adaptive antennas can alter their emission pattern due to shifting environmental factors.

Microstrip 5G antenna types

Ultra Wide Band (UWB) Antenna PCB
Ultra Wide Band (UWB) Antenna PCB

Patch antennas, slot antennas, printed dipole antennas, and printed monopole antennas are a few of the several varieties of 5G microstrip antennas.

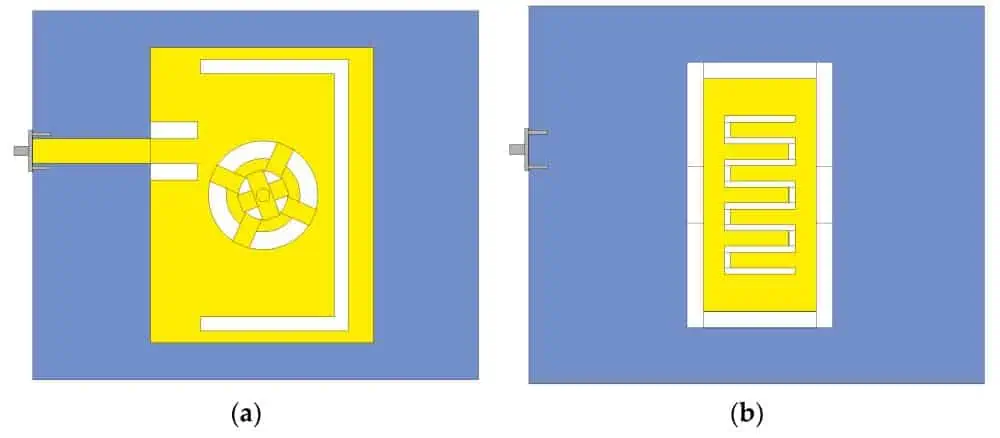

  1. Microstrip patch antenna

A flat conductive patch on a dielectric substrate makes up the microstrip patch antenna. Furthermore, microstrip patch antennas are a standard option for 5G applications because of their low profile and large antenna bandwidth, which make them suitable for a greater operating frequency in wireless communication devices.

  • Microstrip Slot Antenna

The slot antenna consists of a tiny slit or slot carved out of a conductive surface. Slot antennas, available in various sizes and forms, are frequently employed in applications that demand a broad antenna bandwidth and high gain.

  • Printed Dipole Antenna

Two conducting strips (dipoles) printed onto a dielectric substrate create a printed dipole 5G microstrip antenna. These antennas are helpful when both a large bandwidth and a low profile are necessary.

  • Printed Monopole Antennas

Printed monopole antennas consist of a single conducting strip, or monopole, installed on a ground plane. Applications that call for a low profile and compact construction frequently employ these antennas.

Considerations for a 5G microstrip antenna

When picking a 5G microstrip antenna, performing a performance analysis and examining several aspects is essential. Among the most important considerations are the following:

Suitability

Low-frequency, mid-frequency, and high-frequency 5G microstrip antennas are available in various frequency ranges. Therefore, selecting an antenna with an appropriate operating frequency range for the intended application is essential. For instance, if the antenna functions in a low-band 5G network, a low-frequency antenna may be preferable, but a high-frequency one may be preferable for a high-band network. The higher the antenna suitability, the lower the antenna’s return loss.

Polarization:

5G microstrip antennas have either linear or circular polarization. Linear polarization is appropriate for applications requiring a constant amplitude and direction of the electric field. In contrast, circular polarization is suitable for applications requiring a constant amplitude and a revolving electric field. The appropriate polarization type should depend on the application’s unique needs.

Radiation pattern:

5G microstrip antennas can have omnidirectional, directional, or adaptive radiation patterns. Omnidirectional antennas emit equally in all directions, but directional antennas radiate more intensely in one direction. Adaptive antennas can modify their emission pattern in response to varying environmental circumstances. Therefore, choosing the optimal radiation pattern should depend on the radiation elements and the application’s requirements.

Gain

Gain measures an antenna’s ability to direct the radiated power in a particular direction. Antennas with a more significant gain can transmit a more robust signal for a specific order but may have a smaller beam width. Conversely, low-gain antennas offer a larger beamwidth, but their signal strength in a single direction may diminish. The right degree of gain should depend on the application’s unique requirements.

Dimensions

5G microstrip antennas are available in an assortment of sizes and weights. Therefore, picking an antenna compatible with the installation specifications is essential. For instance, a smaller and lightweight antenna may be preferable if the antenna is positioned in a tight location.

Durability and dependability:

 5G microstrip antennas are frequently helpful in harsh conditions, such as outdoor or industrial settings, that apply MIMO antennas. Therefore, it is essential to select an antenna that is sturdy, dependable, and capable of withstanding the circumstances of the installation site.

Microstrip antenna uses throughout 5G networks.

FULL PCB MANUFACTURING Quote

In 5G networks, microstrip antennas are helpful in various applications. These antennas will suit the demanding needs of 5G networks due to their low profile, wide bandwidth, and high gain characteristics. Among the most important uses for 5G microstrip antennas are:

Wireless connectivity:

Widespread usage of 5G microstrip antennas enables wireless communications between various portable devices, including smartphones, tablets, and laptops. These antennas can handle the high data rates and low latencies required by 5G networks. It is easy to install them into mobile devices such as smartphones, tablets, and laptops to allow appropriate network connectivity and signal processing.

Data Transmission:

5G microstrip antennas are vital for transmitting and receiving data, audio, and video signals across 5G networks. These antennas help to accommodate a broad spectrum of 5G network frequencies and can transmit and receive signals over many kilometers. 5G networks allow high-speed data transfer and low-latency communication due to 5G microstrip antennas. Furthermore, 5G microstrip antennas accommodate multiple frequencies, making them ideal for 5G network coverage and wearable applications. 5G networks employ various low-band and high-band frequencies, which must be within the 5G network infrastructure.

Small cell networks construction:

Small cell networks are a crucial antenna element of 5G networks, as they boost capacity and coverage in densely populated locations. In addition, small cell networks frequently employ 5G microstrip antennas because they are suitable for the small form factor and low profile required by these systems.

Promoting beamforming and other cutting-edge technologies:

Microstrip antennas for 5G networks are frequently applied in conjunction with sophisticated technologies like beamforming, which can increase the performance of 5G networks by concentrating the transmission and reception of signals in specified directions. This aspect enables the adoption of sophisticated technologies such as massive MIMO systems (multiple-input, multiple-output) and complete duplex transmission, which can boost the capacity and coverage of 5G networks.

How 5G Microstrip Antennas Have Improved the Efficiency of 5G Networks

With its engineering and emerging technologies, 5G microstrip antennas have improved the performance of 5G networks. Included are:

Increased antenna Bandwidth:

The increased gain of 5G microstrip antennas enables them to deliver more significant amounts of bandwidth. In addition, this increased gain allows the transmission and reception of more data at any given moment, enhancing the network’s speed and dependability.

Signal Decongestion

The directional nature of 5G microstrip antennas enables them to give enhanced coverage in particular places. This improved coverage can assist in lessening signal congestion in some areas and enhance network performance generally.

Reduced Interference

5G microstrip antennas are less likely to create interference with other devices due to their low profile. As a result, it can assist in enhancing the network’s dependability and decreasing the likelihood of lost connections in communication devices.

Reduced Power Consumption:

Due to their diminutive size, 5G microstrip antennas require less power than conventional antennas. As a result, they can minimize the energy needed to power the network and increase radiation efficiency, making them suitable for communication technologies.

Microstrip Patch antenna

A microstrip patch antenna is an antenna that emits or receives electromagnetic waves using a conductor or dielectric patch. Due to its simple construction, low cost, and ease of production, it is one of the most often used antennas.

Components of the microstrip patch antennas

The microstrip patch antenna has several distinct elements collaborating to produce the desired radiation pattern. The components are the components of the patch, dielectric substrate, conductive ground plane, feed line, matching network, and antenna housing.

Patch element

The patch is the radiating antenna’s basic element., typically constructed of copper or aluminum. The rectangular patch is generally etched into the surface of the dielectric substrate. Typically, the length and breadth of the patch are a fraction of the target frequency’s wavelength.

Dielectric Substrate

The dielectric substrate provides structural support and separates the patch and ground plane. Several millimeters in thickness, it often comprises either foam or plastic. The antenna’s electrical parameters depend on the substrate’s dielectric constant, which, if chosen carefully, maximizes the radiation pattern.

Conductive Ground Plane

The conductive ground plane is the component that supplies the patch with an electrical connection. It frequently comprises a metal, such as copper or aluminum, and is typically more extensive than the patch itself. The ground plane also helps to create a sizeable electrical ground for the antenna, which aids in reducing losses and enhancing radiation efficiency.

Feed Line

The feed line connects the antenna to the radio frequency source. Typically, it is a coaxial cable or a two-wire line. The feed line transmits radio frequency energy from the start to the antenna.

Matching Network

The matching network aids in impedance matching. It, therefore, matches the antenna’s impedance to the radio frequency source’s impedance. It typically consists of capacitors and inductors and helps transmit the maximum power from the start to the antenna, enhancing the device’s impedance-matching ability.

Housing

The antenna enclosure is the antenna’s last component and shields the antenna components from the surroundings. It typically consists of metal and may be either sealed or vented. The enclosure also helps decrease the unwanted radiation the antenna emits.

Microstrip Patch Antenna Design Methodology

The following is the design methodology for microstrip patch antennas:

Substrates

A microstrip patch antenna’s substrate is the material on which the antenna is printed. The substrate should give the appropriate electrical and mechanical properties. Common microstrip patch antenna substrates include FR4, Rogers RO4350, and Polyimide (Kapton).

Due to its low price and availability, FR4 is a popular substrate. It is an epoxy-fiberglass composite with an approximate dielectric constant of 4.40 and a loss tangent of 0.02. It is rigid and appropriate for tiny antennas.

Owing to its low dielectric constant (2.2) and low loss tangent, Rogers RO4350 is a common substrate for high-frequency antennas (0.002). Additionally, it is relatively rigid, making it appropriate for compact antennas and propagation.

Polyimide is a flexible substrate frequently used for mounting big antennas on curved surfaces or large antennas on flexible substrates. The dielectric constant is 3.20, and the loss tangent is 0.002.

Antenna Design

After selecting the substrate, generating the proposed antenna design can be more manageable. Typically, the patch antenna is easy to create using a computer-aided design (CAD) tool. Patch, feed line, ground plane, and matching components make up the proposed antenna’s design. The patch is the antenna’s radiating element and is commonly configured as a square or rectangle. This connection connects the antenna to the transmitter or receiver. The ground plane is a metal sheet used to reflect radio waves. The matching components then help to tune the antenna to the appropriate resonant frequency.

Printing

We may print the antenna circuit on the substrate using several processes. The most prevalent printing processes are screen printing, photolithography, and inkjet printing.

Screen printing is a low-cost method that involves transferring a pattern onto the substrate using a screen. The screen is covered with a photosensitive emulsion, and the design is imprinted using a light source. After washing away the emulsion, the pattern is left on the substrate.

Photolithography is a more accurate printing technology that transfers a pattern onto the substrate using a photomask. The photomask is a translucent plate having a way of light-transmitting holes. The substrate is then imprinted with the design while exposed to light.

Inkjet printing is a printing method that sprays tiny droplets of an electrically conductive substance onto the substrate using a printhead. This method is suitable for small antennas due to its precision and rapidity.

Assembly

After printing the proposed antenna design onto the substrate, the antenna must be assembled. Attaching the feed line and ground plane and matching components to the substrate is required. Typically, the feed line is soldered to the substrate, whereas the ground plane and corresponding elements are bonded with epoxy or glue.

Testing

Once the antenna has been built, it must be tested to confirm the correct functionality. Typically, this entails evaluating the antenna’s radiation characteristics and impedance-matching capability. The radiation pattern measures the antenna’s efficiency, while impedance measures the antenna’s compatibility with the transmitter or receiver.

Array antenna

The phased array antenna is a form of antenna that consists of numerous radiating elements coupled via a network of electrical components. The phased array antenna’s primary function is to enhance the antenna’s beamwidth, which may be used to receive or broadcast signals in numerous directions. The phased array antenna offers a significantly larger coverage area than other antennas. Consequently, it permits substantially larger data speeds and improved signal quality.

A Brief Overview of Phased Array Antennas

5g ANTENNAS

Multiple radiating elements coupled via a network of electrical components constitute the phased array antenna’s fundamental design. The network of features enables the antenna to focus the beam in various directions. Each array unit has a phase-shift circuit for controlling the phase of the radio waves being sent or received. As a result, the antenna’s beamwidth is created by adjusting the frequency of the radio waves so that they all arrive at the same spot simultaneously.

The design of a phased array antenna can be extremely complicated, as its parts must be properly aligned and spaced for it to function correctly. For the beamwidth to be optimized, the phase of the radio waves must also be precisely regulated. To guarantee the correct operation of the designed array antenna, the phase-shift circuits for each array element must be meticulously calibrated.

Varieties of Phased Array Antennas

Linear antenna, planar antenna, and circular are the two primary phased array antennas. The linear components of linear phased array antennas are placed in a straight microstrip line. The Planar antenna is a two-dimensional array that might be circular, rectangular, or triangular in configuration. On the other hand, circular phased array antennas consist of a circular arrangement of elements.

Typically, radar, navigation, and mobile communication systems employ linear phased array antennas. However, circular phased array antennas are generally helpful in satellite communications, radio astronomy, and other applications requiring a narrower beam width.

Phased Array Antennas’ Applications

In addition to radar, navigation, communications, satellite communications, and radio astronomy, phased array antennas are used for several other purposes.

Radar:

Phased array antennas are used to identify objects using radar systems. The phased array antenna helps to scan the region to detect any items in the path of the radar beam.

Navigation Systems:

To detect the direction of a vehicle, navigation systems utilize phased array antennas. The phased array antenna scans the surrounding environment to identify the vehicle’s speed and direction.

Mobile Communications:

Phased array antennas are helpful in mobile communications systems to send and receive signals. The phased array antenna sends signals in several directions to cover a larger region.

Satellite Communications:

Phased array antennas are utilized in satellite communications systems to send signals to and from satellites. The phased array antenna broadcasts signal in numerous directions to cover a larger region. WIFI systems and Satellite transmission dishes are two practical implementation cases.

Radio Astronomy:

Phased array antennas are utilized in radio astronomy to detect radio signals emitted by distant objects. The phased array antenna searches the sky for signals to detect any that may be there.

Prospects of the 5G microstrip antenna and the array antenna

The array antenna and the microstrip antenna appear to have extremely bright futures. Research and development in the area of proposed antenna design will advance as 5G networks spread and become more common. While we expect the array antenna system to take over as the favored option for high-performance applications, we also expect the microstrip antenna to continue being a popular option for both low-cost and high-performance applications.

Additionally, we anticipate that with time, both the array antenna and the microstrip antenna will get smaller and more effective, achieving a compact form. New materials and technological developments in antennas will make it possible to create smaller, more effective designs. This improvement will make it possible to create smaller, easier-to-integrate designs for mobile devices and other tiny form factors.

Given its capacity to deliver high-performance, low-cost solutions, we look forward to seeing the microstrip and array antenna gain even more popularity over time in the 5G industry. Furthermore, more research and development in antenna design is among the key technology developments we anticipate to result from the growing popularity of 5G networks. Consequently, this will enhance the performance and capacities of both the microstrip antenna and the array antenna.

Why One Should Go for the Array Antenna Instead of the 5G Microstrip antenna

The array antenna is superior to the 5G microstrip antenna in several ways.

The gain of the array antenna is more significant than that of the microstrip antenna due to the array antenna’s numerous elements, each of which may be altered to change the antenna’s gain.

Over a microstrip antenna, the array antenna provides better directivity. This directivity is so that the array antenna may direct its radiation in a specific direction by independently adjusting each antenna element. This aspect is helpful when focusing the antenna’s energy on a particular target is crucial. In addition, the array antenna may also create several beams in various directions, which is advantageous for 5G applications since it enables the antenna to accurately guide signals in multiple directions, improving the radiation efficiency.

The array antenna is furthermore more effective than the single microstrip antenna. This is possible because the array antenna can keep a high signal-to-noise ratio throughout a broad frequency range. For 5G applications, this is crucial since the antenna must be able to send and receive data across a wide frequency range. In addition, the array antenna may also minimize signal interference, which boosts the antenna performance specifications since interference can impair transmission.

Finally, the antenna array is more dependable compared to the microstrip antenna. This dependability results from the array antenna’s capacity to preserve the signal quality over a broad frequency range, which is crucial for 5G applications since the antenna must successfully communicate across a wide frequency range. In addition, the array antenna’s ability to maintain a strong signal-to-noise ratio over a broad frequency range is also advantageous for 5G applications since it enables the antenna to broadcast and receive data more precisely.

Conclusion

Microstrip antennas are suitable for usage in 5G networks due to their many benefits. They are tiny in size, inexpensive, simple to deploy, and easily customizable to match the network’s unique requirements. However, deploying microstrip antennas in 5G networks has significant obstacles, such as their fragile construction, restricted antenna bandwidth, and directed emission pattern, enabling technologies to better their performance. On the other hand, electrical engineering and many microstrip antenna technology advancements in recent years might enhance their performance in 5G networks. Multi-band antennas, reconfigurable antennas, and active antennas are examples. In conclusion, microstrip single-patch antennas have the potential to improve the performance of 5G networks considerably, and their deployment is anticipated to increase shortly.

When deciding on the most suitable microstrip antenna for 5G applications, there are other aspects to consider. It is essential to select an antenna suited to the particular requirements.
