Ultimate Guide To the Uses and Advantages of 5.6K Resistor

A 5.6K ohm resistor is a type of resistor with a resistance value of 5.6Kilo ohms. It is equal to 5,600 ohms. Resistors are electronic components that limit or resist the current flow in a circuit, and their resistance is measured in ohms. In this case, the resistance of the 5.6K ohm resistor is 5,600 ohms.

Resistors are commonly used in electronic circuits for various purposes, such as voltage division, current limiting, and signal conditioning. The use of specific resistors in a circuit depends on the requirements of the circuit and the design parameters. Let’s dig deeper to know more about the 5.6K resistor.

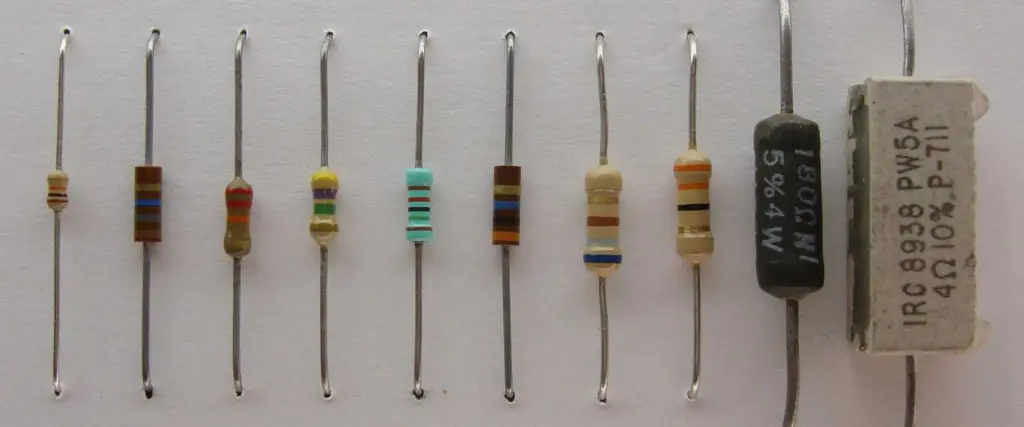

Color Code of 5.6K Resistor

Color code makes every resistor unique. You can easily recognize the resistor with its color code. It also gives you a rough idea about the resistance of the resistor. At first glance, you can get the idea of resistance with color codes.

The color code for a 5.6K Ohm resistor is Green, Blue, Red, and Gold, respectively. The first band is green, representing the resistance value’s first digit. In this case, green represents the number five. The second blue band also represents the number five.

The third band is red, which represents the multiplier for the resistance value. In this case, red represents a multiplier value of 100. So, the total resistance value is 560 ohms. The fourth band is gold, which represents the tolerance of the resistor. It means the actual resistance value of the resistor can vary by up to five percent from the stated value of 5.6K Ohms.

What Are the Special Uses of A 5.6K Resistor?

5.6K Ohm resistors have various uses in electronic circuits. Here are a few examples:

1. Voltage Division

In many circuits, a voltage needs to be divided down to a lower level. A 5.6K Ohm resistor, in combination with other resistors, makes the best voltage divider. It creates a voltage divider in the circuit to achieve the desired voltage level.

2. Current Limiting

In circuits that require a specific amount of current to flow, a 5.6K Ohm resistor is helpful in limiting the current flow.  They become the hurdle in the current flow.

3. Pull-Up And Pull-Down Circuits

In digital circuits, a 5.6K Ohm resistor is useful as a pull-up or pull-down resistor. It serves its purpose best. A pull-up resistor is connected to a signal line. The positive voltage supply ensures that the signal line is at a high level. Similarly, it works well for pull-down circuits.

4. Timing Circuits

You may know about the time delay in circuits. Time delay is crucial for the proper functioning of some specific circuits.  In some specific circuits, a 5.6K Ohm resistor is helpful in combination with a capacitor to create a time delay. Yes, the time delay is an important feature in many circuits. It helps you to delay the flow of current from certain parts of the circuit. These are just simple examples of the uses of a 5.6K Ohm resistor in electronic circuits. The specific use of the resistor depends on the requirements of the circuit. Similarly, its uses vary from device to device.  Design parameters also help to decide which resistor will fit in the circuit.

The 5.6K ohm circuit has many advantages.

· Wide Availability

5.6K Ohm resistors are a common value and are readily available in most electronics stores or online retailers. Always purchase from a reliable vendor because a low-quality resistor can ruin all circuits.

· Consistent Performance

Resistors have a high level of consistency in their performance, which means that 5.6K Ohm resistors will provide a predictable level of resistance across multiple units.

· Low Cost

5.6K Ohm resistors are relatively inexpensive compared to other electronic components, making them an economical choice for many circuit designs.

· Wide Range of Applications

5.6K Ohm resistors are versatile resistors. It is suitable to fit a variety of electronic circuits. From voltage dividers to timing circuits, making it a versatile component. You can make a number of circuits for different purposes by using it.

· Hassle-Free to Use

Sometimes it’s hard for a layman to place the resistor in the circuit. 5.6K Resistors are simple to integrate into electronic circuits and do not require any additional components or specialized knowledge to use. Overall, the use of a 5.6K Ohm resistor can provide a reliable, cost-effective, and versatile solution to a wide range of electronic circuit design challenges.

How Is A 5.6K Ohm Resistor Better Than A 5.5 K Resistor?

Its availability makes it the first choice. 5.6K Ohm resistors may be more widely available and easier to find than 5.5K Ohm resistors, especially in certain regions or markets.

Resistors have a tolerance, which is the maximum deviation from their stated resistance value. A 5.6K Ohm resistor with a tighter tolerance may provide a more precise performance than a 5.5K Ohm resistor with a wider tolerance.

If a circuit has been designed specifically for a 5.6K Ohm resistor, switching to a 5.5K Ohm resistor may alter the circuit’s performance, making it less optimal for the intended use.

However, it’s also worth noting that in many cases, a 5.5 K Ohm resistor may be just as suitable for a particular circuit as a 5.6K Ohm resistor, and the differences between the two may not be significant enough to affect the circuit’s overall performance. Ultimately, the choice of which resistor to use depends on the specific requirements of the circuit and the design parameters.

Wrapping Up

The 5.5 k resistor has a decisive place in the electronic circuit world. You deny its importance. You can use it alone or combine it with some other resistor of different resistance. Every time it serves you best. Always find a reliable vendor for the purchase of electronic parts. A low-quality resistor can ruin your circuit.
