In today’s highly competitive electronics industry, protecting your intellectual property (IP) is paramount. As a hardware designer, your printed circuit board (PCB) designs are valuable assets that represent countless hours of research, development, and innovation. Unfortunately, the manufacturing process often exposes these designs to potential theft or unauthorized replication. This article aims to provide comprehensive guidance on safeguarding your PCB designs from unscrupulous manufacturers, ensuring the integrity of your IP and the long-term success of your business.

Understanding the Risks

Before delving into the protective measures, it’s crucial to understand the potential risks associated with PCB manufacturing outsourcing. Here are some common scenarios that highlight the importance of design protection:

1. Unauthorized Replication: A manufacturer might attempt to replicate your PCB design without your consent, producing counterfeit products for their own gain or reselling the design to third parties.
2. Reverse Engineering: Skilled engineers at the manufacturing facility could reverse engineer your PCB design, gaining access to your proprietary technology and trade secrets.
3. Design Theft: In some cases, unethical employees or contractors may intentionally steal your PCB design files and sell them to competitors or use them for personal gain.
4. Intellectual Property Infringement: Inadequate protection measures can lead to patent, copyright, or trademark infringement, resulting in costly legal disputes and damage to your brand reputation.
5. Loss of Competitive Advantage: If your PCB design falls into the wrong hands, your competitors may gain an unfair advantage by leveraging your hard work and innovation.

These risks underscore the importance of implementing robust protection strategies to safeguard your PCB designs throughout the manufacturing process.

Protecting Your PCB Design

Protecting your PCB design involves a multi-faceted approach that addresses various stages of the design and manufacturing process. Here are some effective strategies to consider:

1. Non-Disclosure Agreements (NDAs)

Before engaging with a PCB manufacturer, it’s crucial to have a well-crafted non-disclosure agreement (NDA) in place. An NDA is a legally binding contract that prohibits the manufacturer from disclosing or misusing your confidential information, including PCB design files, schematics, and other proprietary data.

Ensure that the NDA covers the following key aspects:

• Clear definition of confidential information
• Limitations on the use and disclosure of confidential information
• Obligations to protect confidential information
• Duration of the agreement and provisions for termination
• Remedies and penalties for breaches of the agreement

It’s advisable to have your legal counsel review the NDA to ensure it meets your specific needs and complies with applicable laws and regulations.

2. Intellectual Property Protection

Protecting your intellectual property (IP) through patents, copyrights, and trademarks is essential for safeguarding your PCB designs. Here are some strategies to consider:

Patents

patents can protect the novel and non-obvious aspects of your PCB design, including circuit layouts, mechanical structures, and innovative features. By obtaining patents, you gain exclusive rights to your invention, deterring others from unauthorized use or replication.

Copyrights

Copyrights can protect the creative aspects of your PCB design, such as schematics, artwork, and technical documentation. While copyrights do not protect the functional aspects of your design, they can prevent others from reproducing or distributing your copyrighted materials without permission.

Trademarks

Trademarks can protect the branding elements of your PCB design, such as product names, logos, and distinctive markings. By registering trademarks, you can prevent others from using confusingly similar marks, ensuring consumer recognition and brand protection.

3. Data Security Measures

Implementing robust data security measures is crucial to prevent unauthorized access to your PCB design files. Here are some recommended practices:

Encryption

Encrypt all PCB design files, schematics, and related documentation before sharing them with the manufacturer. Use industry-standard encryption algorithms and strong encryption keys to ensure data confidentiality.

Access Controls

Implement strict access controls to limit access to your PCB design files. Only authorized personnel should have access to sensitive information, and access should be granted on a need-to-know basis.

Secure File Transfer

When transferring PCB design files to the manufacturer, use secure file transfer protocols (SFTP) or encrypted file-sharing platforms. Avoid sending sensitive data via unsecured email or file-sharing services.

Regular Audits and Monitoring

Conduct regular audits and monitoring of your data security measures to identify and address any potential vulnerabilities. Keep logs of all file transfers and access attempts to detect any suspicious activity.

4. Obfuscation Techniques

Obfuscation techniques can make it more challenging for unauthorized individuals to reverse engineer or understand your PCB design. Here are some strategies to consider:

Circuit Obfuscation

Employ circuit obfuscation techniques, such as adding dummy components, rerouting traces, or using camouflaging techniques, to obscure the actual functionality of your PCB design.

Firmware Encryption

If your PCB design includes firmware or embedded software, encrypt the firmware files to prevent unauthorized access or modification.

Design Watermarking

Embed digital watermarks or unique identifiers within your PCB design files, schematics, or documentation. These watermarks can help prove ownership and track unauthorized copies if your design is leaked or misused.

5. Manufacturing Process Controls

Implement stringent controls during the PCB manufacturing process to minimize the risk of design theft or unauthorized replication. Here are some recommendations:

Secure Manufacturing Facilities

Choose a reputable PCB manufacturer with secure manufacturing facilities and strict access controls. Conduct on-site audits or inspections to ensure proper security measures are in place.

Split Manufacturing

Consider splitting the manufacturing process across multiple facilities or vendors, reducing the risk of any single entity having access to the complete design. This approach can make it more challenging to reverse engineer or replicate your PCB design.

Component Obfuscation

Obfuscate or obscure critical components during the manufacturing process by using non-descriptive labels or packaging. This can make it more difficult for unauthorized individuals to identify and replicate sensitive components.

Secure Delivery and Logistics

Implement secure delivery and logistics procedures to prevent interception or tampering during the transportation of your PCB design files or finished products.

6. Contractual Safeguards

In addition to NDAs, incorporate robust contractual safeguards into your manufacturing agreements to protect your PCB design. Here are some key provisions to consider:

• Ownership and intellectual property rights clauses
• Confidentiality and non-disclosure obligations
• Restrictions on reverse engineering or unauthorized use
• Indemnification and liability clauses
• Termination and dispute resolution mechanisms

Consult with legal professionals to ensure that your manufacturing contracts comply with applicable laws and regulations and provide adequate protection for your PCB design.

7. Employee Awareness and Training

Educate your employees about the importance of protecting your PCB design and intellectual property. Implement regular training programs to raise awareness of potential risks, security best practices, and the consequences of data breaches or IP infringement.

Establish clear policies and procedures for handling sensitive information, and ensure that all employees understand and adhere to these guidelines.

Frequently Asked Questions (FAQs)

1. Why is it important to protect PCB designs from manufacturers?

Protecting your PCB designs from manufacturers is crucial to safeguard your intellectual property, prevent unauthorized replication or reverse engineering, and maintain your competitive advantage in the market. Design theft or infringement can lead to significant financial losses, damage to your brand reputation, and costly legal disputes.

2. What are the common risks associated with outsourcing PCB manufacturing?

Some common risks include unauthorized replication of your design, reverse engineering by skilled engineers, intentional design theft by unethical employees or contractors, intellectual property infringement, and loss of competitive advantage if your design falls into the wrong hands.

3. How can non-disclosure agreements (NDAs) help protect PCB designs?

NDAs are legally binding contracts that prohibit the manufacturer from disclosing or misusing your confidential information, including PCB design files, schematics, and other proprietary data. They establish clear obligations and remedies for breaches, providing legal protection for your intellectual property.

4. What are some effective obfuscation techniques for PCB designs?

Obfuscation techniques can make it more challenging to reverse engineer or understand your PCB design. These include circuit obfuscation (adding dummy components, rerouting traces, or using camouflaging techniques), firmware encryption, and design watermarking.

5. Why is it important to implement secure file transfer and data encryption when sharing PCB designs with manufacturers?

Secure file transfer protocols and data encryption ensure the confidentiality and integrity of your PCB design files during transmission and storage. Unsecured file transfers or unencrypted data can be intercepted or accessed by unauthorized parties, potentially leading to design theft or misuse.

Conclusion

Protecting your PCB design from manufacturers is a critical aspect of safeguarding your intellectual property and maintaining a competitive edge in the electronics industry. By implementing a comprehensive strategy that includes NDAs, intellectual property protection, data security measures, obfuscation techniques, manufacturing process controls, contractual safeguards, and employee awareness, you can significantly reduce the risks associated with outsourcing PCB manufacturing.

Remember, protecting your PCB design is an ongoing process that requires vigilance, continuous improvement, and adapting to evolving threats and technologies. By prioritizing design protection, you can ensure the long-term success of your business and protect the fruits of your innovation.

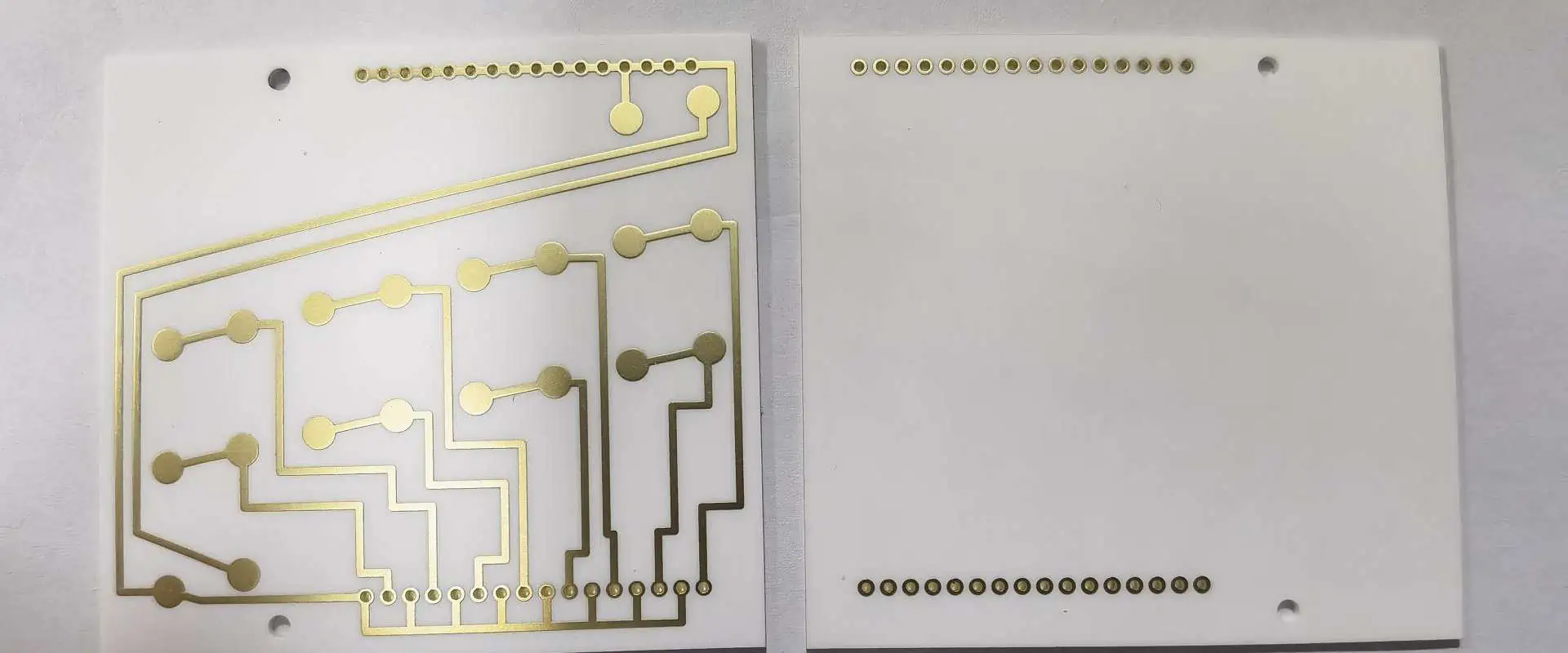

Low Temperature Co-fired Ceramic (LTCC) is a specialized manufacturing technology used to create high-performance, highly integrated circuit boards. LTCC PCBs, or Low Temperature Co-fired Ceramic Printed Circuit Boards, are a type of multilayer ceramic board that offers unique advantages over traditional PCBs, particularly in applications that require high frequency, high reliability, and harsh environment operation.

Overview

LTCC technology involves stacking and laminating multiple layers of ceramic green tapes, which are then co-fired (sintered) at relatively low temperatures (typically between 850°C and 950°C) to form a monolithic structure. Each layer can be patterned with conductive materials, such as tungsten or gold, creating a dense, multilayer circuit board with embedded passive components and hermetic packaging.

The key advantages of LTCC PCBs include:

• High frequency performance (up to millimeter-wave frequencies)
• Low dielectric loss and low signal propagation delay
• Excellent thermal conductivity and stability
• Hermetic sealing and resistance to harsh environments
• Integration of passive components (resistors, capacitors, inductors)
• High reliability and long operational life

These unique properties make LTCC PCBs well-suited for a wide range of applications, including:

• Aerospace and defense systems
• Automotive electronics
• Telecommunications
• Medical devices
• Industrial sensors and controls

Manufacturing Process

The manufacturing process of LTCC PCBs involves several critical steps:

1. Tape Casting: Ceramic green tapes are formed by mixing ceramic powder (typically alumina or glass-ceramic) with organic binders and solvents, and then casting the mixture into thin, flexible sheets.
2. Patterning: Individual layers are patterned with conductive materials, such as tungsten or gold, using screen printing or photolithographic techniques. These patterns form the conductive traces, vias, and component pads on each layer.
3. Via Formation: Vias (vertical interconnect access) are created by punching or laser drilling holes through the ceramic green tapes, which will be filled with conductive materials during the next step.
4. Stacking and Lamination: The patterned layers are carefully aligned and stacked, with conductive via-fill materials applied between layers to create vertical interconnects. The stack is then laminated under pressure and heat to form a single, integrated structure.
5. Co-firing: The laminated stack is fired (sintered) at high temperatures (typically between 850°C and 950°C) in a controlled atmosphere. During this process, the organic binders are burned off, and the ceramic materials sinter together, forming a dense, monolithic structure.
6. Post-firing Operations: After co-firing, additional processes may be performed, such as plating, component assembly, and encapsulation, depending on the specific application and design requirements.

Electrical Properties

The unique material properties of LTCC PCBs contribute to their excellent electrical performance, particularly at high frequencies:

1. Low Dielectric Constant (εr): The ceramic materials used in LTCC have a relatively low dielectric constant, typically ranging from 5 to 9. This low dielectric constant helps to reduce signal propagation delay and improve high-frequency performance.
2. Low Dielectric Loss: LTCC materials exhibit very low dielectric loss, which minimizes signal attenuation and ensures efficient signal transmission, even at high frequencies.
3. Low Coefficient of Thermal Expansion (CTE): The ceramic materials used in LTCC have a low CTE, which matches well with the CTE of many integrated circuit (IC) packages. This compatibility reduces stress and potential failures due to thermal cycling.
4. High Thermal Conductivity: LTCC materials have good thermal conductivity, allowing effective heat dissipation and improving the reliability of high-power components.
5. Low Signal Propagation Delay: The low dielectric constant and low loss tangent of LTCC materials result in low signal propagation delay, which is critical for high-speed digital and RF applications.

Passive Component Integration

One of the key advantages of LTCC technology is the ability to integrate passive components, such as resistors, capacitors, and inductors, directly into the circuit board structure. This integration is achieved by patterning the desired components onto the ceramic green tapes using specialized materials and processes.

Some common passive components that can be integrated into LTCC PCBs include:

• Resistors: Formed by patterning resistive materials, such as ruthenium oxide or lanthanum strontium manganite, onto the ceramic green tapes.
• Capacitors: Created by patterning high-dielectric-constant materials, such as barium titanate or lead zirconate titanate, between conductive layers.
• Inductors: Formed by patterning conductive coils or spirals onto the ceramic layers.

The integration of passive components offers several benefits, including:

• Reduced board size and weight
• Improved electrical performance (reduced parasitics, better component matching)
• Enhanced reliability (monolithic structure, elimination of solder joints)
• Potential cost savings (fewer discrete components, simplified assembly)

Applications

LTCC PCBs are widely used in various applications that demand high performance, reliability, and operation in harsh environments. Some of the key application areas include:

1. Aerospace and Defense: LTCC PCBs are used in avionics systems, radar systems, missile guidance systems, and other military and aerospace applications that require high reliability, resistance to harsh environments, and high-frequency performance.
2. Automotive Electronics: The excellent thermal properties and reliability of LTCC PCBs make them suitable for automotive applications, such as engine control units, sensors, and advanced driver assistance systems (ADAS).
3. Telecommunications: LTCC technology is widely used in the telecommunication industry for high-frequency applications, such as RF front-end modules, power amplifiers, and antenna arrays for cellular base stations and satellite communications.
4. Medical Devices: The biocompatibility and hermetic packaging capabilities of LTCC PCBs make them suitable for implantable medical devices, such as pacemakers, cochlear implants, and neural stimulators.
5. Industrial Sensors and Controls: LTCC PCBs are used in various industrial applications, including pressure sensors, flow meters, and harsh environment monitoring systems, due to their ruggedness and resistance to extreme temperatures, vibrations, and chemicals.

Advantages and Disadvantages

Like any technology, LTCC PCBs have both advantages and disadvantages that should be considered when evaluating their suitability for a particular application.

Advantages

• High frequency performance: LTCC PCBs exhibit excellent high-frequency performance, making them suitable for applications requiring millimeter-wave frequencies.
• Low dielectric loss: The low dielectric loss of LTCC materials ensures efficient signal transmission, even at high frequencies.
• Thermal stability: The ceramic materials used in LTCC PCBs have a low coefficient of thermal expansion (CTE), ensuring stability and reliability in harsh thermal environments.
• Hermetic packaging: LTCC PCBs can be hermetically sealed, providing protection against moisture, contaminants, and harsh environments.
• Passive component integration: LTCC technology allows for the integration of passive components, such as resistors, capacitors, and inductors, directly into the board structure, reducing size and improving performance.
• High reliability: LTCC PCBs have a monolithic structure and lack solder joints, resulting in high reliability and long operational life.

Disadvantages

• High manufacturing costs: The specialized manufacturing processes and materials used in LTCC technology can make LTCC PCBs more expensive compared to traditional PCBs, especially for low-volume applications.
• Limited board size: Due to constraints in the manufacturing process, LTCC PCBs are typically limited in size, making them less suitable for large-scale applications.
• Design complexity: The design and manufacturing of LTCC PCBs can be more complex compared to traditional PCBs, requiring specialized software tools and expertise.
• Limited component availability: The range of available components that can be integrated into LTCC PCBs is limited compared to traditional surface-mount technology (SMT) components.
• Thermal management challenges: While LTCC PCBs have good thermal conductivity, effective heat dissipation can still be a challenge, particularly for high-power applications.

Future Trends and Developments

As technology continues to advance, the demand for high-performance, reliable, and compact electronic systems will drive further developments in LTCC technology. Some of the anticipated future trends and developments in LTCC PCBs include:

1. Higher integration and miniaturization: Ongoing efforts are being made to further miniaturize LTCC components and increase the level of integration, enabling even more compact and high-density circuit designs.
2. Advanced materials: Research is ongoing to develop new ceramic materials with improved properties, such as higher dielectric constants, lower loss tangents, and better thermal conductivity, to enhance LTCC PCB performance.
3. 3D packaging and system-in-package (SiP) solutions: LTCC technology is well-suited for 3D packaging and system-in-package (SiP) solutions, where multiple components and functionalities can be integrated into a single, compact package.
4. New manufacturing techniques: Advancements in manufacturing techniques, such as additive manufacturing (3D printing) and direct-write technologies, may enable new design possibilities and improve the cost-effectiveness of LTCC PCB production.
5. Emerging applications: As technology evolves, new applications for LTCC PCBs may emerge, particularly in areas such as 5G and beyond wireless communications, Internet of Things (IoT) devices, and advanced sensing and monitoring systems.

Overall, the unique properties and advantages of LTCC PCBs position them as a critical technology for high-performance, reliable, and compact electronic systems in various industries.

Frequently Asked Questions (FAQ)

1. What is the difference between LTCC and traditional PCBs?

Traditional PCBs are made from glass-reinforced epoxy laminate materials, while LTCC PCBs are made from ceramic materials that are co-fired at high temperatures. LTCC PCBs offer superior high-frequency performance, thermal stability, and the ability to integrate passive components, but they are generally more expensive and have limited board size compared to traditional PCBs.

2. What are the typical materials used in LTCC PCBs?

The most commonly used ceramic materials for LTCC PCBs are alumina (Al2O3) and glass-ceramic composites. Conductive materials like tungsten, gold, and silver are used for patterning the conductive traces and vias.

3. Can LTCC PCBs be repaired or reworked?

Due to their monolithic structure and co-fired manufacturing process, LTCC PCBs are generally difficult to repair or rework. Any modifications or repairs would require specialized techniques and equipment, making it challenging and potentially expensive.

4. What is the typical operating temperature range for LTCC PCBs?

LTCC PCBs can typically operate in a wide temperature range, from cryogenic temperatures (-196°C) up to temperatures as high as 400°C or even higher, depending on the specific materials used and the application requirements.

5. Can LTCC PCBs be used for high-power applications?

While LTCC PCBs have good thermal conductivity, effective heat dissipation can be a challenge for high-power applications. Specialized thermal management techniques, such as the use of heat sinks or liquid cooling, may be required for high-power LTCC PCB designs.

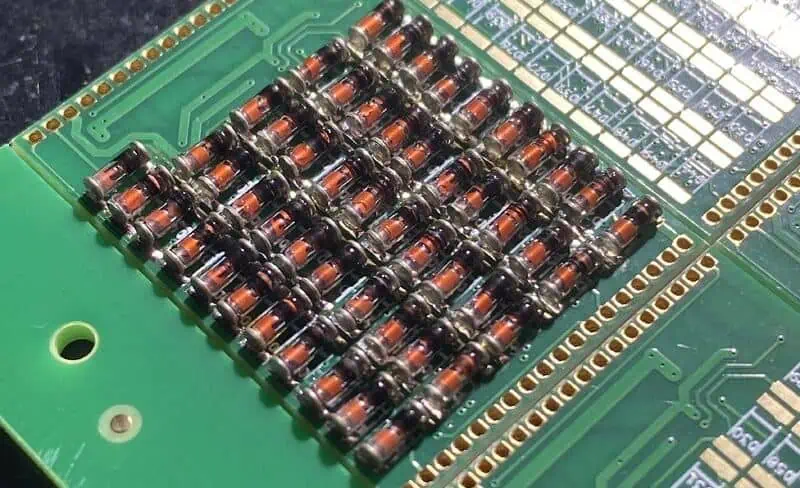

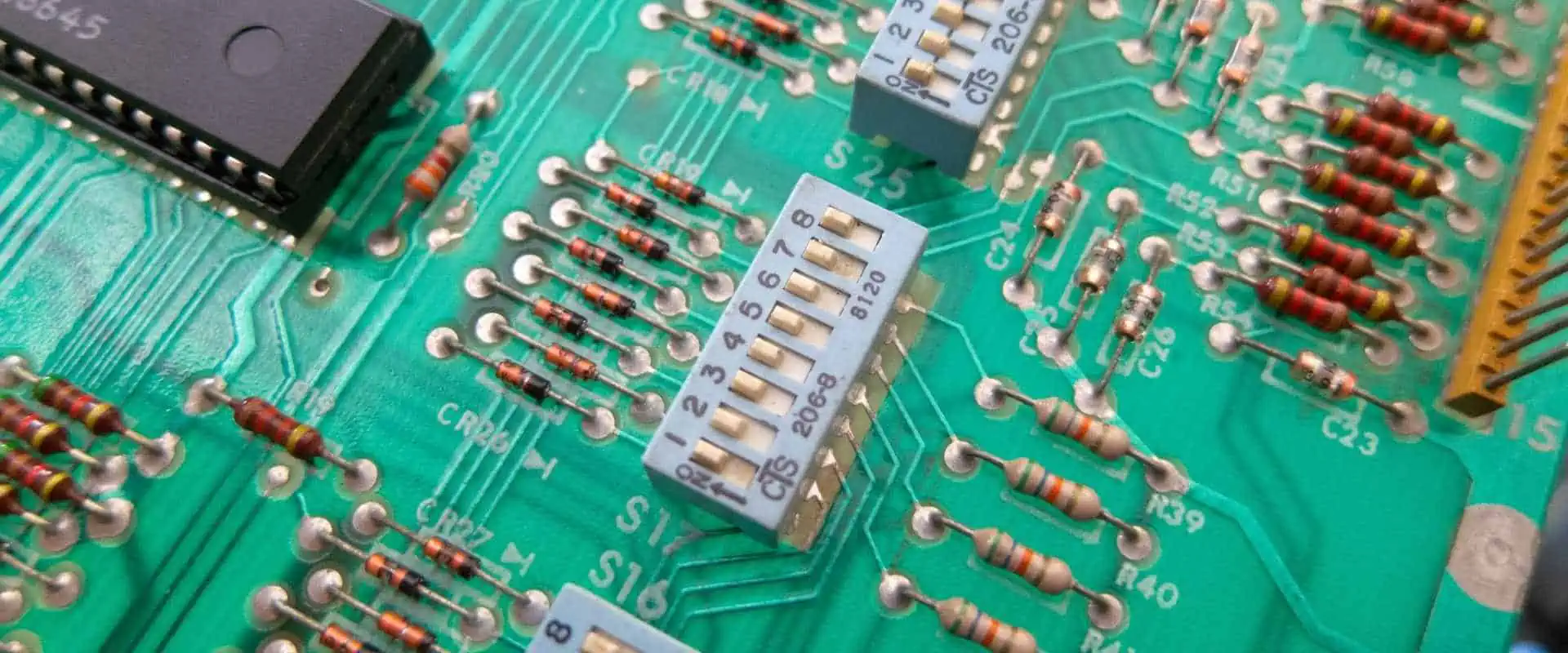

Mini-MELF (Mini Molded Electronics with Lead Frame) diode boards are printed circuit boards (PCBs) that contain miniaturized surface mount MELF (Mold Electronic Lead Frame) diodes. MELF diodes are a type of surface mount diode package distinguished by their cylindrical plastic casing with leads extruding from both ends, giving the appearance of resistors.

Mini-MELF diodes have all the same electrical characteristics as standard through-hole diodes but are 90% smaller in size. Their compact footprint and low height profile make them ideal for dense PCB assemblies where space is limited and low component height is needed.

Benefits of mini-MELF boards

Here are some of the key benefits of using mini-MELF diode boards:

• Space saving: Their miniature size allows fitting more diodes per unit area on a PCB compared to larger thru-hole or standard SMD packages. This saves precious real estate on crowded boards.
• Low profile: With component heights less than 1 mm, mini-MELF builds allow for very slim product enclosures and stacks.
• Efficiency: The shortened internal lead lengths significantly reduce parasitic impedances, allowing the diodes to operate at higher frequencies and switching speeds.
• Reliability: Solid construction with fewer solder joints increases mechanical stability. The molded plastic enclosure also protects the diode chip from environmental damage.
• Simplified assembly: Pick and place automation allows high volume manufacturing. Reflow soldering eliminates manual solder joint errors.

Types of mini-MELF diode boards

There are a few common types of mini-MELF diode boards, categorized by their circuit configurations and diode characteristics.

Rectifier boards

Rectifier boards contain diodes wired in various rectifying circuits to convert alternating current (AC) voltages to direct current (DC). Common configurations include:

• Single diode: Contains one diode. Used for half-wave rectification in low power applications.
• Center tap: Contains two diodes with a center tapped secondary transformer. Allows full wave rectification.
• Bridge: Contains 4 diodes in a wheatstone bridge formation for full wave rectification without requiring a center tapped transformer.

Voltage regulator boards

Voltage regulator boards use Zener diodes to regulate voltage and protect downstream electronics from spikes or transients. They provide a constant, stable DC output voltage despite fluctuations in supply voltage or load conditions. Common examples include:

• Shunt regulator: Uses a Zener diode in parallel to divert excess current and clamp the output voltage against overvoltage spikes.
• Series regulator: Uses a Zener diode in series to lower and regulate excessive input voltages down to a desired level. Very stable but less efficient.

Protection boards

Protection boards utilize diodes to safeguard sensitive electronics from reverse voltages, overcurrents or static discharges. Examples include:

• Reverse polarity protection: Blocks current flow against accidental reverse polarity connections.
• Overvoltage clamps: Divert overvoltage transients to protect circuits.
• Snubbers: Combine diodes with resistors and capacitors to suppress voltage spikes.
• ESD protection: Protect electronics from electrostatic discharge (ESD) events.

Logic gate boards

These boards integrate diodes in simple digital logic IC circuits like AND, OR, NAND, and NOR gates for implementing basic digital logic functions.

Mixer/multiplier boards

Using diode bridges and op-amps, these boards can mathematically combine multiple analog signals to produce a mixed or multiplied result. Used in analog computing equipment.

Composition of a typical mini-MELF board

While there are many types of custom mini-MELF boards, most share common design elements, components, and materials:

PCB substrate

The PCB substrate forms the base of the board providing mechanical support and electrical connectivity. Common materials include:

• FR-4 glass epoxy – Most common rigid PCB material
• Flexible PCB films – For bendable boards
• High frequency ceramic – For RF and microwave boards
• Metal core PCBs – For high power boards

Copper traces

Etched copper traces make up the conductive wiring patterns on the PCB to route signals between pads and components.

Solder mask

The solder mask is a thin lacquer coating that protects copper traces from oxidation and prevents solder bridges from forming between closely spaced traces. It defines the actual pads and trace widths.

Silkscreen

Silkscreen is the white printing that identifies the board name, component designators, values, polarity markings and other annotations. It aids in assembling and testing boards.

Diodes

The active components that dominate the board will be the miniature surface mount MELF package diodes. Common diode types include:

• Standard low power signal diodes – 1N4148, 1N914
• High speed switching diodes – 1N4148W, BA159
• Zener voltage regulator diodes – BZX84Cxx, MM3Zxx
• Schottky power rectifier diodes – 1N5819, SB120
• TVS transient protection diodes – SM712, 14VS04

Supporting components

Other supporting parts may be required depending on board functionality:

• Resistors, capacitors
• Transformers, inductors, chokes
• Heat sinks and cooling hardware
• Integrated circuits
• Connectors, bridges, jumpers

Manufacturing process of mini-MELF boards

Modern PCB manufacturing utilizes sophisticated automation to mass produce boards with exacting tolerances and minimal defects. Here is the typical fabrication sequence:

Design

Board layouts and circuit schematics are designed with specialized CAD software tools. Engineers will simulate board performance with spice models prior to release.

Materials procurement

Base laminate materials, copper foils, solder masks, and component reels are sourced from qualified suppliers to meet specifications.

Film patterning

A photosensitive dry film is laminated onto copper clad laminate boards and then selectively exposed to UV through custom phototools. This forms a protective mask in the desired final copper pattern after developing.

Copper etching

Exposed copper is etched away chemically with etchants like ferric chloride or ammonium persulfate, leaving only the protected copper traces underneath the resist.

Stripping and etching

The remaining resist film is stripped away, exposing the raw PCB with finished copper traces. The edges are routed to cut boards to size.

Solder mask & silkscreen

A solder mask layer is deposited via electrodeposition or prints to coat the PCB. Silkscreen annotations are traditionally screen printed but also transitioning to inkjet.

Component loading

Pick and place machines populate boards by loading diodes, passives, and other parts onto pad surfaces from reels at extreme speeds and accuracy.

Soldering

Reflow ovens use precisely timed heating stages to melt solder paste and form reliable electrical solder joints to anchor components.

Testing & inspection

Quality checks at multiple points verify proper board fabrication, correct part placements, reliable solder joints, and functional operation.

Shipping

Finished boards are packed with ESD protections into shipping tubes, trays, or tapes and forwarded to customers worldwide.

Table summarizing mini-MELF board composition

Applications of mini-MELF boards

Here are some typical applications leveraging mini-MELF boards across consumer, computing and industrial products:

Power supplies

Mini-MELF diode boards produce clean, regulated DC voltages from noisy AC power for almost every electronic product. Bridge rectifiers, snubbers, shunt regulators are very common.

Voltage shifters

Shifting between mismatched voltage standards like 1.8V to 3.3V logic translation using diode dividers reduces complexity in computing/embedded systems with multiple I/O voltages.

ESD protection

Protecting sensitive microprocessor, PC, mobile and portable electronics from static and ESD strikes using mini-MELF diode arrays prevents field failures and increases product service life.

Overcurrent protection

Preventing current overloads from damaging lithium batteries, USB ports, motors, and other high power electronics with mini-MELF current limiters improves safety and long term reliability.

RF/Microwave systems

Diode limiters protect radar receivers from transmit/receive leakage. PIN modulator/demodulator diodes facilitate signal modulation. Voltage variable capacitors enable electrical tuning of filters and matching networks.

HVAC/Refrigeration

Snubber boards with R/C filters enable efficient and quiet variable speed motor drives for airflow/temperature control. Diodes rectify current for valve/damper actuators.

Solid state lighting

LED lamp drivers use mini-MELF capacitor charger boards to provide constant current regulation despite variable supply voltages for uniform LED illumination.

Applications leveraging mini-MELF boards

Future trends for mini-MELF boards

Several emerging trends promise to expand adoption of mini-MELF boards across wider applications:

Higher current ratings

Newer mini-MELF diode families with current ratings exceeding 1A allow implementation of high current flyback and boost converters for USB PD and compact motor drives.

Higher temperature ratings

Expanded operating junction temperature ranges to 175°C enables deployment closer to heat sources like LEDs and motors previously inaccessible to MELF boards.

Higher density interconnections

Finer trace widths and pitches using modified semi-additive processes allows greater interconnect density approaching integrated circuits for tighter component packing.

Embedded magnetics

Printed/embedded air core inductors and transformers integrated into MELF PCBs eliminate bulky discrete magnetics, transforming passive board area into active functionality.

###Press-fit pins

Plated pin-in-paste or press-fit pins will transform mini-MELF boards into pluggable sub-assemblies for quick installation similar to DIP ICs.

Summary

In summary, mini-MELF boards featuring arrays of minute surface mount MELF package diodes provide space saving, low profile, and performance benefits compared to traditional thru hole diode boards. With automated assembly methods they enable extremely compact yet highly functional diode circuit blocks ideal for advanced PCB designs in cutting edge electronics.

Frequently Asked Questions

Here are some common questions about mini-MELF diode boards:

What are some key benefits of mini-MELF boards?

Some benefits include extreme space savings from small size, low component height profile, improved high frequency performance from shorter internal leads, better reliability from fewer solder joints, and ease of automated assembly.

What are some typical diode types used on mini-MELF boards?

Common diode types are small signal switching diodes like 1N4148, power rectifiers like 1N4007, Zener voltage regulators like BZX84Cxx, Schottky rectifiers like 1N5817, and transient suppressors like SM712.

What are some example applications of mini-MELF diode boards?

Typical applications include AC/DC converter power supplies, voltage translators for logic level shifting, overcurrent/overvoltage protection circuits, ESD protection of electronics, RF signal processing, LED drivers, motor drives, and refrigeration systems.

What emerging technologies may expand mini-MELF adoption?

Trends like higher current/temperature rated diode families, increased interconnect density approaching ICs, printed embedded magnetics, and press-fit pins for pluggable assemblies will spread implementations across more applications.

What are common substrate materials for mini-MELF boards?

Most boards use the standard FR4 glass epoxy. Some special cases may utilize flexible PCB films, ceramic substrates for microwave boards, and metal core boards for high power density.

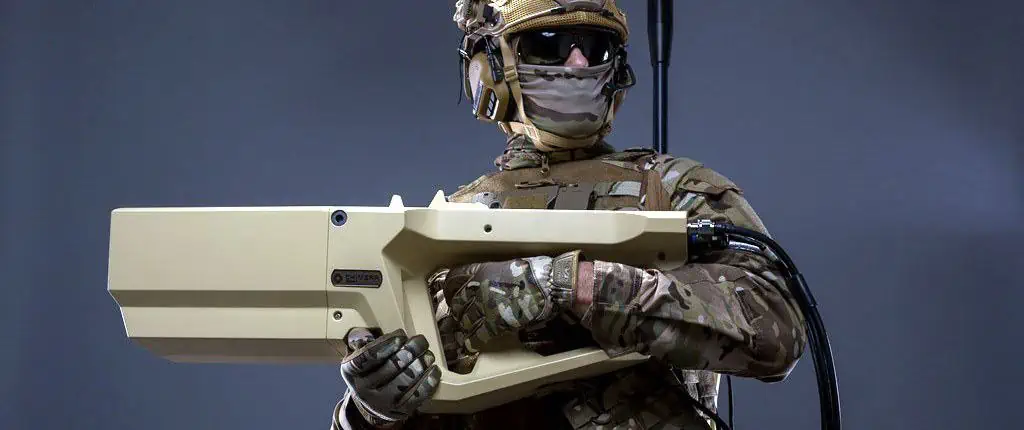

The proliferation of increasingly sophisticated commercial and DIY drones poses growing threats whether from careless recreational users, corporate espionage or even terrorists utilizing their potential for surveillance and violence. This has driven needs to detect drone presence and stop their operation when required through counter unmanned aerial systems.

Numerous detection and mitigation technologies have emerged leveraging radar, RF communications, infrared emissions, visual tracking and other signals coming from drones or their control links. These aim to localize drone position, classify their type, disrupt control channels and safely neutralize them through capture techniques.

This article explores the best current counter-drone systems capable of enforcing no-fly zones to restrict unauthorized unmanned flights through areas like airports, public spaces, military sites, prisons and critical infrastructure.

Overview of Counter-Drone Technologies

Counter-drone tools utilize a variety of sensing and disruption principles:

Detection Technologies

• Radar – Detects drone presence through reflection of radio waves
• RF Scanners – Analyzes communication signals used to control drones
• Acoustics – Identifies sound signatures from drone propulsion systems
• Infrared Cameras – Visualizes heat emitted from drone bodies
• Regular Visual Cameras – Optically tracks drones in day or night

Mitigation Technologies

• GPS/GLONASS Jamming – Blocks satellite navigation signals drones rely on
• Drone Command Jamming – Interrupts control channels hijacking or confusing drone navigation
• Spoofing – Takes over drone command links to steer them safely away
• Laser Neutralization – Shoots a drone with a laser to burn through critical components
• Projectile Neutralization – Physically bringing down a drone with a projectile
• Capturing Interceptors – Deploys a net or intercept drone that captures target drone

The optimal set of technologies in an integrated counter-drone system depends on budget, regulatory limits in operating environment, airspace characteristics and types of drone threats expected.

Below we explore 10 leading systems deployment across both military and commercial domains utilizing combinations of these detection and disruption approaches.

Top 10 Counter Drone Systems

1. Fortem DroneHunter

Platform: Autonomous intercept quadcopter drone designed to capture nuisance drones in flight using a net
Key Features:

• Autonomous pursuit, interception and capture of target drones
• Onboard radar for detection up to 1 mile range
• Machine vision camera for positive identification of targets
• Up to 30 minute flight time for persistent patrol
• Kevlar tether allows capture and retrieval from height
• Radar tracker unit provides drone tracking data

Its small, nimble airframe allows matching evasive maneuvers of modern agile drones. Has seen operational deployments at major events and sites to provide 24/7 protection.

2. Dedrone DroneTracker

Platform: Ground based sensors and analysis hardware/software suite
Key Features:

• Dual passive RF and optical sensors detect drones from 400m distance
• Directional antennas precisely track drone location
• Drone forensic analysis distinguishes drone brands
• Activity alerts and visualization on desktop or mobile app
• Cloud database analysis of extensive drone acoustic signatures

A comprehensive system that integrates multiple detection technologies with extensive database analytics for identifying known consumer drone types from unique acoustic fingerprints.

3. Squarehead RFMicrowave Early Warning System

Platform: Network of ground-based sensor units with central monitoring
Key Features:

• Passive electronic support measures (ESM) sensors
• Frequency Range: 100Mhz to 6Ghz
• Omni and directional antennas for precision tracking
• Detection range up to 6km for small drones
• Machine learning classification of commercial UAVs
• Central monitoring station with threat visualization

Monitors RF environment for drone controlling signals then classifies threats using signal analysts or learned fingerprinting data on commercial UAV types. Ideal for early perimeter monitoring integrated with active countermeasures.

4. Aaronia IsoLOG 3D

Platform: X-band microwave direction finder with mapping
Key Features:

• 7.5 to 8.5 Ghz frequency range
• 6x high-precision stepped antenna
• Automated mapping of drone flight paths
• RF source localization to within 5 degrees azimuth
• Operates while stationary or during vehicle motion
• Laptop-based monitoring and recording

Specialized high-resolution direction and location tracking of drone control links utilizing their X-band satcom frequencies. Valuable as part of layered defense for confirmation of threats detected by other sensors.

5. Department 13 Mesmer®

Platform: Handheld or tripod-mounted anti-drone rifle form factor
Key Features:

• Drone radio signal detector, classifier and direction finder
• GPS and standard drone control link jammers
• Mesh network with central monitoring capabilities
• Optional anti-drone net launcher add-on
• Rugged configurable modular hardware
• Intuitive gaming technology inspired interface

A flexible integrated electronic attack, tracking and optionally kinetic interceptor counter-drone rifle configurable to operational needs. Designed for rapid familiarization by users. Compact form ideal for mobile vehicle patrols.

6. SRC’s Silent Archer®

Platform: Containerized mobile drone defeater system
Key Features:

• Open source software architecture
• Multi-mission single/dual axis radars
• Multi-spectral sensor fusion trackers
• AI classification and identification
• Directional RF inhibitors for selective interference
• System integration services provided

A versatile COUNTER UAS system built on proven high performance sensors tailored around customer use cases using modular hardware and software integration. SRC focus on rapid technology refresh, open standards and AI-based autonomy.

7. Blighter® A400 Series Air Security Radar

Platform: Software-defined Doppler radar optimized for drone detection
Key Features:

• Electronically scanning (eScan) phased array antennas
• Multiple radar sensor options from S-band up to Ku-band
• Detection optimized algorithms geared for drones
• Discriminates birds and other clutter targets from drones
• Output data integration into customer command and control equipment
• Rugged enclosure options : Fixed site , maritime, mobile, man-portable

Specialist high resolution drone tracking radar leveraging Blighter Surveillance Systems experience in advanced security radar systems. Provides early detection and tracking even in cluttered environments.

8. Kelvin Hughes Sharpeye Mobile Radar System

Platform: Mobile solid state Doppler radar on tactical military vehicle
Key Features:

• SharpEye I-Band solid-state radar sensor
• 90kW power supports 10km+ small drone detection range
• Fully network-enabled for remote operation
• Missioncritical vehicle with high off-road mobility
• Operation independent of local infrastructure
• All environment performance from arctic to desert

A battle-proven mobile radar integrated on high mobility truck specialized for force protection roles. Well suited for expeditionary military operations requiring on-the-move counter-drone surveillance.

9. Dynetics G-RFI

Platform: Ground-based Responsive Field Intelligence (RFI) system
Key Features:

• Podded radar sensors tailored to size, weight and power constraints
• Open scalable architecture supports range of sensors
• Field-proven command and control solutions
• Real-time data for actionable intelligence
• Standard and customized system configurations
• Domain expertise in rapid prototyping and development

Brings together flexible radar options with proven multi-intelligence analytics and command capabilities tailored to operational constraints backed by extensive expertise.

10. Robin Radar Systems Robotronic

Platform: Mobile robot for autonomous drone detection and radar visualization
Key Features:

• 19GHz band vertically scanning radar
• Radar detection range up to 3000ft
• Onboard analysis for drone detection
• Autonomous patrolling and stopping behaviors
• 4 hour battery powered operation
• Radar imagery and tracks displayed on tablet or sent remotely

A versatile mobile drone detecting radar tripod or robot leveraging commercial radar hardware combined with smart robotic behaviors. Streamlines deploying radar sensors while adding autonomous behaviors.

This sample of leading counter-drone systems capturing some portion of detection technologies available combined with drone-specific tailored analysis, while also offering options for disrupting control channels. The optimal combination varies depending on if the priority is covert detection, positive target identification or active neutralization. But layered solutions combining multiple approaches are widely recognized as necessary given quickly evolving consumer drone threats.

Recommended System Design Considerations

While individual technologies have their benefits, optimal counter-drone protections require:

Detection Layering

No single detection mechanism reliably catches all drone types and situations. A layered combination of radar, RF scanning, infrared, acoustic and visual monitoring is recommended covering different sensing aspects.

Automated Classification

Integrating drone command language fingerprinting, RF signal analysis, acoustic database matching and visual shape recognition to automatically classify commercial drones helps identify threats.

Kinetic and Non-Kinetic Neutralization

Having both signal jamming capabilities as well as physical intercept mechanisms creates flexibility in responses balancing safety, collateral constraints and hostile intent.

Central Monitoring and Alerting

Networking distributed sensors tied to a command center with systems for threat visualization, notifications and response coordination is key to leveraging data.

Agile Development

Counter-drone technology in all domains requires continuous evolutions to match the commercial drone market’s rapid advances. Open architectures, regular upgrades and new capability integration is key.

No single vendor provides capabilities across all these areas presently. But the market offers building blocks to create customized systems tailored to unique risk, airspace and response requirements. Prior threat modeling, constraints analysis and lifecycle support considerations are vital in harnessing the full scope of counter-drone technological options available.

Frequently Asked Questions (FAQs)

Why not just shoot drones down?

Kinetic options like firing a gun or missile seem the most direct way of downing a drone. However their steep cost per engagement alongside safety, collateral damage and regulatory issues makes them impractical in most civilian contexts. Non-kinetic options like signal jamming offer flexible low collateral ways of disabling drones in complex environments. But they may fail against hardened autonomous drones, necessitating projectile based options as a last resort, despite their risks.

How can I stop a drone from spying on me?

Small camera drones make it easy to violate privacy. Detecting drone presence using acoustic detectors or luminescence sensors tied to camera shutting window blinds, notification systems or even signal blocking offer technical means for limiting personal intrusions. Though legal restrictions on jamming signals make it complex mitigating casual privacy violations by consumer drones.

Are counter drone devices legal to use?

Radio jamming equipment that can disable drones have serious implications for unintended disruptions of communications or safety critical systems. As such their sale and use are regulated by government agencies like the FCC, differs between countries and typically limited only to approved defense, security and law enforcement entities with licenses. Individuals looking to employ active countermeasures have to ensure strict compliance with regulations covering signal blocking devices.

Can drones be weaponized for terrorist attacks?

Arming lightweight hobbyist drones with improvised explosives or weapons remains technically challenging to achieve reliable targeting, though not impossible. However history shows human actors can turn almost any technology to violent means if motivated where regulation fails. Counter-terrorism risk mitigation thus requires broad policy spanning recreational device controls, procurement oversight and explosive material restrictions in addition to strict site protections – combining legal deterrents with layered detection technologies.

What is the difference between military and commercial counter drone systems?

Military counter drone tools like vehicle mounted jammers or interceptor drones place emphasis on mobility for expeditionary roles besides higher output power for extended disruption range without constraint. In contrast commercial systems tend to be static installations with restrictions on signal emission levels given legal oversight. But advanced AI analytics identifying drone brands has become a common driver in maturing commercial offerings focused on early alerts. Military development does leverage rapid commercial progress in sensors, while retaining specialization like hardening drone command links against encryption.

Conclusion

Lightweight drones with increasing range, autonomy and accessibility pose growing challenges from inadvertent threats to intentional attacks across both civilian and military domains not adequately addressed by legacy solutions. Their unique flight and control characteristics necessitate specialized detection technologies and mitigation measures with carefully calibrated responses. As incidents continue rising globally, sophisticated counter drone systems integrating layered sensors, advanced analytics and kinetic/non-kinetic neutralization offer flexible tools for suitably trained operators to balance situational constraints and risks. But beyond simply equipping security forces, long term governance building regulatory oversight, promotingResponsible operating practices and maturing technologies ultimately underpins successfully ensuring airspace safety amidst democratization of unmanned flight.

An unmanned combat aerial vehicle (UCAV), also known as a combat drone, is an unmanned aerial vehicle (UAV) that is armed and used for intelligence, surveillance, target acquisition, and reconnaissance as well as attack missions. UCAVs are capable of carrying precision-guided munitions, air-to-air missiles, and other weapons payloads.

UCAVs provide a number of potential advantages over manned aircraft:

• They can undertake dangerous missions without putting a human pilot at risk
• They can maneuver extremely well because they don’t have to accommodate a human pilot
• They can stay aloft for very long durations, far longer than is possible with manned aircraft
• Their payloads can be specialized for attack, surveillance or reconnaissance missions

Some of the best known UCAV platforms include:

Key UCAV systems

UCAVs have seen significant use in conflicts in the 21st century. They have been used extensively by the United States in war theaters like Iraq, Afghanistan, Pakistan, Yemen and Somalia for reconnaissance and targeted strikes. Other nations like Israel, China, Iran, Turkey and India are also developing UCAV capabilities indigenously. Military use of armed UAVs remains controversial with disputes around their legal status, morality of using autonomous attack systems, and potential for unintended engagement of civilian targets.

UCAV Design Considerations

The design of UCAVs shares similarities with manned attack aircraft but has additional considerations unique to their unmanned nature and mission profiles:

Airframe

• Aerodynamic efficiency – Long loiter times require efficient cruise flight which influences wing and airframe design
• Structural strength – Airframe must handle maneuvering stresses and payload weights over full unmanned mission duration
• Low observability – Radar evading stealth shapes and non-metallic materials are used on some UCAVs
• Corrosion resistance – Ability to operate with minimal maintenance over months or years
• Icing resistance – UCAVs have to fly through cold weather and deal with inflight icing

Propulsion

• Fuel efficiency – To achieve long endurance, turbofan or turboprop engines preferred
• Reliability – Engine-out capability needed for long flights over inhospitable terrain
• Low IR signature – Cooling infrared emissions helps avoid detection
• Noise reduction – Stealth requires dampening engine noise

Payload

• Weapons – Missiles, bombs and other munitions compatible with purpose and size
• Sensors – Electro-optical, infrared, synthetic aperture radar for surveillance and targeting
• Communications – Robust satellite and line-of-sight datalinks with encryption
• Computing – Onboard computers for controlling vehicle, mission systems and payloads

Control Systems

• Autopilot – Allows fully autonomous stabilized flight without pilot input
• Navigation – GPS, inertial systems and terrain mapping for accurate positioning
• Collision avoidance – Detect and maneuver to avoid other aircraft or terrain
• Target recognition – Distinguish targets and restrict weapon release to valid ones
• Health monitoring – Identify and respond to system failures and battle damage

The exact combination of capabilities depends on the operating environment, range, endurance, mission profile and other requirements dictated by military needs and budgets.

History of UCAV Development

Unmanned aerial combat vehicles trace their history back to early target drones and remotely operated vehicles used for training and weapons testing purposes:

Early Target Drones

• 1935 – First radio controlled aerial targets developed by UK
• 1946 – US Navy TDN-1 assault drone carries 2,000 lbs of explosives
• 1964 – Ryan Firebee jet-powered target drone enters wide use

These subscale target drones validated the concept of unmanned remote controlled flight. But they lacked sophistication as they were not designed as combat aerial vehicles.

Early UAV Experiments

• 1964 – US Navy develops jet powered QH-50C helicopter UAV
• 1973 – Israel pioneers real-time surveillance small UAVs after the Yom Kippur war
• 1982 – Israel uses UAVs successfully for reconnaissance and electronic warfare in the Lebanon war

These early efforts established the viability of unmanned vehicles for battlefield support roles. But it took until the 1990s before UCAV prototypes started taking shape.

Emergence of UCAVs

• 1994 – General Atomics Predator UAV designed for reconnaissance
• 2001 – Predator equipped with Hellfire missiles for strikes in Afghanistan
• 2006 – Northrop Grumman flies jet powered, low observable demonstrator
• 2018 – Major militaries commit to UCAV acquisition and development

After the watershed introduction of the armed Predator, many other UCAV designs have emerged alongside steadily improving technology demonstrations. A number of operational platforms are now deployed and new variants continue to evolve driven by military interests in exploiting unmanned technologies.

UCAV Operations and Control

UCAVs require specialized systems for control, planning missions, autonomous operation and integrating them into broader military operations:

Ground Control Stations

Dedicated ground stations with control consoles for UCAV operators provide:

• Mission planning systems
• Uplink for control, navigation and systems commands
• Downlink of sensor and status data from UCAV
• Display and analysis of reconnaissance information

Some stations are transportable for deployment at forward locations near operational areas. High bandwidth satellite communication links are typically used for reaching widely deployed UCAVs.

Semi-Autonomous Operation

Once launched on a mission, UCAVs have varying levels of autonomous capabilities:

• Automatic take-off and landing over pre-programmed routes
• Transition between loitering and transit flight modes
• Execution of search patterns and orbit points autonomously
• Return to base on command or if systems/communications fail

Higher level decisions like target identification and weapon release authorization may require human operator analysis of sensor feeds.

Mission Control Integration

Within larger military networks, UCAV operations require:

• Airspace deconfliction with manned aircraft traffic
• Integration with ground forces mission command networks
• Sensor and targeting data fusion across multiple domains
• Battle damage assessment after strikes

Effective coordination between multiple UCAV sorties and other fighting units is essential for fully leveraging their ISR and strike capabilities.

Managing and exploiting the volume of manned and unmanned airborne assets available to forces will require increasing levels of automation. But ultimate control by human commanders is likely to remain to oversee weapon employment decisions.

Design of Specific UCAV Platforms

Several operational and demonstrator UCAV platforms showcase a variety of aerodynamic, structural and systems designs tailored to performance requirements:

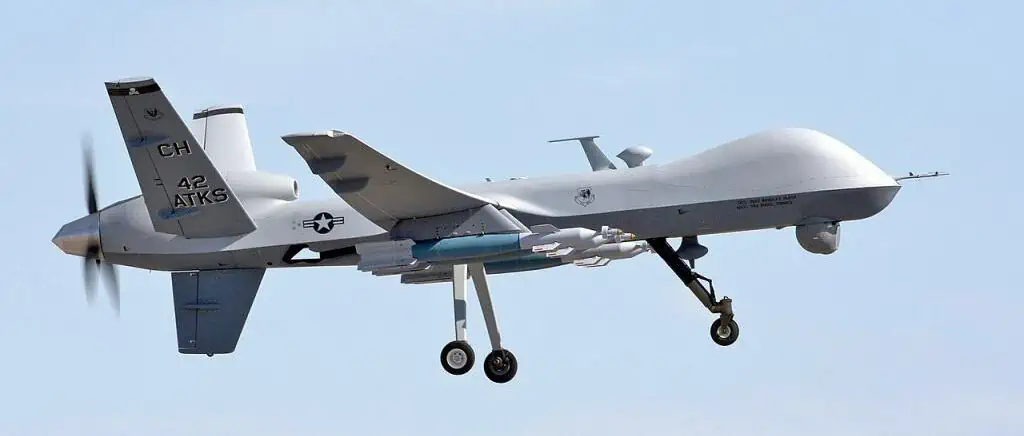

MQ-9 Reaper

Design features:

• Turboprop propulsion for efficient long endurance
• Capable of carrying mix of AGM-114 Hellfire missiles and GBU laser guided bombs
• Range of 1100 nmi with 14 hour endurance
• Satellite data link allows transcontinental operation
• 49 foot wingspan with 800 lbs max payload weight

A medium altitude, medium endurance UCAV that can be deployed globally. Well suited for counterinsurgency operations.

BAE Taranis

Design features highlight future combat drone capabilities:

• Jet engine integrated with body for stealth
• Internal weapons carriage without protrusions
• Flying wing shape for low radar observability
• ‘Smart skin’ adaptable radar absorbing materials
• Testing semi-autonomous flight, decision making and weapons guidance

Intended to demonstrate advanced UCAV technologies like low observability combined with combat autonomy.

Skat

Russian UCAV prototype highlights different design priorities:

• Wide variety of munition types – missiles, rockets, bombs
• Focus on high maneuverability attack profiles
• Runway independent vertical takeoff capability
• Use of Russian GLONASS satnav instead of GPS

Emphasizes short range tactical strike missions without reliance on fixed bases.

These examples illustrate how factors like endurance, stealth and autonomy are emphasized differently based on operational contexts and technological capabilities. Tradeoffs between payload, range and performance continue to drive iterative UCAV development.

Trends and Future Outlook

UCAVs have proven extremely capable when deployed in permissive environments and against technologically limited opponents. But they have some inherent limitations:

Limitations

• Restricted situational awareness compared to human piloted aircraft
• Vulnerable to signal jamming that break control links
• Inability to fully match reasoning of human subjects for weapon authorization decisions

Emerging Capabilities

• Increasing autonomy of flight controls, mission planning systems
• Onboard sense-and-avoid systems for dealing with other traffic
• Hardening against GPS and datalink jamming
• Improved airframe designs for greater payloads, range and stealth

These technology trends will help mitigate limitations while lack of human presence also creates opportunities:

• Persistence and risk tolerance for extremely long duration flights
• Algorithmic data analysis instead of human sensory perception
• Coordination of large autonomous teams acting as a swarm collective

The future of unmanned combat aerial vehicles promises continued innovation in autonomous behaviors, networking and artificial intelligence. Militaries are also investigating potential uses beyond conventional weapons – high power lasers, electronic attack, cyber warfare, swarming kamikaze drones etc. Strategic, ethical and doctrinal debates will co-evolve with technological capabilities while unmanned platforms get ever more deeply integrated across the entire spectrum of military conflict.

Frequently Asked Questions on UCAVs

What weapons can UCAVs carry?

UCAVs are capable of carrying a wide variety of guided missiles and bombs weighing from a few kilograms to over a ton. They allow the same precision munition types used by manned fighter jets and bombers to be delivered more persistently via unmanned platforms.

Do UCAVs lead to less civilian deaths in strikes?

Proponents argue that UCAVs with the ability to loiter for long hours over targets can choose exactly when to strike in order to minimize collateral damage. However others counter that over-reliance on remote sensor feeds leads to misidentifying targets resulting in unwanted civilian deaths from strikes. The link between fewer civilian casualties and UCAVs is thus debated and situation dependent.

Could terrorists get access UCAV technologies?

There are concerns that state manufactured UCAV systems could proliferate among non-state groups via theft, capture or illicit transfers the way other conventional weapons have spread in the past. However advanced UCAVs have extensive supporting infrastructure requirements for mission planning, control and sensor analysis that makes it difficult for non-state actors to weaponize captured vehicles effectively.

Are combat drones legal?

The legal status of armed unmanned aircraft under international laws of war remains under active discussion by policy makers and academics. Key considerations include adherence to principles of military necessity, proportionality and distinction between combatants and civilians. Individual UCAV strikes have to assessed contextually based on laws governing broader warfare.

How long until fully autonomous lethal UCAVs become a reality?

Most existing UCAV models require a human ‘in-the-loop’ at least for final authorization of lethal actions, if not directly piloting it. But growing autonomy of behaviors like independent takeoff/landing, navigation, target identification etc alongside progress in AI is leading to calls for eventual supervisory control or more extensive autonomy. Lethal authority is thus likely to gradually shift from full human control to human/machine collaboration based on technology developments meeting operational and regulatory approval. But a definitive transition point is difficult to forecast presently.

Conclusion

Unmanned combat aerial vehicles have emerged as a transformative platform that offers novel reconnaissance-strike capabilities compared to manned aircraft or missiles alone. Though early UCAVs focused on surveillance missions, their ability to carry precision armaments revolutionized counterinsurgency and cross-border targeting operations. Rapidly improving technologies and military interest promises UCAVs will continue seeing heavy investments and become integral to how battles are fought using both conventional payloads and more exotic arsenals. But they also face growing debate around ethical, proliferation and policy concerns emerging from their autonomous lethal potential which have to be weighed against strategic advantages offered. Regardless, unmanned combat aerial vehicles seem set to provide expanded tools for political violence in the 21st century through persistent, risk-tolerant machines serving the complex goals of the nations fielding them.
